Chiayo Stage Pro Operation Manual

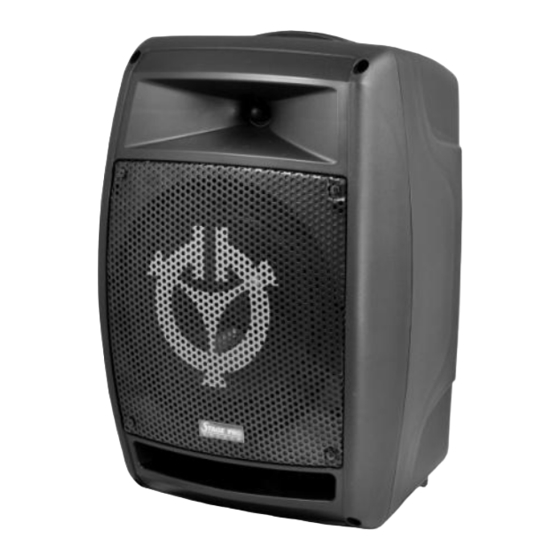

Professional wireless portable mixer amplifier
Hide thumbs Also See for Stage Pro:

Advertisement

Quick Links

Download this manual
Professional Wireless Portable Mixer Amplifier
Operation manual
ISO 9001:2008
GREEN PRODUCT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stage Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chiayo Stage Pro

Summary of Contents for Chiayo Stage Pro

  • Page 1 Professional Wireless Portable Mixer Amplifier Operation manual ISO 9001:2008 GREEN PRODUCT...
  • Page 2 Congratulations and thank you for purchasing this all-in-one portable sound system. To ensure a trouble-free operation, please read the manual thoroughly to fully understand its controls and functions. All the above versions can be installed with up to 4 receiver modules, among which one can be transmitter module or MP3 module.
  • Page 3 Parts and functions on StagePRO control panel 1. Mic in #1 2. Mic #1 volume control 3. Mic in #2 4. Mic #2 volume control 5. Mic tone control (Treble/Bass) 6. Reverb volume control 7. Reverb on/off 8. Instrument in #1 9.
  • Page 4 Parts and functions on StageMAN control panel 1. Mic in #1 2. Mic #1 volume control 3. Mic in #2 4. Mic #2 volume control 5. Line in (6.3mm) 6. Line in volume control 7. Master tone control (Treble, Bass) 8.
  • Page 5 Starting to operate StagePRO/StageMAN/StageSLAVE First of all, please charge for at least 4~6 hours because the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to the shipment. To operate this portable sound unit, please switch on the main POWER switch.
  • Page 6 Limiter Function There’s an interior anti-overload circuit to protect the amplifier from being damaged due to over volume output, this design will automatically lower the output when it goes over the limit. Various audio outputs Active out: The StagePRO/StageMAN could be operated as the MASTER unit in an audio link system.
  • Page 7 Once the power volume on the transmitter is too low, the LED indicator (4) on this panel grow will grow to remind. Frequency scanning It is the automatic scan function key. To perform the scan function, the transmitter must be switched off.
  • Page 8 1. LCD display 2. Short press to return to previous track, long press to fast reverse. 3. Short press to play/pause, long press to switch USB/SD. 4. Short press to go to next track, long press to fast forward. 5. Press to return to previous folder. 6.
  • Page 9 Operating the CD player Parts and functions 1 2 3 4 5 11 1. LCD display 6. CD selector 11. Power/volume control 2. Play/pause 7. USB selector 3. Stop 8. Folder skip 4. Skip 9. IR led 5. Eject 10. USB input 6 7 8 9 10 Keys Functions...

  • Page 10: Play Mode

    Skip the playing file to the next folder’s first file. FOLDER-DOWN In stop mode: Skip the starting play folder to previous folder during stop mode, cyclic to the last folder if it is in the first folder. In program entry mode: Change the file for program select to previous folder’s first file, cyclic to the last folder if it is in the first folder.
  • Page 11 Operating the Digital recorder player Parts and functions 18 19 6 5 4 3 2 1 11 10 9 8 7 17 16 15 14 1. Play/Pause 8. Program/Repeat 15. Copy 2. Stop 9. Forward 16. Record 3. SD/USB selector 10.
  • Page 12 Press FOLDER button, LCD screen display F, then REW or F. FWD button with the numbers 0 to 9 button to select the directory . Double-click the Cancel catalog select, LCD screen, "F" disappears -Recording quality adjustment: Press FOLDER button more than 3 seconds can choose the recording quality.
  • Page 13 -Copy function is copying without folder. For example, if wants to copy each 5 tracks in 3 folders (total 15 tracks) and there will be storage to CPY001 ~ CPY015 at the CPY folder after copying. If copy a new song after it, it will be storage at CPY016. A↔...
  • Page 14 ■IR sensor: Infrared remote control eye. ■DEL: Delete single/folder/all of the files. Delete current playing track, can be operated under “Stop” mode or during “Playing” mode Press DEL button, LCD displays flash DEL FILE, reminding you to delete the file, and then press DEL to confirm the deletion, LCD display shows DEL END.
  • Page 15 The remote controller shall be appointed to the receiving hole of face plate. The optimal receiving distance is 3 meters. ( the available distance is 3 meters. ) The batteries ( model CR2025 3V ) shall be put into the remote controller. ■Numeral 0 ~ 9 : Select the track from numerals.
  • Page 16 ■REP: Repeat function : Need to operate in the playing mode - Press once, LCD screen displays "REP", will repeatedly playback currently playing track. - Press twice, LCD screen displays "REP F", will repeat the entire directory is currently being played - Press 3rd times, LCD screen displays "REP ALL", will be repeated play all tracks.
  • Page 17 ■RAN: Press to play the tracks in a random order. Press again to cancel. ■FOLDER: Folder selection key and adjust the recording quality - Select folder Press FOLDER button, LCD screen display F, then REW or F. FWD button with the numbers 0 to 9 button to select the directory .
  • Page 18 UHF handheld microphones Parts and functions SQ-1016/1016V (UHF 16-freq.) SQ-5016/6100/7100 (UHF LCD16/100/100-freq.) 10 11 9 Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 SQ-6100 SQ-7100 Cartridge Battery power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button...
  • Page 19 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number. The corresponding frequency will change accordingly. When a desired channel is selected, it will be automatically saved and stored in the memory.
  • Page 20 UHF beltpack microphones Parts and functions 12 13 14 15 SM-1016 SM-5016/7100 (UHF 16-Freq.) (UHF LCD 16/100-Freq.) Transmitter parts and functions SM-1016 SM-5016/SM-7100 Antenna Battery weak/audio mute indicator Power switch Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Lavalier microphone Setting button...
  • Page 21 Channel setting (SM-1016) Please use the attached small screw driver to set the channel. Gain control is an adjustable design that enables user to set different output levels. GT is for the use of instrument with high impedance, such as guitar while MT is for the use of low impedance such as lavalier or headset microphone.
  • Page 22 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 23 -22-...
  • Page 24 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611 12I1255...
