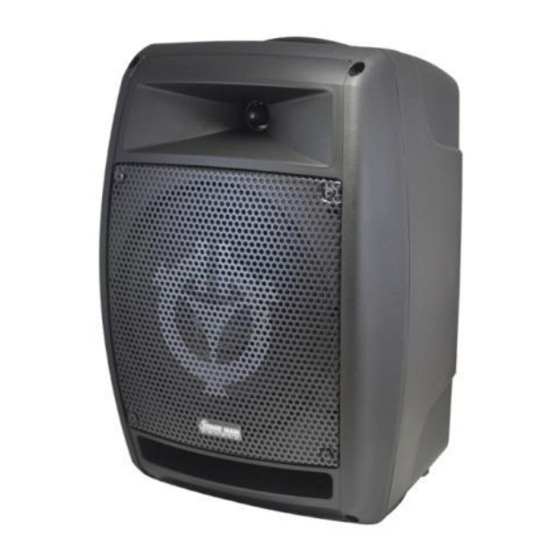

Chiayo STAGE MAN Operation Manual
Multifunctional wireless amplifier
Hide thumbs
Also See for STAGE MAN:
- Operation manual (28 pages) ,
- Operation manual (9 pages) ,
- Operation manual (20 pages)
Related Manuals for Chiayo STAGE MAN
Summary of Contents for Chiayo STAGE MAN
- Page 1 STAGE MAN Operation manual Multifunctional Wireless Amplifier CHIAYO ELECTRONICS CO.,LTD.
- Page 2 STAGE MAN Multifunctional Wireless Amplifier Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions Be sure to read the instructions in this section carefully before use.
-
Page 3: Optional Accessories
** Note: The above specifications are subject to change without prior notice. Optional accessories 1. Weather proof dust cover 2. Single trolley bag/Dual trolley case 3. Tripod stand 4. Companion passive speaker (external speaker for STAGE MAN) 5. Wired microphone... - Page 4 STAGE MAN Multifunctional Wireless Amplifier Parts and functions 1. Microphone/Line ① volume control 9. Voice priority switch 10. Line in socket (3.5mm) 2. Microphone/Line ① level switch 11. Line in volume control 3. Wired microphone/Line input socket ① 12. Treble tone control (for all audio) 4.
- Page 5 Instructions Using the wired microphone Plug a wired microphone with a 6.3mm or XLR connector to INPUT 1 or INPUT 2. Slide the switch to MIC level. Turn on master POWER and then adjust MIC volume control to desired level. Bass /Treble tone and reverb levels can be adjusted on EQUALIZER and EFFECT areas.
- Page 6 STAGE MAN Multifunctional Wireless Amplifier Using an electronic instrument Plug an electronic guitar or keyboard with a 6.3mm plug or XLR connector to INPUT 1 or INPUT 2. Slide the switch to LINE level. Turn on master POWER and then adjust LINE volume control to desired level.
- Page 7 Instructions Music audio input - MP3/MP4 Plug the audio cable with a 3.5mm phone plug to the 3.5mm jack (LINE IN). Turn on master POWER and then adjust LINE IN volume control to desired level. Bass /Treble tone and reverb levels can be adjusted on EQUALIZER and EFFECT areas.
- Page 8 STAGE MAN Multifunctional Wireless Amplifier Connecting an external speaker Plug the external speaker’s audio cable with a 6.3mm connector to the EXTERNAL SPEAKER socket. SPEAKER SPEAKER Turn on master POWER and then adjust EXTERNAL SPEAKER volume control to a desired level.
- Page 9 Background music will return to its original setting when no audio is detected from the microphone for a few seconds. Please Note: If the microphone is used within close proximity of the Stage Man speaker or other high level music playback the Voice Priority feature may be activated and lower the music level.
- Page 10 STAGE MAN Multifunctional Wireless Amplifier Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
- Page 11 Instructions...
- Page 12 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
