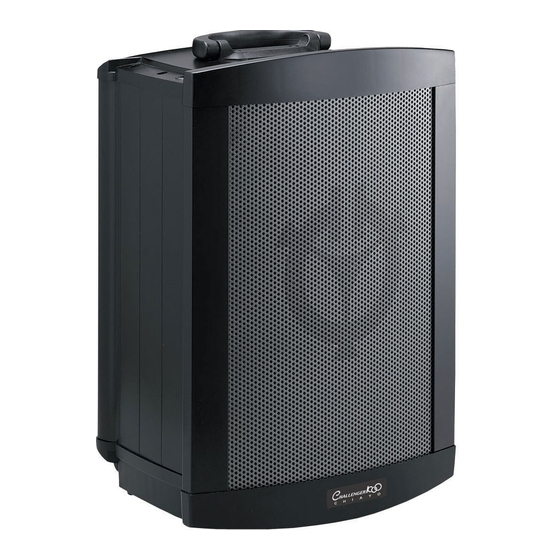

Chiayo CHALLENGER 1000 Operation Manual

Multifunctional wireless portable amplifier
Hide thumbs Also See for CHALLENGER 1000:

Advertisement

Quick Links

Download this manual See also: Operating Manual
CHALLENGER 1000

Operation manual

Multifunctional Wireless Portable Amplifier
CHIAYO ELECTRONICS CO.,LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHALLENGER 1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chiayo CHALLENGER 1000

Summary of Contents for Chiayo CHALLENGER 1000

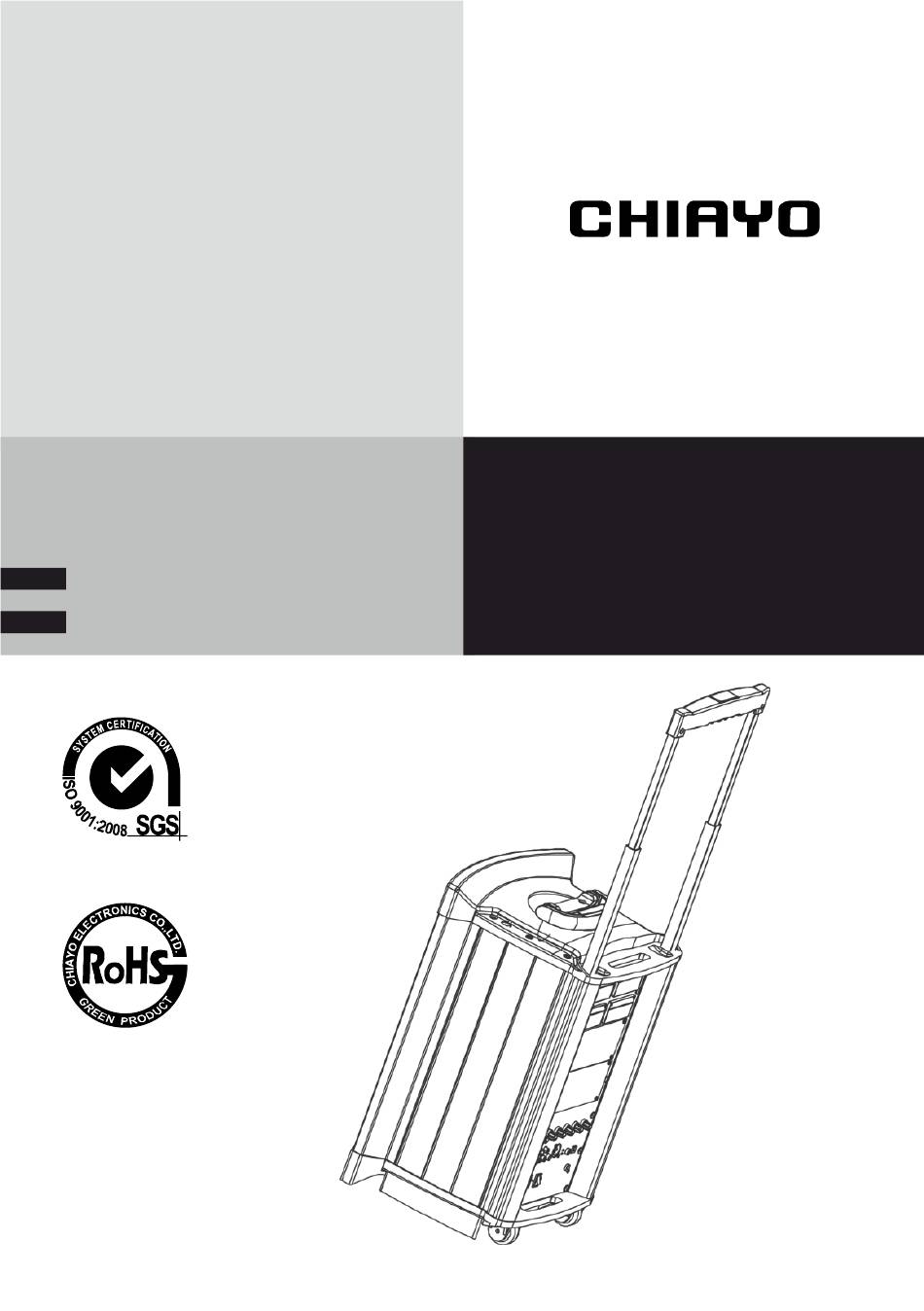

  • Page 1: Operation Manual

    CHALLENGER 1000 Operation manual Multifunctional Wireless Portable Amplifier CHIAYO ELECTRONICS CO.,LTD.
  • Page 2 CHALLENGER 1000 Multifunctional Wireless Portable Amplifier Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions  Be sure to read the instructions in this section carefully before use.
  • Page 3 The rear panel of these portable sound systems is divided into two sections: 1. The Module compartment 2. The Control Unit compartment In the box CHALLENGER 1000 amplifier 0~4 transmitters switching power supply (plug varies from country to country) (handheld/beltpack) operation manual ** Note: The above specifications are subject to change without prior notice.
  • Page 4 CHALLENGER 1000 Multifunctional Wireless Portable Amplifier Parts and functions of CHALLENGER 1000 1. Microphone volume control 10. Voice priority switch 2. Line in volume control 11. Audio link output 3. Tape/DVD power + volume control 12. Battery indicator 4. Tone control (Bass) 13.
  • Page 5 C-SLAVE is not muted 12. Charging indicator Charging the battery Internally, the amplifier contains two 12V/5AH maintenance-free lead acid batteries, which have no memory effect. CHALLENGER 1000  Battery low: BATTERY LOW LED turns RED  During recharging: CHARGING LED flashes RED ...
  • Page 6 CHALLENGER 1000 Multifunctional Wireless Portable Amplifier Using the wired microphone Plug a wired microphone with a 6.3mm or XLR connector to MIC IN. Turn on master POWER and then adjust MIC volume control to a desired level. Bass/Treble tone levels can be adjusted by individual controls.
  • Page 7 Instructions Music audio input- DVD player Plug the RCA R/L audio cable to the LINE IN jacks. Turn on master POWER and then adjust LINE volume control to a desired level. Bass/Treble tone levels can be adjusted by individual controls. TONE control...
  • Page 8 CHALLENGER 1000 Multifunctional Wireless Portable Amplifier Tone control For wired/wireless microphone(s) and music Operating Voice Priority Voice Priority operation is only necessary when CD/USB/MP3 is playing. When the Voice Priority switch is ON, the ducking function will be activated. While the music is playing, voice input from either a Wired or Wireless Microphone will temporarily override and lower the volume of the background music and speech will be heard more clearly.
  • Page 9 Instructions Operating active audio link CHALLENGER 1000 can be operated as the MASTER unit in a wired audio link configuration. Connect the ACTIVE OUT of the CHALLENGER 1000 to the ACTIVE IN of a companion active speaker C-SLAVE. The first C-SLAVE can be connected to the ACTIVE IN of the second C-SLAVE and so forth.
  • Page 10 CHALLENGER 1000 Multifunctional Wireless Portable Amplifier Connecting an external speaker from CHALLENGER 1000 Plug the external speaker’s audio cable with a 6.3mm connector to the speaker input socket of passive companion speaker C-SP or an 4~8Ω load speaker. The C-SP speaker can link to another C-SP.
  • Page 11 Instructions Connecting an external speaker from C-SLAVE Plug the external speaker’s audio cable with a 6.3mm connector to the speaker input socket of passive companion speaker C-SP or an 4~8Ω load speaker. The C-SP speaker can link to another C-SP. Two C-SP at max in each daisy link. There are two output jacks for external speakers.
  • Page 12 6. Warranty will be void if the battery is not charged for a prolonged period as it may lose all its charge and could never be recovered again. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜...
