Summary of Contents for Chiayo VICTORY 2000

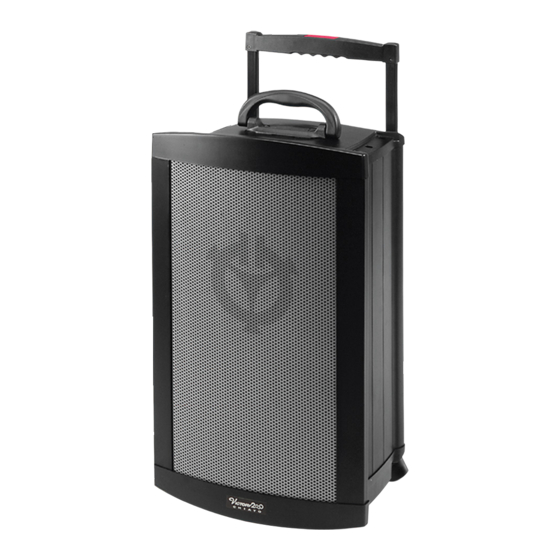

- Page 1 VICTORY 2000 Operation manual Multifunctional Wireless Portable Amplifier CHIAYO ELECTRONICS CO.,LTD.
- Page 2 VICTORY 2000 Multifunctional Wireless Portable Amplifier Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions Be sure to read the instructions in this section carefully before use.
- Page 3 The rear panel of these portable sound systems is divided into 2 sections: 1. The Module compartment 2. The Control Unit compartment In the box VICTORY 2000 amplifier 0~4 transmitters switching power supply (plug varies from country to country) (handheld/beltpack) operation manual ** Note: The above specifications are subject to change without prior notice.
- Page 4 VICTORY 2000 Multifunctional Wireless Portable Amplifier Parts and functions of VICTORY 2000 ① 1. Microphone input ① 2. Microphone volume control ① 3. SPEECH/MUSIC selector ② 4. SPEECH/MUSIC selector ② 5. Microphone input ② 6. Microphone volume control 7. Line out socket (RCA R/L) 8.
- Page 5 11.Power switch 12.Charging indicator Charging the battery Internally, the amplifier contains two 12V/5AH maintenance-free lead acid batteries, which have no memory effect. VICTORY 2000 Battery low: BATTERY LOW LED turns RED During recharging: CHARGING LED flashes RED ...
- Page 6 VICTORY 2000 Multifunctional Wireless Portable Amplifier Using the wired microphone Plug a wired microphone with a 6.3mm or XLR connector to MIC 1 or MIC 2. The nearby SPEECH/MUSIC switch filters out low frequencies from an audio signal. In SPEECH mode, frequencies lower than 200 Hz will be removed, thus, unwanted bass noises won’t be heard.
- Page 7 Instructions Music audio input (e.g. DVD player Plug the RCA R/L audio cable to the LINE IN jacks. Turn on master POWER and then adjust LINE IN volume control to desired level. Bass/Treble tone levels can be adjusted by individual controls. TONE control...
- Page 8 VICTORY 2000 Multifunctional Wireless Portable Amplifier Tone control For music only. Operating Voice Priority Voice Priority operation is only necessary when CD/USB/MP3 is playing. When the Voice Priority switch is ON, the ducking function will be activated. While the music is playing, voice input from either a Wired or Wireless Microphone will temporarily override and lower the volume of the background music and speech will be heard more clearly.
- Page 9 Instructions Operating active audio link - VICTORY 2000 to V-SLAVE Connect the ACTIVE OUT of the VICTORY 2000 to the ACTIVE IN of a companion active speaker V-SLAVE. The first V-SLAVE could be connected to the ACTIVE IN of the second V-SLAVE and so forth.
- Page 10 Multifunctional Wireless Portable Amplifier Operating active audio link - VICTORY 2000 to VICTORY 2000 VICTORY 2000 can be operated as either the MASTER or SLAVE unit in a wired audio link configuration. Connect the ACTIVE OUT of the VICTORY 2000 to the ACTIVE IN of slave VICTORY 2000.
- Page 11 Instructions Connecting an external speaker from VICTORY 2000 / V-SLAVE Plug the external speaker’s audio cable with a 6.3mm connector to the speaker input socket of passive companion speaker V-SP or an 4~8Ω load speaker. The V-SP speaker can link to another V-SP. Two V-SP maximum in each daisy link.
- Page 12 6. Warranty will be void if the battery is not charged for a prolonged period as it may lose all its charge and could never be recovered again. CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜...
