- Page 1 MMA-3000 2.1-Channel Multimedia Mixer Amplifier Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT...

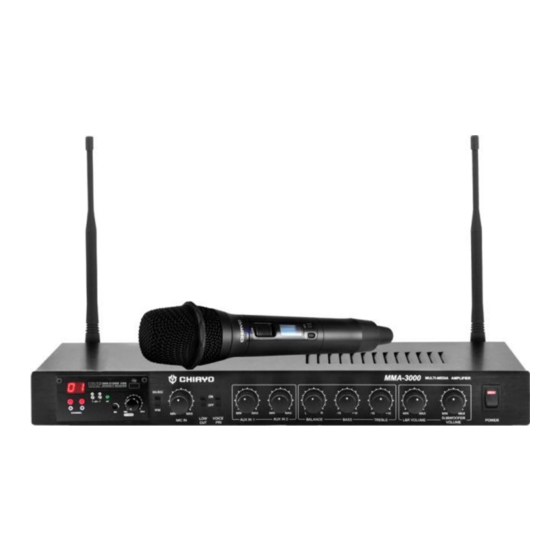

- Page 2 1. MMA-3000 multimedia mixer amplifier 2. 100-240V AC switching power supply 3. Operation manual MMA-3000 is a Multimedia Mixer Amplifier. It can accept multiple audio inputs from the following sources: 1. Wired and / or wireless microphone. 2. Digital player with USB / SD card MP3 3.
- Page 3 ○ installed at antenna sockets 14 and 32 .for a drop-out-free reception. MMA-3000 is a 2.1 channel multimedia mixer amplifier, its digital class-D amplifier can drive a stereo L / R speakers plus a subwoofer! Operating the WIRED MICROPHONE ○...
- Page 4 ○ ALD (Assistive Listening Device) OUTPUT For the benefit of hearing impaired audiences, MMA-3000 has an additional Ø 3.5mm ALD ○ output 25 which can be connected to an ALD amplifier or transmitter to send the mixed audio signal to whoever is wearing an ALD headphone.
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 SDR-5200M IrDA/SDR-5100M IrDA/SDR-5116M receiver modules 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area (SDR-5200M IrDA/SDR-5100M IrDA) 5. Channel Selector 6. IRDA synchronizing button (SDR-5200M IrDA/SDR-5100M IrDA) 7. Squelch control 8.
- Page 6 DPR-500M MP3 recorder player module 1. LCD display 2. Press to return to previous track, press and hold to fast reverse. 3. Press to play/pause. 4. Press to go to next track, press and hold to fast forward. 5. Press to record. 6.
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 6. LCD displays USB FULL or SD FULL when insufficient memory left. 7. LCD displays SD LOK if the SD is locked. 8. Don’t remove the USB/SD during the recording process in case the interrupted track might be damaged.
- Page 8 UHF handheld microphones（SQ-6100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA） SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Parts and functions SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area Charging port Battery installation &...
- Page 9 ISO 9001｜ISO 14001｜OHSAS 18001 3. To change the receiver’s channel, please press the synchronizing button of the microphone. The microphone will transmit synchronizing signal to the receiver and change its channel. 4. To change the microphone’s channel, please press the synchronizing button of the receiver. The receiver will transmit synchronizing signal to the microphone and change its channel.
- Page 10 UHF belt-pack transmitters（SM-7100 IrDA/SM-6100 IrDA/SM-1100 IrDA） 11 12 SM-7100 IrDA/SM-6100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT) Low-impedance gain control (MT) Battery compartment Audio mute switch Battery power LED...
- Page 11 ISO 9001｜ISO 14001｜OHSAS 18001 Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the microphone is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
- Page 12 UHF handheld microphones（SQ-1016/SQ-1016V/SQ-5016） SQ-1016/1016V (UHF 16-freq) SQ-5016 (UHF LCD 16-freq) Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 Cartridge Battery weak/power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button Charging port Volume control Battery installation &...
- Page 13 ISO 9001｜ISO 14001｜OHSAS 18001 Other settings (SQ-5016) 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number. The corresponding frequency will change accordingly. When a desired channel is selected, it will be automatically saved and stored in the memory.
- Page 14 UHF belt-pack transmitters（SM-1016/SM-5016） Parts and functions Transmitter parts and functions SM-1016 SM-5016 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button Down button Channel switch Gain control (GT, high impedance) Gain control (MT, low impedance)
- Page 15 ISO 9001｜ISO 14001｜OHSAS 18001 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
- Page 16 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611 12I1305...
