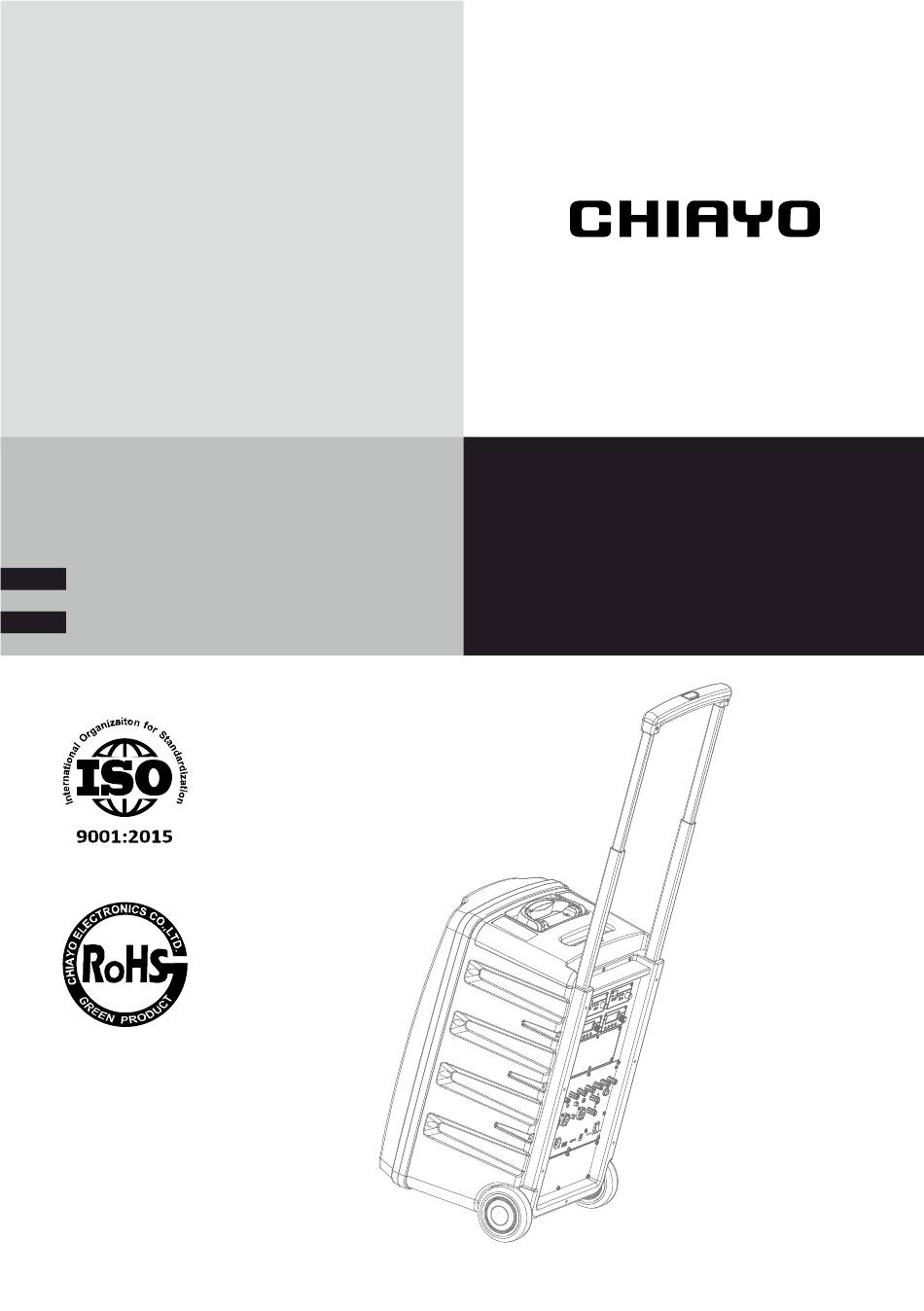

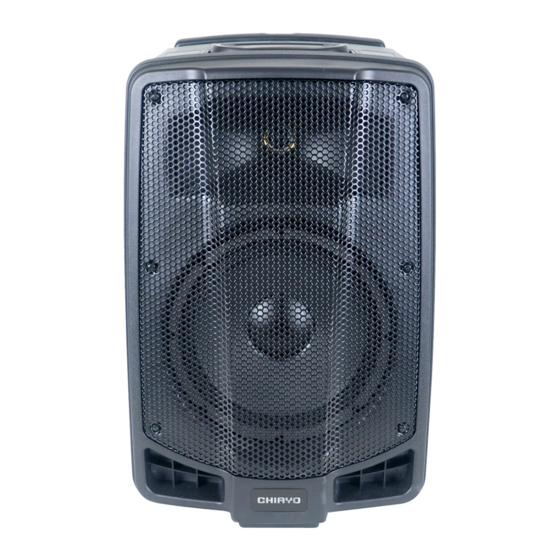

- Page 1 APEX PRO Operation manual Portable Wireless PA System CHIAYO ELECTRONICS CO., LTD.
- Page 2 ⚫ Use only manufacturer authorized or recommended accessories. ⚫ Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful when using a cart to avoid injury from tip-over. ⚫ Unplug the product during an electrical strom or when unused for long periods of time.
- Page 3 Operation manual Warning Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions ⚫ Be sure to read the instructions in this section carefully before use. ⚫...
-
Page 4: Table Of Contents
3-1 Active audio link: APEX PRO to APEX PRO ............... 19 3-2 Active audio link: APEX PRO to APEX SLAVE ............20 3-3 Wireless audio link: repeat all audio to linked APEX PRO / APEX SLAVE ....21 3-3-1 Parts and functions of RP-5100M ............... 21 3-3-2 Changing channels .................... -
Page 5: Instruction
The Modules Compartment can be user configurable and user can compartment access the battery compartment to change battery. 1-1 In the box APEX PRO amplifier 0-4 handheld / beltpack switching power supply transmitters (optional) (plug varies from country to country) -
Page 6: Parts And Functions
APEX PRO Portable Wireless PA System 1-3 Parts and functions MIC/LINE ② volume control REVERB control MIC/LINE ① volume control REVERB push MIC/LINE ① button level switch MIC/LINE ② level switch MIC/LINE input ① (combo) MIC/LINE input ② VOICE PRIORITY... -
Page 7: Charging The Battery
Instruction BLUETOOTH pairing indicator BLUETOOTH power push button audio link output audio input of computer DC IN DC input jack (30V/4A) battery indicator charging indicator power switch 1-4 Charging the battery This amplifier uses either two lead-acid batteries or one lithium battery. The battery power is leveled from 25%, 50%, 75% and FULL. -
Page 8: Module Compartment
APEX PRO Portable Wireless PA System 1-5 Module compartment For receiver / For receiver module repeater module For receiver / MP3 For receiver module module For module bracket MB-50 which offers 2 slots for adding receiver / MP3 module. 1-6 Connection with external audio sources... -
Page 9: Settings And Operations
Settings and Operations 2. Settings and Operations 2-1 Using the wired microphone (MIC 1, MIC 2) Plug a wired microphone with a 6.3mm or XLR connector to MIC 1 or MIC 2. Slide MIC/LINE switch to MIC position. Turn on master POWER and then adjust its individual volume control to a desired level. TREBLE / MIDDLE / BASS EQUALIZER (refer to P.17) and REVERB (refer to P.18) levels can be adjusted individually. -
Page 10: Using The Wireless Receiver
APEX PRO Portable Wireless PA System 2-2 Using the wireless receiver 2-2-1 Parts and functions Diversity A/B Transmitter battery RF signal meter Channel antenna power Audio signal meter IR sensor area SYNC Power switch / PWR/VOL volume control Frequency DOWN button UP button SET button IrDA synchronization... -
Page 11: Channel Scanning
Settings and Operations 2-2-3 Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▼(down) or ▲(up) button to make Hold SET button until this icon the frequency icon appear on the flashes to denote readiness for setting. -
Page 12: Volume And Other Settings
APEX PRO Portable Wireless PA System 2-2-5 Volume and other settings Turn on master POWER and then adjust its individual volume control to a desired level. SYNC PWR/VOL TREBLE / MIDDLE / BASS EQUALIZER (refer to P.17) and REVERB (refer to P.18) levels can be adjusted individually. -
Page 13: Using The Electronic Instrument (Mic 1, Mic 2)
Settings and Operations 2-3 Using the electronic instrument (MIC 1, MIC 2) Plug an electronic guitar / keyboard with a 6.3mm or XLR connector to MIC 1 or MIC 2. Slide MIC/LINE switch to LINE position. Turn on master POWER and then adjust its individual volume control to a desired level. TREBLE / MIDDLE / BASS EQUALIZER levels can be adjusted individually. -
Page 14: Using The Electronic Instrument (Line In)
APEX PRO Portable Wireless PA System 2-4 Using the electronic instrument (LINE IN) Plug an electronic guitar / keyboard with a 6.3mm or XLR connector to the COMBO jack of LINE IN. Turn on master POWER and then adjust its individual volume control to a desired level. -
Page 15: Music Audio Input (Line In)- Smart Phone / Tablet / Mp3 Player
Settings and Operations 2-5 Music audio input (LINE IN)- Smart phone / tablet / MP3 player Plug the audio cable a 3.5mm phone plug to the 3.5mm jack of LINE IN. Turn on master POWER and then adjust its individual volume control to a desired level. TREBLE / MIDDLE / BASS EQUALIZER levels can be adjusted individually. -
Page 16: Music Audio Input (Digital In)- Computer/Notebook
Portable Wireless PA System 2-6 Music audio input (DIGITAL IN)- Computer/notebook Use a USB cable to connect the unit and your PC/Notebook to use APEX PRO as the speaker of your device. Turn on master POWER and then adjust master volume control to a desired level. -
Page 17: Operating Bluetooth Receiver (Bluetooth)
GREEN Activate BLUETOOTH on your device (phone, tablet, PC., etc) and pair with external BLUETOOTH device named “BT AUDIO”. After successful linking, the pairing indicator will be solid green and you can play your music on APEX PRO. Settings Bluetooth... -
Page 18: Equalizer For Wired And Wireless Microphone And Music
APEX PRO Portable Wireless PA System Important ◼ The BLUETOOTH automatically turns off after no pairing for 5 minutes. ◼ Press SWITCH button for disconnection and getting ready for new pairing. ◼ The BLUETOOTH can memorize and automatically connect to last-paired device. -
Page 19: Voice Priority
Settings and Operations 2-9 VOICE PRIORITY Voice Priority operation is only necessary when CD/USB/MP3 is playing. When the Voice Priority switch is ON, the ducking function will be activated. While the music is playing, a voice input from either a WIRED or WIRELESS MICROPHONE will temporarily override and lower the volume of the background music and voice could be heard more clearly. -
Page 20: Application
3. Application 3-1 Active audio link: APEX PRO to APEX PRO APEX PRO operates as the MASTER as well as companion unit in an audio link (wired) configuration. Connect one APEX PRO after the other via the COMBO LINE IN and ACTIVE OUT jacks. -
Page 21: Active Audio Link: Apex Pro To Apex Slave
Application 3-2 Active audio link: APEX PRO to APEX SLAVE APEX PRO operates as the MASTER unit in an audio link (wired) configuration with active companion powered speakers APEX SLAVE . Connect the APEX PRO (master unit) and APEX SLAVE (active companion powered speakers) via ACTIVE OUT and ACTIVE IN jacks. -
Page 22: Wireless Audio Link: Repeat All Audio To Linked Apex Pro / Apex Slave
Portable Wireless PA System 3-3 Wireless audio link: repeat all audio to linked APEX PRO / APEX SLAVE APEX PRO operates as the MASTER unit in a wireless audio link with other APEX PRO or active companion powered speakers APEX SLAVE . -
Page 23: Music Audio Input (Aux In)- Smart Phone / Tablet / Mp3 Player
Application 3-3-3 Music audio input (AUX IN)- Smart phone / tablet / MP3 player Connect your device to the 3.5mm jack of AUX IN with a 3.5mm 3-pole stereo audio cable. Use a mini screw driver to adjust the volume of the input audio. ... - Page 24 IrDA receiver module COMPANION Turn on master POWER of APEX PRO and EACH APEX SLAVE and then adjust master volume control to a desired level. Turn on power of EACH APEX SLAVE and then adjust the volume control to a desired level.
-
Page 25: More Extension
Application 3-4 More extension To reach wider coverage, the companion unit APEX PRO / APEX SLAVE can serve as SUB- MASTER to transmit signals to SUB-COMPANION units. Important: Please do not set the SUB-COMPANION as next MASTER in order to guarantee best sound quality. -
Page 26: Connecting A Passive Companion Speaker
APEX PRO Portable Wireless PA System 3-5 Connecting a passive companion speaker Plug the passive companion speaker’s audio cable with a 6.3mm connector to the speaker input socket of APEX SP or another 4~8Ω load speaker. Max cable length less than 20m. -
Page 27: Installing Or Replacing A Receiver/Repeater/Mp3 Module
Installing or replacing a receiver/repeater/MP3 module 4. Installing or replacing a receiver/repeater/MP3 module There are four slots above the control panel and two on MB-50 module bracket for installing optional modules which includes receiver, repeater and MP3 recorder modules. Use a Phillips-head screwdriver (not included) to remove the screws of the blank cover panel or current module’s panel. -
Page 28: Operation Of The Storage For Transmitters And Accessories
APEX PRO Portable Wireless PA System 5. Operation of the storage for transmitters and accessories Open the lid. Be careful of the gap between the trolley handle and the lid. Slots handheld transmitters. Please make the handheld’s power switch face ❶... -
Page 29: Faq & Useful Operation Tips
6. FAQ & useful operation tips How to adjust the best volume? For CHIAYO PA system with a master volume control, turn the master volume to 12 o'clock and then gradually adjust the volume of audio inputs (microphone, CD, MP3, etc.) from minimum to an appropriate level. - Page 30 If the battery is fully charged after usage without over-discharging, the battery life can reach about 2 years. Is it possible that APEX PRO can work as amplifier only? Can I use only one or more microphones? How many wireless microphones can be used at most?
-
Page 31: Maintenance-Free Lead-Acid And Lithium Batteries
2. Please use the power supply specified by CHIAYO for charging. 3. The CHIAYO amplifier has a protection circuit to prevent overcharging. However, it’s recommended that the charging time not exceed 12 hours. Please disconnect the power supply when fully charged. - Page 32 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611 12I1395B...
