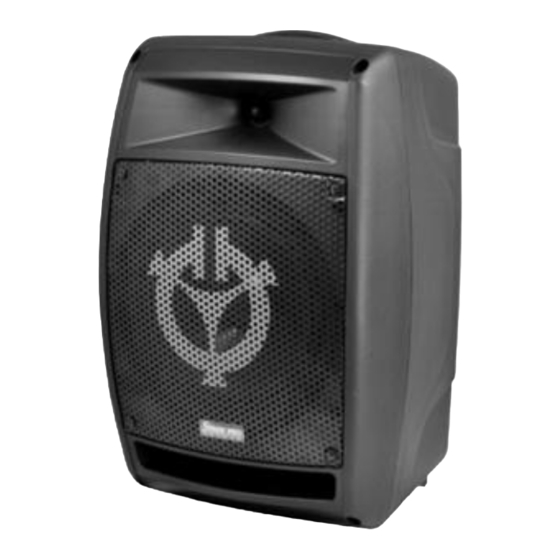

Multifunctional Wireless Mixer Amplifier System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT World Genius Convention Silver Medal...
Page 2
Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions Be sure to read the instructions in this section carefully before use. ...
Page 3
6. Wired microphone. Remark STAGE PRO is a 2-way speaker system with electronics crossover, one can NOT connect a passive speaker to this system as external speaker. Instead, active powered speaker should be used (either wired or via wireless link) as external speaker for STAGE PRO!
Page 4
Parts and functions on STAGE PRO control panel 1. Mic in #1 2. Mic #1 volume control 3. Mic in #2 4. Mic #2 volume control 5. Mic tone control (Treble/Bass) 6. Reverb volume control 7. Reverb on/off 8. Instrument in #1 9.
Page 5
ISO 9001|ISO 14001|OHSAS 18001 Parts and functions on STAGE MAN control panel 1. Mic/Line #1 volume control 2. Mic/Line level switch #1 3. Min/Line input #1 4. Mic/Line #2 volume control 5. Mic/Line level switch #2 6. Min/Line input #2 7.
Page 6
Music audio inputs To receive different audio signals from unbalanced sources with different connectors, the unit is equipped with one 3.5mm and one RCA R/L (STAGE PRO only) jacks. This Line-in area has its individual volume and tone control (Bass/Middle/Treble), too.
Page 7
Digital in (STAGE PRO only) The Digital-in is for audio connection with the PC/Notebook. Just use a USB cable to connect the unit and your PC/Notebook to make STAGE PRO the speaker of your device. Its volume is controlled by the master adjusting knob.
Page 8
SDR-5200M IrDA|SDR-5100M receiver modules 1. Channel indicator 5. Channel Selector 2. Diversity A/B indicator 6. IRDA synchronizing button 3. Audio signal indicator 7. Squelch control 4. IR sensor area 8. Power switch/volume control First turn on the Power of the main unit. Then turn on the individual power of the receiver module.
Page 9
ISO 9001|ISO 14001|OHSAS 18001 2 3 4 5 6 7 remote control of digital recorder player Bluetooth receiver section (LEFT) 1. Power/volume control 2. LINK button 3. LOCK LED 4. SCAN LED Linking instruction 1. Turn on the Bluetooth receiver and both SCAN and LOCK LEDs will flash alternatively. 2.
Page 10
Operating functions on the panel and the remote Operating function On the panel On the remote Press II Play/pause to record and II or Press REC to record and II or Record Press ● ■ ■ stop. stop. Press I Skip forward PressI Press and hold I...
Page 11
ISO 9001|ISO 14001|OHSAS 18001 Operating the CD player Parts and functions 2 3 4 5 6 7 8 9 10 1. LCD display 5. Eject 9. Infrared receiving LED 2. Play/pause 6. CD/USB selector 10. USB input 3. Stop 7. Repeat 11.
Page 12
FOLDER-UP In stop mode: Skip the starting play folder to next folder during stop mode, cyclic to the first folder if it is in the last folder. In program entry mode: Change the file for program select to next folder’s first file, cyclic to the first folder if it is in the last folder.
Page 13
ISO 9001|ISO 14001|OHSAS 18001 Operating the DVD player Parts and functions POWER / VOL PLAY PAU SE REV-SKIP-CU E STOP EJECT VIDEO FU NC REPEAT N /P SD/MM C CARD 1. Power/volume control 7. Video output 13. LCD display 2. Eject 8.
Page 14
PROGRAM 1--:-- 5--:-- 9--:-- 13--:-- 2--:-- 6--:-- 10--:-- 14--:-- 3--:-- 7--:-- 11--:-- 15--:-- 4--:-- 8--:-- 12--:-- 16--:-- play clear In the picture T means TITLE, C means CHAPTER. The divided unit of DVD disc is title, and can divide the title for several chapters. Usually one movie has one title.
Page 15
ISO 9001|ISO 14001|OHSAS 18001 UHF handheld transmitters(SQ-6100 IrDA(R)|SQ-6100 IrDA|SQ-2100 IrDA|SQ-1100 IrDA) →SQ-6100 IrDA(R)|SQ-6100 IrDA →SQ-2100 IrDA →SQ-1100 IrDA Parts and functions SQ-6100 IrDA(R) SQ-6100 IrDA SQ-2100 IrDA SQ-1100 IrDA Cartridge Battery power LED Power switch Menu button Setting button IrDA synchronizing button Battery compartment Color cap IrDA sensor area...
Page 16
Channel synchronizing of the receiver and transmitter 1. To achieve a trouble-free synchronization, please limit the distance between the receiver and transmitter to within 30cm. 2. Align both sensor areas 3. To change the receiver’s channel, please press the synchronizing button of the transmitter. The transmitter will transmit synchronizing signal to the receiver and change its channel.
Page 17
ISO 9001|ISO 14001|OHSAS 18001 (SM-7100 IrDA|SM-6100 IrDA|SM-2100 IrDA|SM-1100 IrDA) UHF belt-pack transmitters 11 12 SM-7100 IrDA|SM-6100 IrDA|SM-2100 IrDA SM-1100 IrDA Parts and functions SM-7100 IrDA SM-6100 IrDA SM-2100 IrDA SM-1100 IrDA Antenna Cover release button Power switch IrDA synchronizing button Menu button Setting button High-impedance gain control (GT)
Page 18
Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period. Batteries should be removed from the belt-pack before storing without use for more than 4 weeks. When the transmitter is switched ON, the battery power LED (red) will blink once to indicate the batteries installed are in good condition.
Page 19
ISO 9001|ISO 14001|OHSAS 18001 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
