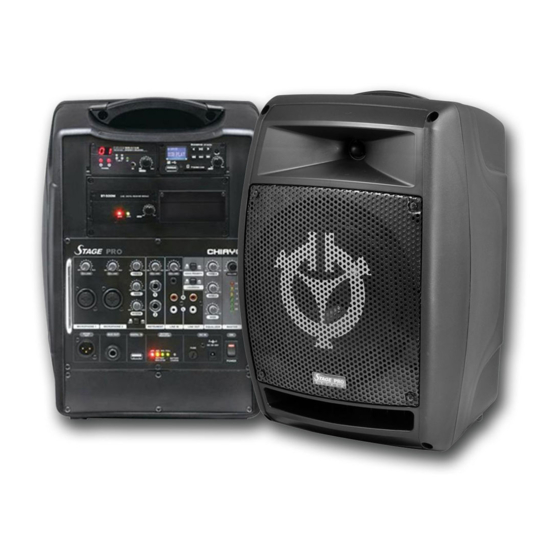

Chiayo STAGE PRO Operation Manual
Multifunctional wireless mixer amplifier
Hide thumbs
Also See for STAGE PRO:
- Operation manual (24 pages) ,
- Operation manual (9 pages) ,
- Operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Chiayo STAGE PRO
Summary of Contents for Chiayo STAGE PRO
- Page 1 STAGE PRO Operation manual Multifunctional Wireless Mixer Amplifier CHIAYO ELECTRONICS CO.,LTD.
- Page 2 STAGE PRO Multifunctional Wireless Mixer Amplifier Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions Be sure to read the instructions in this section carefully before use.
- Page 3 3. 1~4 transmitters, either handheld or belt-pack transmitter (except version with no module installed). Optional accessories 1. Weather proof dust cover. 2. Single trolley bag/Dual trolley case 3. Tripod stand 4. Companion active powered speaker (Slave speaker for STAGE PRO) 5. Wired microphone. Specifications are subject to change without prior notice.
- Page 4 STAGE PRO Multifunctional Wireless Mixer Amplifier In the box STAGE PRO amplifier 0~4 transmitters Switching power supply (handheld/beltpack) operation manual ** Remark: The above specifications are subject to change without prior notice.
- Page 5 Instructions Parts and functions ① 1. Microphone volume control 12. Line in volume control ① 2. Microphone input 13. Line in socket (3.5mm) ② 14. Line in socket (RCA R/L) 3. Microphone volume control ② 15. Voice priority switch 4. Microphone input 16.
- Page 6 STAGE PRO Multifunctional Wireless Mixer Amplifier Using the wired microphone Plug a wired microphone with a 6.3mm or XLR connector to MIC IN 1 or MIC IN 2. Turn on master POWER and then adjust its individual volume control to a desired level.
- Page 7 Instructions Using the electronic instrument Plug an electronic guitar or keyboard with a 6.3mm plug to the INSTRUMENT input jack ① or ②. Turn on master POWER and then adjust its individual volume control to a desired level. Bass/Middle/Treble tone levels can be adjusted by individual controls. TONE control...
- Page 8 STAGE PRO Multifunctional Wireless Mixer Amplifier Music audio input- MP3/MP4/DVD player MP3/MP4 Plug the audio cable with a 3.5mm phone plug to the 3.5mm jack. DVD PLAYER Plug the audio cable with RCA R/L plugs to the RCA R/L jacks.
- Page 9 Instructions Music audio input- Computer/notebook Use a USB cable to connect the unit and your PC/Notebook to make STAGE PRO the speaker of your device Turn on master POWER and then adjust master volume control to a desired level. Bass/Middle/Treble tone levels can be adjusted by individual controls.
- Page 10 STAGE PRO Multifunctional Wireless Mixer Amplifier Tone control For wired and wireless microphone(s) For music Operating Voice Priority Voice Priority operation is only necessary when CD/USB/MP3 is playing. When the Voice Priority switch is ON, the ducking function will be activated.
- Page 11 Instructions Operating active audio link STAGE PRO could be operated as the MASTER unit in an audio link (wired) configuration. The Master is capable of daisy chain manner wire connecting of up to about 20 active speakers (Stage Slave). Connect the ACTIVE OUT of the Master to the ACTIVE IN of the 1st STAGE SLAVE.
- Page 12 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
