Chiayo SMART 300-U Series Operation Manual

Chiayo SMART 300-U Series Operation Manual

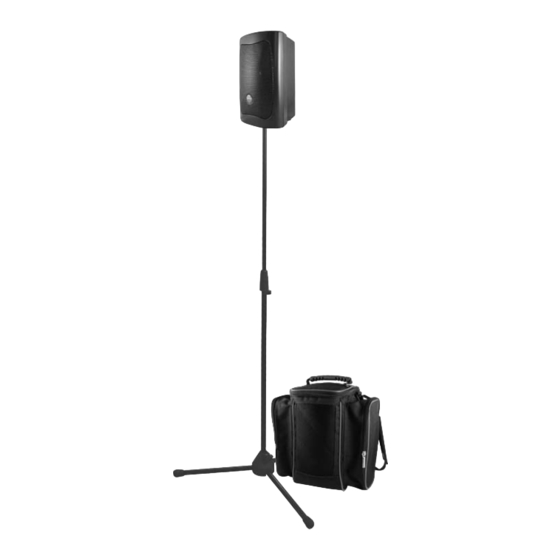

Mini wireless portable amplifier system

Advertisement

Quick Links

ISO 9001
REGI STERED
INTERNATIONAL
ISO
14001
ISO 14001
REGISTERED
INTERNATIONAL
OHSAS
18001
OHSAS 18001
GREEN PRODUCT
TAIWAN EXCELLENCE
TAIWAN GOOD DESIGN
Mini Wireless Portable Amplifier System
Operation manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMART 300-U Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chiayo SMART 300-U Series

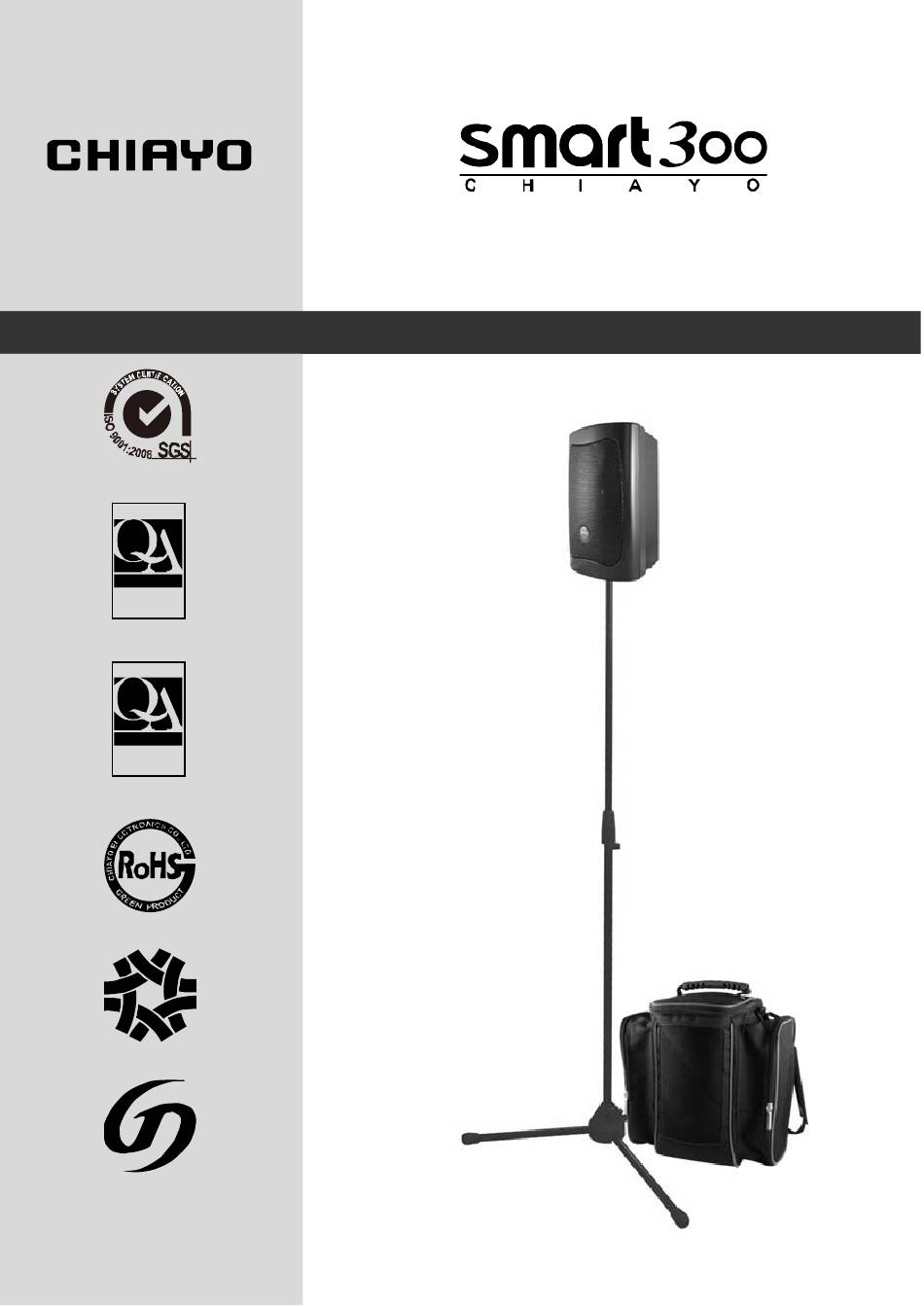

  • Page 1 Mini Wireless Portable Amplifier System Operation manual ISO 9001 REGI STERED INTERNATIONAL 14001 ISO 14001 REGISTERED INTERNATIONAL OHSAS 18001 OHSAS 18001 GREEN PRODUCT TAIWAN EXCELLENCE TAIWAN GOOD DESIGN...
  • Page 2: Safety Precautions

    Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions  Be sure to read the instructions in this section carefully before use. ...
  • Page 3: Optional Accessories

    ISO 9001|ISO 14001|OHSAS 18001 Congratulation and thank you for the purchase of this all-in-one ultra compact portable sound system. To ensure a trouble-free operation, please read this manual thoroughly to fully understand its controls and functions. Configuration All versions of SMART 300 series comes equipped with the following: 1.
  • Page 4 SMART 300 Speaker 1. Mic input 2. Aux input 3. Tone control 4. WR channel selector (optional) 5. Aux output 6. DC input 7. Power/battery status/charging indicator 8. Power/mic volume control 9. Aux/USB/SD volume control 10. Wireless microphone volume control (optional) 11.
  • Page 5: Operating Procedures

    ISO 9001|ISO 14001|OHSAS 18001 Recharge the battery before first use After unpacking the unit for the first time, please recharge the unit for about 4~5 hours before operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it had been fully charged in the factory prior to shipment.
  • Page 6 UHF handheld transmitters(SQ-5016|SQ-1016V|SQ-1016) ► SQ-5016 (UHF LCD 16-freq.) ► SQ-1016V | SQ-1016 (UHF 16-freq) Transmitter parts and functions SQ-5016 SQ-1016V SQ-1016 Cartridge Battery weak/power LED Power switch Channel switch Volume control Battery compartment Bottom cap Locking button Setting button Up button Charging port Down button Battery installation &...
  • Page 7 ISO 9001|ISO 14001|OHSAS 18001 Other settings (SQ-5016) 1. Channel setting Use UP ⑨ or DOWN ○ 1 1 button to go to the CHANNEL | FREQUENCY page. After pressing the SET button ⑧ for 3 seconds, the cursor will flash to allow changes to be made.
  • Page 8 UHF belt-pack transmitters(SM-5016|SM-2016|SM-1016) ←SM-5016|SM-1016 ←SM-2016 Transmitter parts and functions SM-5016 SM-1016 SM-2016 Antenna Battery weak/audio mute indicator Audio mute switch Audio input connector (mini XLR) Charging port Cover release button Power switch Gain control (GT, high impedance) Gain control (MT, low impedance) Setting button Up button Down button...
  • Page 9 ISO 9001|ISO 14001|OHSAS 18001 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note : Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
  • Page 10 Handheld transmitters(Q-818|Q-1005) ► Q-818 (UHF fixed-freq) ► Q-1005 (VHF fixed-freq) Transmitter parts and functions Q-818 Q-1005 Cartridge Battery weak/powe r LED Power switch Battery compartme nt Bottom cap Charging po rt Battery installation & indicator This transmitter requires 2 x AA batteries to operate. To install, remove the battery cover and slide the batteries into the battery compartment &...
  • Page 11 ISO 9001|ISO 14001|OHSAS 18001 Belt-pack transmitters(M-815|M-1005) Transmitter parts and functions M-818 M-1005 Ante nna Battery weak indicator Power switch (Lava lier microp ho ne) Mini XLR connector Cover re lease b utto n Gain co ntrol (GT, high impedance) Gain co ntrol (MT, low impeda nce) Battery compartme nt Charging co ntacts Battery installation &...
  • Page 12 DPR-300m MP3 recorder player module remote control  Parts and functions 1. LCD display 2. USB 2.0 input 3. IR sensor area 4. SD card input 5. Press to play/pause or stop recording. 6. Press to record. 7. Press to return to previous track, press and hold to fast reverse.
  • Page 13 ISO 9001|ISO 14001|OHSAS 18001 Note:  Supports FAT and FAT32 file systems only.  Supports MP3, WAV and WMA music formats only  Record track format :MP3; Bit rate: 128kbps; Sampling frequency: 44kHz  Recordable only when USB/SD is detected. ...
  • Page 14 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 15 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw|Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan|Tel: 886-2-27415741|Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan|Tel: 886-5-2711000|Fax: 886-5-5767611 12I1353...
