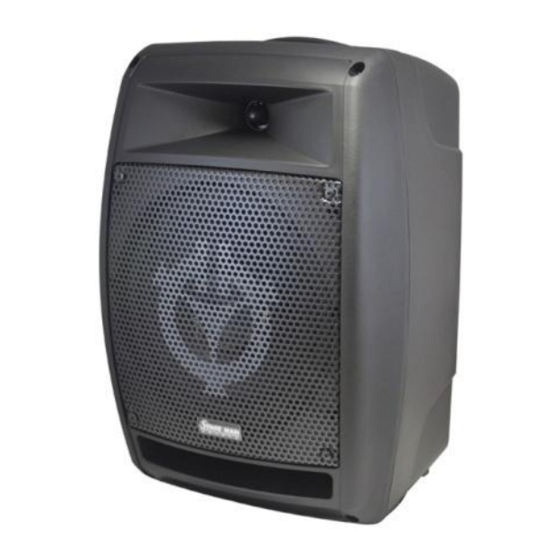

Chiayo Stage Man Operation Manual

Professional wireless portable amplifier
Hide thumbs Also See for Stage Man:

Advertisement

Quick Links

Download this manual
Professional Wireless Portable Amplifier

Operation manual

ISO 9001:2008
GREEN PRODUCT
World Genius Convention
Silver Medal

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stage Man and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chiayo Stage Man

Summary of Contents for Chiayo Stage Man

  • Page 1: Operation Manual

    Professional Wireless Portable Amplifier Operation manual ISO 9001:2008 GREEN PRODUCT World Genius Convention Silver Medal...
  • Page 2 STAGE MAN can be optionally installed with wireless receiver/transmitter/MP3 recorder player/Bluetooth receiver modules, as well as CD player, DVD player and digital recorder player. The wireless receiver/transmitter module is UHF band and plus PLL synthesized type with 16 or 100 preset frequencies.
  • Page 3 ISO 9001 / ISO 14001 / OHSAS 18001 Parts and functions on STAGE MAN control panel 1. Mic/Line #1 volume control 2. Mic/Line level switch #1 3. Min/Line input #1 4. Mic/Line #2 volume control 5. Mic/Line level switch #2 6.
  • Page 4 Speaker out: This 6.3mm jack is used as audio output connection to another passive amplifier. Recharging the battery STAGE MAN uses either two lead-acid batteries or one lithium battery. The battery power is leveled from 40%, 60%, 80% and FULL. If the LED stays at 40%, the battery might not be sustainable for long operation.
  • Page 5 ISO 9001 / ISO 14001 / OHSAS 18001 SDR-5116M/SDR-5100M IrDA receiver modules 1 2 3 4 1. Channel indicator 2. Diversity A/B indicator 3. Audio signal indicator 4. IR sensor area (SDR-5100M IrDA) 5. Channel Selector 6. IRDA synchronization button (SDR-5100M IrDA) 7.
  • Page 6 2. Antenna socket(TNC type) 3. Channel selectors: Press ▲(up)▼(down) to increase/decrease channel number. Please select a non-interfering frequency channel to those used in the receiver modules. 4. Power on/off 5. Unit GAIN control: This controls the GAIN level of interior audio sources. 6.
  • Page 7 ISO 9001 / ISO 14001 / OHSAS 18001 Press and hold  Fast backward Press and hold I Press  Next folder Press  Previous folder Track select (button #0-9) input track number, then press II Repeat mode switch Press and hold MODE Press MODE (ALL/RANDOM/SINGLE/FLDER) EQ mode switch...
  • Page 8 Press I Skip forward PressI Press and hold I Press and hold I Fast forward Skip backward Press I Press I Fast backward Press and hold I Press and hold I Press  Next folder Press  Previous folder input track number, Track select (button #0-9) then press II Press USB/SD...
  • Page 9 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the CD player Parts and functions 6. CD/USB selector 1 2 3 4 5 11 1. LCD display 11. Power/volume control 2. Play/pause 7. Repeat 3. Stop 8. Folder skip 4. Rev-Skip-Cue 9.
  • Page 10 FOLDER-DOWN In stop mode: Skip the starting play folder to previous folder during stop mode, cyclic to the last folder if it is in the first folder. In program entry mode: Change the file for program select to previous folder’s first file, cyclic to the last folder if it is in the first folder.
  • Page 11 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the DVD player Parts and functions 13 6 5 4 3 2 1 1. Power/volume 7. Video output 13. LCD display control 8. N/P 14. IR LED 2. Eject 9. Repeat 15.
  • Page 12 In the picture T means TITLE, C means CHAPTER. The divided unit of DVD disc is title, and can divide the title for several chapters. Usually one movie has one title. Some disc are not divided in this way, please pay attention to it when operate GOTO”...
  • Page 13 ISO 9001 / ISO 14001 / OHSAS 18001 Operating the Digital recorder player Parts and functions 18 19 6 5 4 3 2 1 11 10 9 8 7 17 16 15 14 1. Play/Pause 8. Program/Repeat 15. Copy 2. Stop 9.
  • Page 14 Press FOLDER button, LCD screen display F, then REW or F. FWD button with the numbers 0 to 9 button to select the directory . Double-click the Cancel catalog select, LCD screen, "F" disappears -Recording quality adjustment: Press FOLDER button more than 3 seconds can choose the recording quality.
  • Page 15 ISO 9001 / ISO 14001 / OHSAS 18001 -Copy function is copying without folder. For example, if wants to copy each 5 tracks in 3 folders (total 15 tracks) and there will be storage to CPY001 ~ CPY015 at the CPY folder after copying. If copy a new song after it, it will be storage at CPY016.
  • Page 16 ■IR sensor: Infrared remote control eye. ■DEL: Delete single/folder/all of the files. Delete current playing track, can be operated under “Stop” mode or during “Playing” mode Press DEL button, LCD displays flash DEL FILE, reminding you to delete the file, and then press DEL to confirm the deletion, LCD display shows DEL END.
  • Page 17 ISO 9001 / ISO 14001 / OHSAS 18001 The remote controller shall be appointed to the receiving hole of face plate. The optimal receiving distance is 3 meters. ( the available distance is 3 meters. ) The batteries ( model CR2025 3V ) shall be put into the remote controller.
  • Page 18 If copy a new song after it, it will be storage at CPY016. ■REP: Repeat function : Need to operate in the playing mode - Press once, LCD screen displays "REP", will repeatedly playback currently playing track. - Press twice, LCD screen displays "REP F", will repeat the entire directory is currently being played - Press 3rd times, LCD screen displays "REP ALL", will be repeated play all tracks.
  • Page 19 ISO 9001 / ISO 14001 / OHSAS 18001 - Then press DEL key again to delete all the files - To cancel delete function, just wait for LCD stops flashing and cancellation of delete function ■RAN: Press to play the tracks in a random order. Press again to cancel. ■FOLDER: Folder selection key and adjust the recording quality - Select folder Press FOLDER button, LCD screen display F, then REW or F.
  • Page 20 UHF handheld microphones (SQ-1016/SQ-1016V/SQ-5016/SQ-6100/SQ-7100) Parts and functions SQ-1016/1016V (UHF 16-freq) SQ-5016/6100/7100 (UHF LCD16/100/100-freq.) 10 11 9 Microphone parts and functions SQ-1016 SQ-1016V SQ-5016 SQ-6100 SQ-7100 Cartridge Battery power LED Power switch Channel switch Battery compartment Bottom cap Locking button Audio mute switch Setting button Up button Down button...
  • Page 21 ISO 9001 / ISO 14001 / OHSAS 18001 1. Channel setting Use UP or DOWN button to go to the CHANNEL/ FREQUENCY page. The cursor will flash to allow changes to be made. Pressing UP or DOWN button will increase or decrease the channel number.
  • Page 22 UHF handheld microphone (SQ-1100 IrDA) Parts and functions 1 2 3 4 5 1. Cartridge 4. Synchronizing button 7. Charging port 2. Battery power LED 5. Battery compartment 3. Power switch 6. Synchronizing LEDs Cartridge replacement First rotate off the ball screen from the housing and take out the cartridge to be replaced. Then insert a new one, which comes in dynamic or condenser types.

  • Page 23: Parts And Functions

    ISO 9001 / ISO 14001 / OHSAS 18001 UHF beltpack transmitters (SM-1016/SM-5016/SM-7100) Parts and functions 12 13 14 15 SM-1016 SM-5016/7100 (UHF 16-Freq.) (UHF LCD 16/100-Freq.) Transmitter parts and functions SM-1016 SM-5016/SM-7100 Antenna Battery weak/audio mute indicator Power switch Mini XLR connector Audio mute switch Charging port Cover release button...
  • Page 24 Channel and GAIN setting (SM-1016) Please use the attached small screw driver to set the channel. Gain control is an adjustable design that enables user to set different output levels. GT is for the use of instrument with high impedance, such as guitar while MT is for the use of low impedance such as lavalier or headset microphone.
  • Page 25 ISO 9001 / ISO 14001 / OHSAS 18001 UHF beltpack transmitter (SM-1100 IrDA) Parts and functions 10 11 1. Antenna 5. IrDA sensor area 9. Synchronizing button 2. Battery weak indicator 6. Cover release button 10.GT 3. Power switch 7. Charging contacts 11.MT 4.
  • Page 26 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 27 ISO 9001 / ISO 14001 / OHSAS 18001 -26-...
  • Page 28 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan / Tel: 886-2-27415741 / Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan / Tel: 886-5-2711000 / Fax: 886-5-5767611 12I1288...
