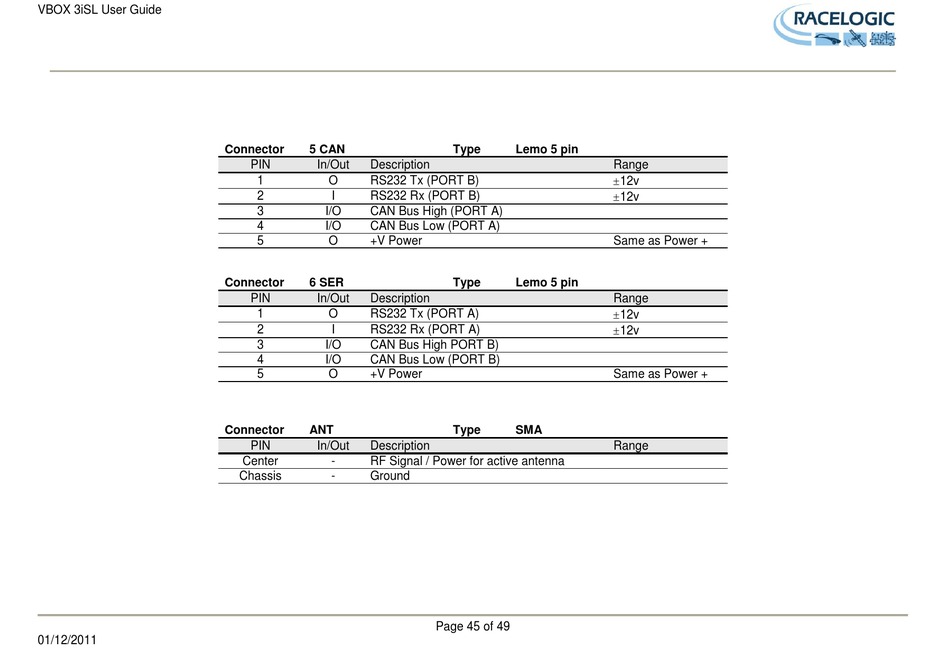

Connector 5 CAN
PIN In/Out Description
1 O RS232 Tx (PORT B)
2 I RS232 Rx (PORT B)
3 I/O CAN Bus High (PORT A)
4 I/O CAN Bus Low (PORT A)
5 O +V Power
Connector 6 SER
PIN In/Out Description
1 O RS232 Tx (PORT A)
2 I RS232 Rx (PORT A)
3 I/O CAN Bus High PORT B)
4 I/O CAN Bus Low (PORT B)
5 O +V Power
Connector ANT
PIN In/Out Description
Center - RF Signal / Power for active antenna
Chassis - Ground
Type Lemo 5 pin
Range
12v
12v
Same as Power +
Type Lemo 5 pin
Range
12v
12v
Same as Power +
Type SMA
Range
