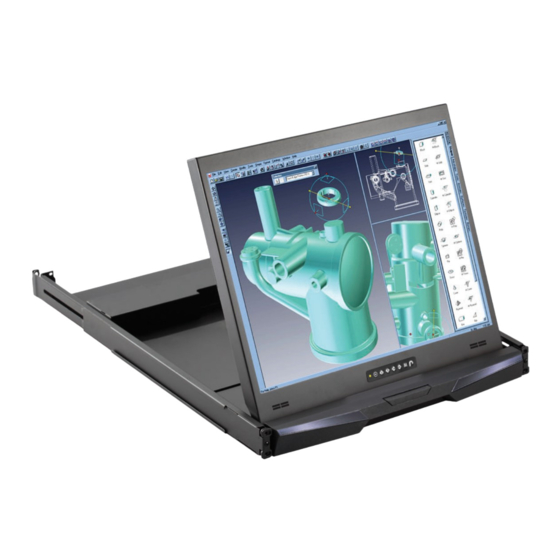

- Page 1 KVM switch and rackmount screen technology User Manual 20” LCD 1600 x 1200 RP-120 1U LCD Drawer Options : - AV / HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-120-Q421V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, December 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-120 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 > Options HDMI, S-Video + BNC &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content RP-120 RP-120 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). It varies with options such as HDMI, AV, audio &... - Page 6 < 1.2 > Dimension Front View Rear View DVI-D Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 13.5 kg...
-
Page 7: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray RP-120 Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. ■... -
Page 8: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M... - Page 9 RP-120 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 439.6 x 650 x 44 mm Specifi...
-
Page 10: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-120 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
-
Page 12: Part. 3 > Options
< Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.2, CEA-861-D - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected. - Page 13 < 3.3 > Options : DC Power RP-120 Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 14 Intentionally Left Blank UM-CV-751-RP-120-Q421V1 www.austin-hughes.com...
- Page 15 Intentionally Left Blank UM-CV-751-RP-120-Q421V1 www.austin-hughes.com...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-120-Q421V1 www.austin-hughes.com...
