Installation

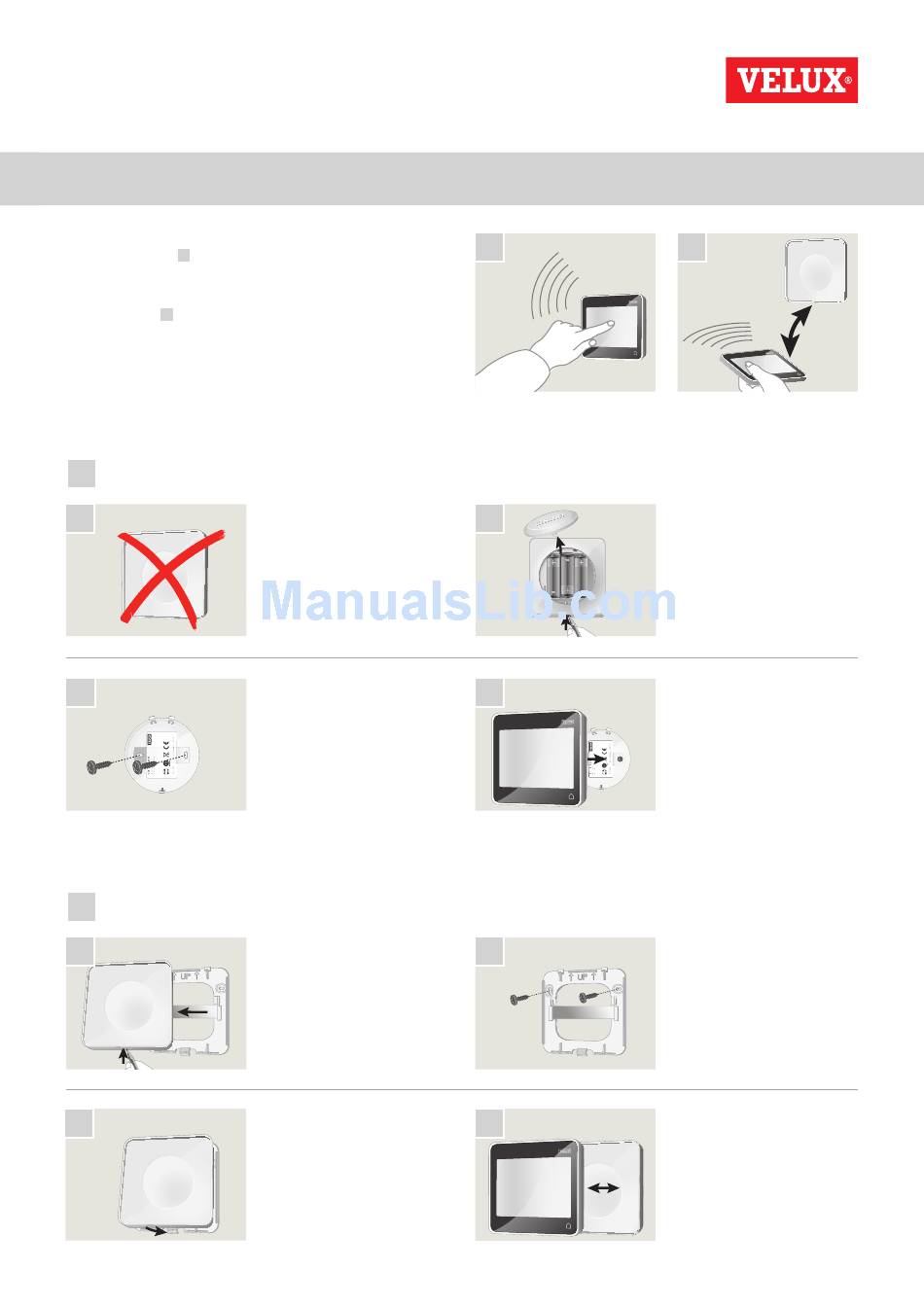

Fitting the control pad to the wall

You can secure the control pad directly to the wall without using
the holder supplied . The control pad will be almost flush with
A
the wall and you will always know where it is.
The control pad can be made movable by fitting the holder sup-
plied to the wall and placing the control pad in the holder.
B
You may also choose not to fit the control pad to the wall.
A
Control pad fitted directly to the wall
1
3
B
Control pad with holder
1
3
The holder is not required.
Fit the battery compartment
lid to the wall with the two
screws supplied.
Press with a pointed object at
the bottom of the holder and
remove the back section.
Clip on the holder to the back
section.
A
2
4
2
4
4
B
Remove the battery compart-
ment lid by pressing the release
button with a screwdriver as
illustrated.
Clip on the control pad to the
battery compartment lid.
Fit the back section onto the
wall with the two screws sup-
plied.
Place the control pad in the
holder. The control pad is
secured by means of built-in
magnets.
