Outside Wall Mount (Packet B)
1. Select a location on an outside wall as high as
possible and at least 20 feet away from where the
amplifi er will be located (see Figure 8).
!
Warning: RF Safety: The cradle antenna, when used
with the included cable, must have a separation distance of
at least 8 inches from all persons. If the cable is shortened,
or if a different type of cable is used, or if a different antenna
is used, consult with Wilson Technical Support to verify that
the planned installation is safe. Call 866­294­1660 or 435­
673­5021, or email tech@wilsonelectronics.com.
2. Using the cradle as a template, position it on the
wall in the desired location and mark the screw
holes with a pencil.
3. Drill two holes where marked, using a 3/16­inch
bit, and insert the screw anchors.
4. Line up the holes in the cradle with the screw
anchors and mount the cradle to the wall using
two screws and two washers (see Figure
9). Tighten the screws with a Phillips­head
screwdriver.

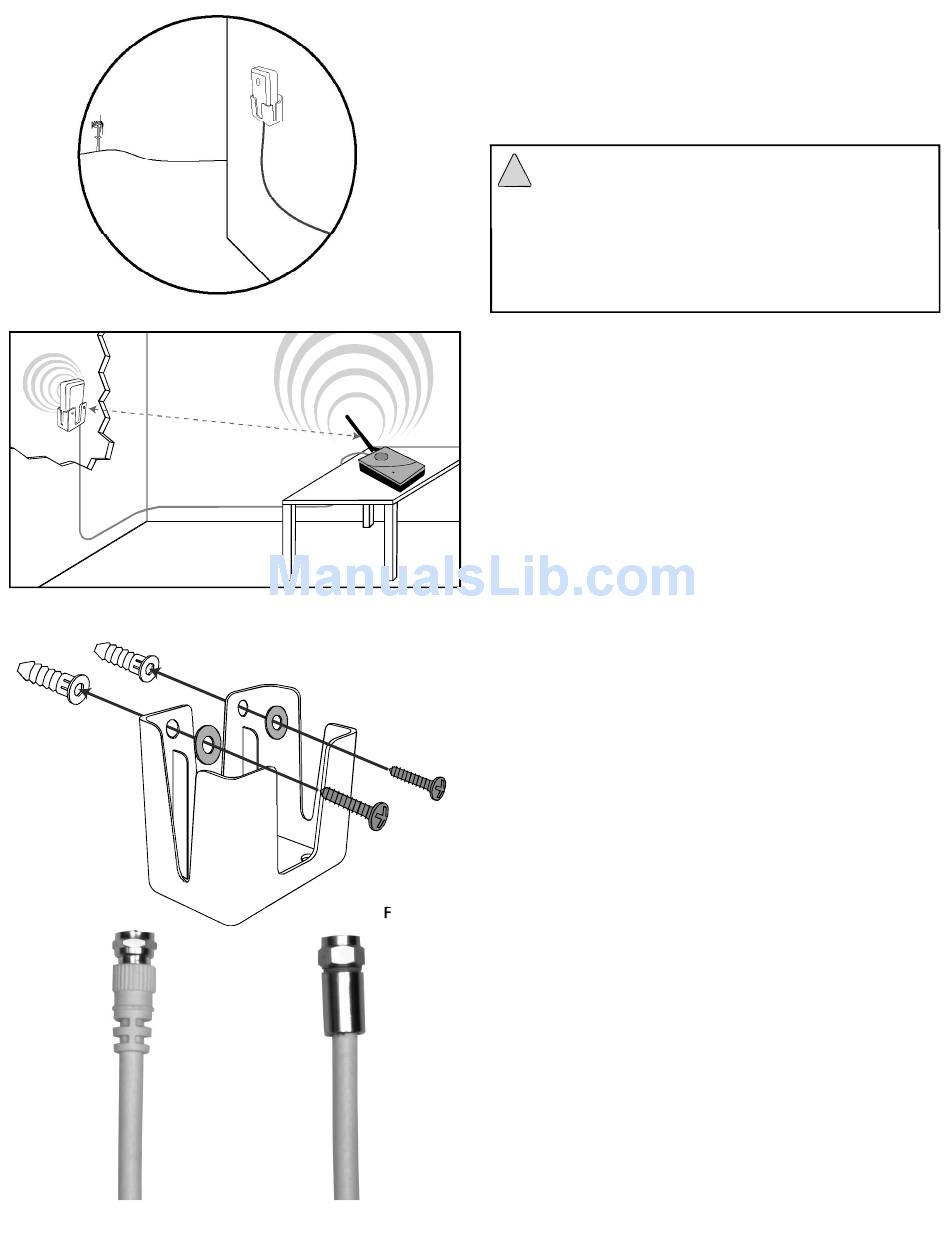

Figure 8
5. Insert the antenna into the cradle with the
Wilson insignia facing in the direction of
the cell tower. The cable connection should
protrude through the bottom of the cradle.
6. Connect the waterproof end of the supplied coax
cable to the antenna. (The waterproof end is
indicated by the silver connector ­ see photo
below left.) Route the cable as desired to where
the amplifi er will be located. Depending on the
distance between the amplifi er and antenna, you
may need one or both lengths of the supplied
cable. If you use both, connect them together
with the supplied cable connector.
Figure 9
end of the cable
connects to the
cradle antenna.
