Antenna Placement - Wilson Electronics SignalBoost DT Installation Manual

If you have access to the roof or to the outside walls of your house or building, your best choice is to place the
cradle antenna outside, facing toward the cell site (see page 3). If you cannot access these areas, use your cell
phone and fi nd an area indoors that faces the cell site, ideally near the top of a window or wall, where you can
make calls or you have several bars on your phone. Usually, a window is preferable to a wall, because it does
not obstruct radio waves. Note: install the antenna as high as possible on the window or wall for the strongest
signal. If you cannot fi nd an indoor location with a good signal position, you will need to install the cradle
antenna outside on a wall or pole, and turn it toward the cell site.
Antenna Placement

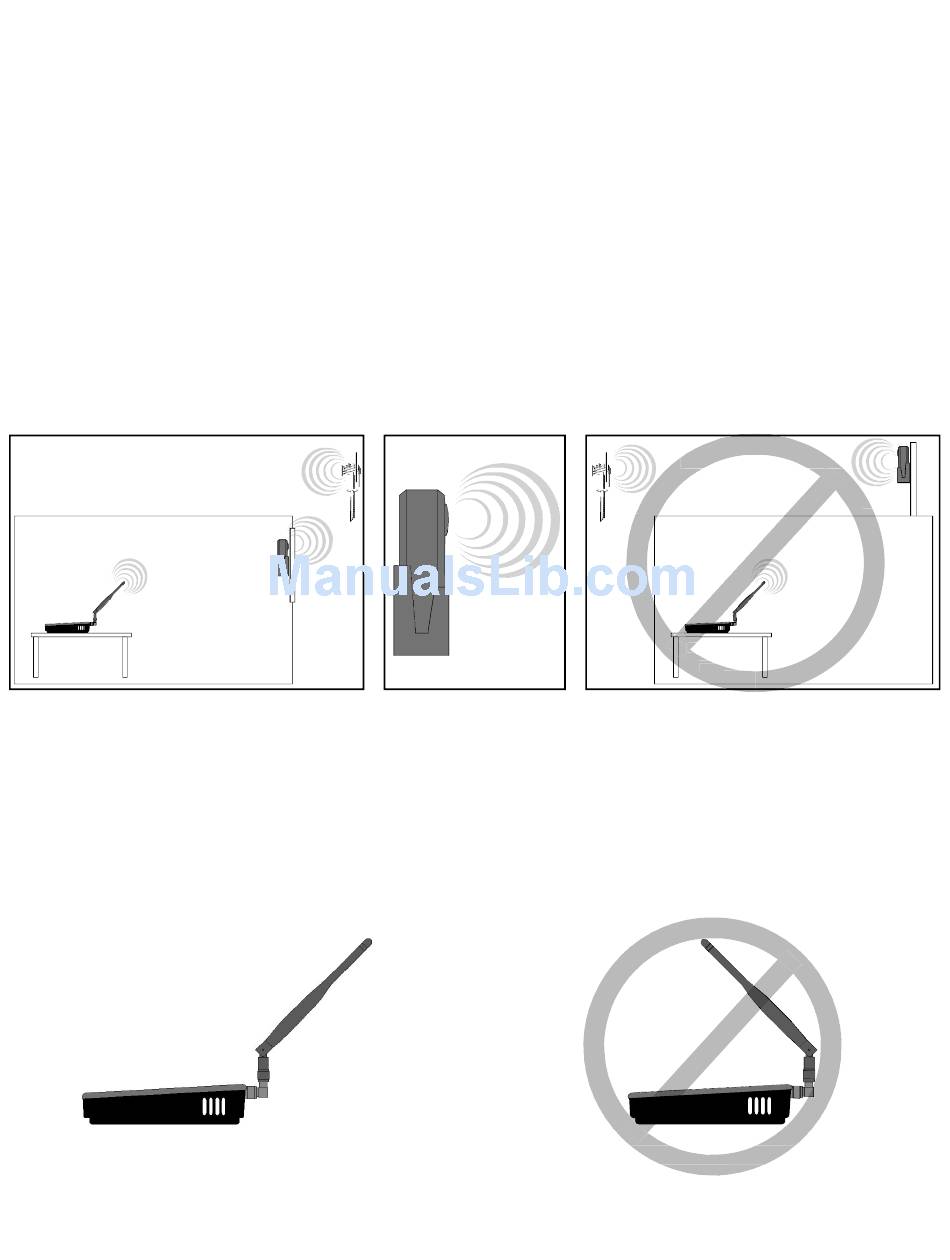

The location of the amplifi er with its on­board antenna in relation to the cradle antenna is very important. Once
you fi nd a good signal location for the cradle antenna, the amplifi er and on­board antenna need to be located
behind it to reduce the possibility of oscillation (indicated by a red indicator light on the amplifi er). In other
words, the front of the cradle antenna (indicated by the Wilson insignia) needs to face in the direction of the cell
site and not in the direction of the amplifi er and on­board antenna (see Figure 3).
Figure 3
CORRECT
Amplifi er with
On­Board
Antenna
Position the on­board antenna at a 45­degree
angle by adjusting it on its base. Note: it may
also be positioned vertically; however, this
will require greater separation from the cradle
antenna (see Page 5).
In addition, it is important that the on­board antenna be positioned behind, and not over, the amplifi er, as shown
below.
CORRECT
For Technical Support, call 866­294­1660 or 435­673­5021.
Cell
Site
Cradle
Antenna
The Wilson insignia
on the cradle antenna
should face toward the
cell site and away from
the on­board antenna.
INCORRECT INCORRECT INCORRECT
Cell
Site Site
Amplifi er with Amplifi er with Amplifi er with Amplifi er with
On­Board On­Board
Antenna Antenna
Never point the cradle antenna across the
building toward the on­board antenna. Do
not let the cradle antenna and the on­board
antenna transmit toward each other.
INCORRECT INCORRECT
Cradle
Antenna Antenna
4
