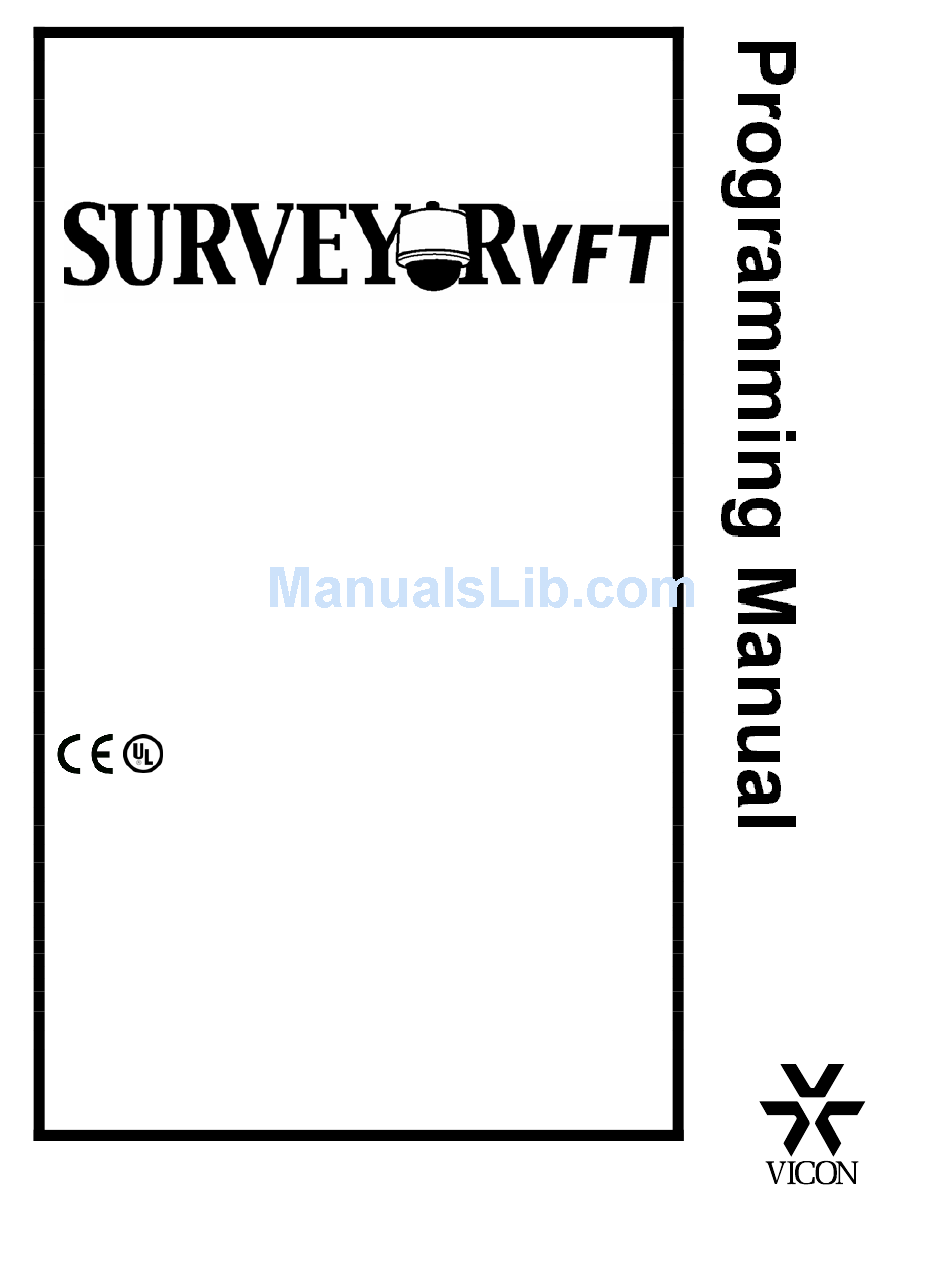

Vicon SurveyorVFT Programming Manual

Hide thumbs Also See for SurveyorVFT:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual
XX134-44-00

Camera Dome

Warning: To reduce a risk of fire or electric shock, do not expose the
indoor unit to rain or moisture.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2009 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon, SurveyorVFT and ViconNet and their logos are registered trademarks of Vicon Industries Inc.
NOVA and Vicoax and their logos are trademarks of Vicon Industries Inc.
ExView is a registered trademark of Sony Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8134-44-00
Section 3 Rev 1009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SurveyorVFT and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon SurveyorVFT

Summary of Contents for Vicon SurveyorVFT

  • Page 1: Camera Dome

    Warning: To reduce a risk of fire or electric shock, do not expose the indoor unit to rain or moisture. Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation.
  • Page 3 The product shows a significant change in performance. For units that CAN BE DISCONNECTED from the power 20. Replacement Parts - Use only Vicon specified replacement source, use a damp cloth for cleaning. parts or an approved equivalent to prevent unit damage and For units that CANNOT BE DISCONNECTED from the injury.

  • Page 4: Fcc Notice

    Warning: Power must be removed from this unit before removing circuit modules or ribbon cables. Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static discharge. Take all necessary precautions to prevent static discharge iv • FCC Notice XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 5: Table Of Contents

    Contents Introduction .........................1 Software Features .......................3 Programming Menus......................5 Camera Controller ............................8 Alarm Handling .............................15 Relay Driver..............................17 Source Titling..............................17 Preset/Tour Handler .............................19 Scheduler/Time of Day..........................22 Language...............................23 Install Defaults ..............................24 Contents • v XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 7: Introduction

    Introduction This manual details the programming features of the SurveyorVFT®. This manual is intended to be used in conjunction the SurveyorVFT Installation and Operation manual. Programming can be performed with a keypad ® input device or a compatible personal computer equipped with the Vicon SurveyorVFT Direct Control software.
  • Page 8 NOTES 2 • Introduction XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 9: Software Features

    The camera dome retains its capability of zoom, focus and iris control while locked. Preset 93 (Set Response Line Polarity) (Duplex Only) — The SurveyorVFT checks for polarity of the command in lines through the auto baud detect feature. The baud detect cycles through 4800+/4800-/9600+/9600- /19200+/19200-, indicating not only the baud rate it is searching for but also the polarity that the receive lines are set to.
  • Page 10 Recalling preset 95 has no effect. Preset 96 (Program Dome Sectors) — The SurveyorVFT has the ability to divide its 360° field-of-view into sections or sectors. There may be up to 16 sectors and the boundaries for each are programmed for each individual dome.

  • Page 11: Programming Menus

    This feature allows the user to set the optimum speed for each individual camera. With the SurveyorVFT, the operator is able to customize camera performance.
  • Page 12 This is used when mounting the dome in an inverted position. When enabled, be aware that certain functions are reversed to compensate for the image flip. 6 • Programming Menus XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 13 FNR used. This is more noticeable if WDR is enabled. The SurveyorVFT 35X model offers a selection of CCD Mode, with a choice of Normal or High Sensitive mode. Note that both of these are Progressive mode, which provides better vertical resolution, especially during motion.

  • Page 14: Camera Controller

    Autoiris level from the keypad, when disabled, which is the default setting. Note: The SurveyorVFT allows the iris to be switched between auto and manual in simplex. A temporary message (2 seconds) displays indicating auto or manual iris whenever the iris mode is switched.
  • Page 15 Note: The SurveyorVFT must be set in an Auto Shutter mode in the Shutter Speed menu for Wide Dynamic Range or any Auto Night Mode levels to operate.
  • Page 16 “roll” when switching from one camera to another. This adjustment is also a sliding scale, from 0 to 360 . When set to 360 , the camera will be locked to an internal crystal. 10 • Programming Menus XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 17 The Aperture Adjust allows the user to set the edge quality of the total picture. The default is automatic. However, when manual is selected, the horizontal and vertical edge clarity can be finely adjusted. Programming Menus • 11 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 18 The White Balance allows the user to override the automatic color correction feature in the SurveyorVFT. To adjust the red and blue gain, white balance mode must first be changed to Manual (default is automatic). In manual mode, select either the Red Gain or Blue Gain menu and adjust that parameter on the sliding scale.
  • Page 19 Press A/P on Privacy Mask Zoom Level on the Systems Setting menu. Use the joystick to select Pmask number and program Zoom Level. The default zoom level is 1.0X, which means it will always display. Programming Menus • 13 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 20 The Digital Zoom Mode screen allows the digital zoom feature on the SurveyorVFT to be disabled (default setting is enabled). When the Zoom In button is held, the lens magnifies the image to the limit of the 22:1, 23:1 or 35:1 optical zoom, depending on the camera type.

  • Page 21: Alarm Handling

    A door contact on that door triggers the SurveyorVFT to take a picture of the person. At the same time, a relay driver completes a circuit, which locks the inner door, preventing open egress. Once in the vestibule, a motion detector connected to the dome senses that the person has moved over to the intercom and turns a brighter light on in the vestibule.
  • Page 22 The final menu choice available on the Alarm Input Controller menu is to Program Alarm Titles. This function and sub-menu are also available from the Source Titling menu and are reviewed in that section. 16 • Programming Menus XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 23: Relay Driver

    When Source Titling is selected from the programming menu, we enter the Display Controller series of sub-menus. These control another powerful feature of the SurveyorVFT, the ability to overlay numerous titles on top of the video image without the use of external devices.
  • Page 24 Note: Changing the text size from the defaults affects the privacy mask coverage. The Install Defaults option restores all camera titles and characteristics to their default settings. See menu in Install Defaults section. 18 • Programming Menus XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 25: Preset/Tour Handler

    The Preset/Tour Handler function manages the 79 presets, 8 tours and 2 autotours resident in the SurveyorVFT. These features are available to the operator regardless of the type of control device that controls the SurveyorVFT. The first sub-menu in the Preset/Tour Handler allows a choice from several options to Program Presets.
  • Page 26 Recall Status — Returns the camera to where it was when the Save Status command was issued. This is typically used at the end of a tour to restore the camera to where it was before the tour began. 20 • Programming Menus XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 27 Once. Edit Mode allows editing of the currently selected sequence by appending it or overwriting it. The Clear Autotour allows complete removal of the currently selected autotour number. Programming Menus • 21 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...

  • Page 28: Scheduler/Time Of Day

    Scheduler/Time of Day The Scheduler/Time of Day sub-menu allows configuration of the SurveyorVFT time base and actions. The Time Controls option allows setup of the Daylight Saving Time (manual or automatic), display format (12 or 24-hour time format and MM/DD/YY, DD/MM/YY or YY/MM/DD date format) and actual entry of time and date.

  • Page 29: Language

    There are 64 timed events from event numbers 1 - 64. Note: Events have priority over all other actions executed outside the SurveyorVFT menu system. However, accessing the menu system (preset 94) will take precedence over the execution of a timed event. Language The Language feature allows the selection of one of five languages: English, Spanish (Espanol), French (Francais), German (Deutsch) and Italian (Italiano).

  • Page 30: Install Defaults

    Install Defaults Finally, the Install Defaults option restores all SurveyorVFT settings to their factory defaults. This affects all programmed functions. The table below shows the main default settings; some defaults are camera dependent. When programming, keep a record of settings as a reference if for any reason the unit must return to factory defaults.

  • Page 31: Competitive Protocols

    Competitive Protocols SurveyorVFT provides the ability to work with certain competitive protocols. This section briefly describes the use of the onscreen menu system via specific competitive keypads and protocols. Before using competitive protocols, DIP switch SW2 must be set to the appropriate protocol. Refer to the latest version of Instruction Manual XX134- XX for a complete explanation of DIP switch settings.
  • Page 32 Philips keypad user manual and converters user manuals. To enable Philips protocol set SurveyorVFT SW2 DIP switch 7 to ON position. Switches 2-6 and 8 must be set to OFF. Communication with the SurveyorVFT using Philips protocol is supported at RS-422: 9600 baud, data bit 8, parity NONE, and stop bit is 1.
  • Page 33 Including Adjust Presets Preset Recall - Enter Preset Number, Preset Go V-Phase Menu system 94, Preset Set (Program Label screen appears), Pan and Tilt Lockout F2. Repeat to unlock. Competitive Protocols • 27 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 34 Repeat Pattern to repeat. Camera Off Not Supported Night Mode- Manual Not Supported Vicon Menu Alarms are not used. Alarms are always enabled. The dome will report to the AD keypad which alarm is activated (1-4) and the AD Camera On...
  • Page 35 KTD-404 does not support this Camera Control command. The store command was tested Including Adjust Presets using a terminal program. V-Phase Menu system Pan and Tilt Lockout Not Supported Competitive Protocols • 29 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 36 Ultrak When changing SurveyorVFT software addresses, the keypad may not respond to all 256 addresses. The workaround is to go to Ultrak KEGS Setup menu, option (3.1.2) and set every camera (256) to KD6. Function Keypress Function Keypress Enter Surveyor address on keypad and hi t Enter key.
  • Page 37 S ureyor preset 94 menu. To call back a preset enter preset P resets number on keypad and hit PRESET butto n. P an and Tilt Lockout Not supported Competitive Protocols • 31 XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 38 Enter. To save home position preset use Dome Pan and Tilt Lockout menu. NOTE: Dome "PTZ timeout" menu feature is not enabled due to Philips protocol PTZ control delay limitation. 32 • Competitive Protocols XX134-44-00 Rev 1009 SurveyorVFT Camera Dome Programming...
  • Page 39 Cohu To launch SurveyorVFT menu use Preset 64 + Store. Use Focus Far button to select and save options. Use Iris Close button to abort or exit options. Move mouse cursor up and down on Not Supported Pan/Tilt pane to select and highlight Dome menu options.
  • Page 41 (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. Vicon reserves the right to make changes to its software in any of its products at any time and without notice.
  • Page 42 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
