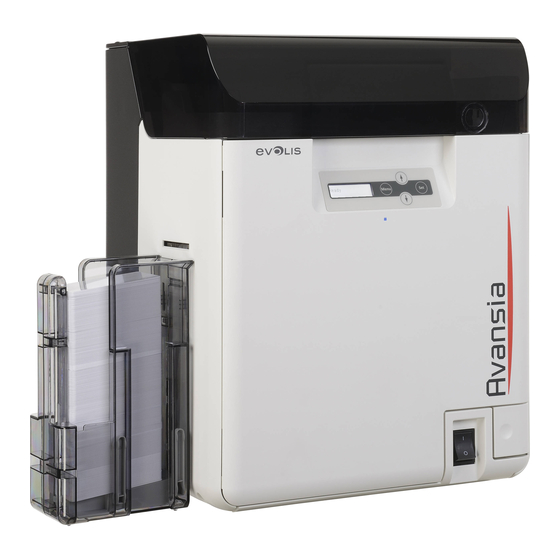

Evolis Avansia User Manual

Card printer
Hide thumbs Also See for Avansia:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avansia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evolis Avansia

Summary of Contents for Evolis Avansia

  • Page 2: Copyright Notice

    All the information contained in this document is subject to change without prior notice. Evolis Card Printer cannot be held liable for any errors that may be found in this manual, or for any loss or damage arising accidentally or as a result of dissemination or use of this manual.

  • Page 3: Warranty Registration

    As with all Evolis products, a great deal of care has been taken over this manual. Should you find an error, however, please let us know by emailing us at info@evolis.com.

  • Page 4: Getting Started

    Evolis reseller, who will tell you the procedure to follow. Evolis takes great care over the quality of its packaging and we ask that you keep this packaging somewhere clean and dry.

  • Page 5: Operating The Printer Safely

    1-2 Operating the printer safely The following precautions must be observed to assure safe operation of the printer. Also, do not do anything that is not described in this manual. Doing so may cause an unexpected accident. Installing location ä Do not install the printer: in a damp or dusty location on an unstable table, on a slant, or any place where there is excessive vibration.

  • Page 6: Security Cable

    Handling ä Do not use flammable sprays near the printer. Do not touch anything inside the printer unless specified in this manual. Do not place heavy items on the printer and do not lean on the printer. While the printer is operating do not turn off the printer, unplung the power cable, or look inside the printer. The cooling fan is always running for cooling the inside of the printer.

  • Page 7: Description Of The Printer And Its Functions

    1-3 Description of the printer and its functions 1-3a FRONT SIDE OF THE PRINTER - Top cover - Control Panel - Front cover - Front cover button - On-off switch - Card output hopper - Card ejection slot 1-3b INSIDE OF THE TOP COVER - Card input feeder - Feeding roller - Trapdoor cover...

  • Page 8: 1-3C Rear Side Of The Printer

    1-3c REAR SIDE OF THE PRINTER - Reject slot - Peripheral USB socket - Ethernet socket (Lan cable port ) - Port for enhancing function - Security cable slot (OPTION) - Power cable socket (PC) (10/100) - Filter RS-232C(PC) RS-232C(OPTION) 1-3d FRONT COVER - Card feeding wheel - Reverse feeding wheel...

  • Page 9: Installation

    1-4 Installation 1-4a CONNECTING THE OUTPUT HOPPER Insert the hooks of the provided Card output hopper to the holes by the Card Ejection Slot. The output hopper is delivered with the printer. Plug it before using the printer.

  • Page 10: 1-5A Connecting The Reject Box

    1-5 Installation 1-5a CONNECTING THE REJECT BOX Insert the hooks of the provided Card reject box to the holes. The reject box is delivered with the printer with encoding options. Plug it before using the printer.

  • Page 11: Connecting The Usb Cable

    1-5b CONNECTING THE PRINTER Connection to the power supply ä The printer must be connected to a properly protected and earthed electrical installation. FI: Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan. NO: Apparatet må tilkoples jordet stikkontakt. SE: Apparaten skall anslutas till jordat uttag. This is a Class B device.

  • Page 12: 1-5C Ribbons And Films

    For optimum print quality, Evolis recommends that the printer is fully cleaned every time the ribbons and films are changed. See the Servicing and Maintenance section of this manual.

  • Page 13: Changing The Ink Ribbon

    Changing the ink ribbon ä Before changing the ink ribbon you have to know about the Evolis electronic key which is delivered with every color ribbon. Ê You will have to install the ribbon first and then install the key inside the printer as demonstrated below.

  • Page 14: Fitting The Ink Ribbon

    Take up the ink ribbon slack. Turn the wheel as shown and take up the ribbon slack. Î Insert the ink ribbon cassette until a «click» is heard. Ï Put the Evolis electronic key in the key holder like shown page 13. Ð Close the front cover. Ñ...

  • Page 15: Changing The Transfer Film

    Changing the Transfer film ä The transfert unit includes parts heated to high temperatures. Be careful not to put your fingers inside the module. Follow the safety instructions. Ê Open the printer cover. Ë Remove the Transfer film cassette. Ì Push down the pin on the top of the Transfer film cassette.
  • Page 16 Ï Take up the Transfer film slack. Turn the wheel at right and take up the film slack. Ð Insert the Transfer film cassette into the printer until a click is heard. Ñ Close the front cover. Ò Press the SET key when [Push SET Key] appears on the LCD. Ò...
  • Page 17 Replacement of the Cleaning Roller ä An adhesive cleaning roller is delivered with the Transfert film, it has to be installed each time you change the film. Ê Open the front cover. Ë Remove the cleaning tape cassette. Ì Lift up the tape spindle. Í...
  • Page 18 Evolis recommends the use of cards specially designed for Retransfer purposes. For more information, please contact your Evolis reseller who will advise on your choices. Be extremely careful to ensure that magnetic strip cards and contact smartcards are properly positioned in the card feeder.

  • Page 19: Cards Orientation

    Cards orientation ä The printing side of the card is the surface on the front side of the card feeder (see pictures Ê Ë Ì Pre printed cards (Front surface) Contact smartcards (Front surface) Front side of the card feeder Ê...

  • Page 20: Adjusting Card Thickness

    Adjusting card thickness ä The printer accepts card thickness of 0.76mm (30mil). However depending on card thickness tolerance, it may be necessary to ajust it manually. The card thickness gauge is underneath the card feeder. Adjusting card thickness please proceed as follows: Ê...

  • Page 21: Loading The Cards

    Loading the cards ä Ê Open the top cover and open the card feeder as shown. Ë Adjust the gauge setting to match the thickness of your cards Ì Hold the card retainer lever with your fingers and pull it right out. ...

  • Page 22: Removing Printed Cards

    Removing printed cards ä Once the print and/or encoding cycle is complete, cards are delivered by default into the output hopper found on the left of the device. The hopper has a maximum capacity of approximately 250 cards. Users can select from three methods to collect cards from the output hopper: Front side of card visible –...

  • Page 23: Optimizing Transfer Conditions

    Optimizing transfer conditions ä In order to optimize the transfer quality you can change the Retransfer settings according to your card type. Thanks to the LCD Panel or the printer driver you can select the card type, then the transfer speed and the transfer temperature. Ê...

  • Page 24: Left Side

    Rejected card management ä Your printer is equipped with a reject slot, the purpose of which is to separate correctly customised cards from incorrect cards. Incorrect cards are automatically ejected from the slot at the right of the printer. It is possible to switch the Card ejection slot. To do so, please follows the instructions below: Ê...

  • Page 25: Installing The Print Driver

    It is therefore essential to proceed in stages, changing settings only when you are completely sure. Evolis offers the option to revert to the factory settings at any time if the adjustments made do not give the expected results.
  • Page 26 ® consumables. Pay attention to the settings defined under the print driver Properties and do not hesitate to contact your Evolis reseller for any advice and assistance needed before making any changes. These print settings are accessible: From the Start button found bottom-left on the Windows task bar, select Printers and faxes.
  • Page 27 “Card” tab ä Front/back printing Card orientation, portrait or landscape Number of copies “Graphics” tab ä Color settings Black panel settings Gamma “Configuration” tab ä Type of cards Edge adjustement Type of ribbons “Maintenance” tab ä Printing test Printer details ID Key information Printer operation panel...

  • Page 28: Printing A Card

    In Microsoft Word ® ä After having set the Evolis printer as the default: Start the MS-Word application Click on the File in the menu bar, then on Page Setup The Paper tab has a Paper Size option, select CR80 Card In the Margins tab, set all margins to ‘0’, then in the Orientation section, select Landscape.
  • Page 29 2-4 Connecting to a network (Ethernet) All Evolis printers have the benefit of a TCP/IP network connection mechanism. This feature is available as standard or as an option, depending on the model in the range. Out of the box, the printer comes configured in DHCP mode (Dynamic Host Configuration Protocol), which means that its IP address is supplied by the network.

  • Page 30: Changing Network Connection Settings

    Changing Network connection settings ä You can configure internet communications settings such as the individual printer ID and TCP/IP-related settings. Ê Switch from Normal Mode to User Mode Ë Press the Key until [Interface Setup] is displayed. Press the SET Key Ì...

  • Page 31: Maintenance

    ® approved by Evolis may as a consequence affect the quality and reliability of print jobs, produce low quality printed output and even affect the printer’s operation. The manufacturer’s warranty does not cover physical damage or quality problems caused by using non-...

  • Page 32: Routine Printer Cleaning

    3-2 Routine printer cleaning Recommended cleaning cycle: After printing about 1000 cards. Servicing accessory: Adhesive cleaning card. Remove any cards that are inside the printer. Do not touch the roller with your hands. Cleaning cards can only be used once. The frequency and quality of cleaning are determining factors in enabling the user to prolong the life of the print head and printer.
  • Page 33 Follow the procedure below: Ê Switch from Normal Mode to User mode (see section 4-1b). Ë Press the t Key until [Cleaning] is displayed, then press the SET Key. Ì Then [Cool down...] is diplayed, wait until the figure drops to 70 or lower. The figure indicates the temperature of the heat roller.
  • Page 34 Ï When [Remove cards] is diplayed, open the top cover. Ð Open the cards feeder and remove the cards from the cassette. Ñ When [Set Cleaning Crd] is displayed, load the cleaning card in the feeding slot. Align the adhesive side of the cleaning card to the right.

  • Page 35: Servicing The Cleaning Roller(S)

    3-3 Servicing the cleaning roller(s) The cleaning roller(s) remove(s) any dust or particles from the cards before printing. Recommended cleaning cycle: when cards are printed with missing colors or if there are foreign objects on them. Follow the procedure below: Ê...
  • Page 36 Open the top cover and remove the card feeder. Ì Clean the roller clean with an Evolis’ wipe as shown. Turn the roller as you wipe it to clean it in the direction of the arrow. Í Load the card feeder.
  • Page 37 Open the front cover and the top cover. Í Lift the decurl section. Î Wipe the roller clean with an Evolis’ cotton swab fully moistened with water. Ï Return the decurl section to its original position. Close the top cover and front cover. Decurl Section Ë...
  • Page 38 Í Rotate the reverse wheel. Î Locate the reverse section roller as shown. Ï Wipe the roller clean with an Evolis’ wipe as shown. Ð Rotate the reverse leading wheel and fully clean the roller. Ñ Close the front cover.
  • Page 39 3-6 Servicing the filter cleaning Recommended cleaning cycle: monthly. Ê Turn off the printer. Ë Remove the filter cover on the rear of the printer. Ì Remove the filter from the filter cover. Í Use a vancuum cleaner to clean the filter. Î...

  • Page 40: Primary Transfer Feeding Roller Cleaning

    Insert a flat screwdriver into the groove on the end of the feeding roller. Ï Turn the screwdriver, and wipe the feeding roller inside the printer using an Evolis cotton swab. Ð Return the ink ribbon cassette and the Transfer film cassette to their original positions.

  • Page 41: Cleaning The Print Head

    Open the front cover and remove the ink ribbon cartridge and Transfer film cartridge. Ì Use an Evolis’ cotton swab to clean the heating element of the print head. Be careful of static electricity when cleaning the print head to avoid issues such as electrostatic damage to the print head.
  • Page 42 This section gives suggestions allowing problems that may arise when using your printer to be pinpointed. If you do not manage to solve your problem, this section also explains how to contact Evolis technical support. 4-1 Introduction to the printer menu printer has an LCD unit and LED indicator enabling the operator to see the operating condition of the equipment and make adjustments to the most common settings.

  • Page 43: 4-1A Normal Mode

    In the event of operator intervention activating the menu, the LCD unit is converted into a dialogue and configuration support interface. The LCD is set in english and Chinese. Generally speaking, unless otherwise indicated, navigation works as follows: 4-1a NORMAL MODE Normal Mode is used for printing cards.

  • Page 44: 4-1B User Mode

    4-1b USER MODE User Mode is used to set operations and check the status of the printer. To switch from Normal Mode to User Mode, follow the procedure below : Ê Press the Power Switch to turn on the power. When the power starts and the printer turns on in Normal Mode, and [Ready] appears on the LCD Panel.

  • Page 45: Warnings And Diagnosis

    4-2 Warnings and diagnosis Although the Evolis printer was designed to work independently, keeping user involvement to a minimum, it may nonetheless prove useful to gain some familiarity with the main warnings. LCD Display Action required Push SET Key Press the SET Key.
  • Page 46 Warnings and error messages LCD Display Description Action required Cover Open The front cover is open. Close the front cover. Feeder Empty There are no more cards. Load cards into the card feeder. Ensure the environment temperature is Low Temperature The temperature in which the printer is located is too low.
  • Page 47 Warnings and error messages LCD Display Description Action required Remove the cards by rotating the There is a card jam. ejection dial and press the SET Key. Remove Card:fdr Remove the cards by rotating the Remove Card:flip There is a card jam. Ejection Dial, and press the SET Key.

  • Page 48: Diagnosis Help

    4-3 Diagnosis help In this section, you will find all the information you need to carry out a few simple checks that you may be asked to run by your Evolis dealer to help you as effectively as possible. Identifying installed software versions ä...

  • Page 49: Troubleshooting

    Check that the ink ribbon and the Transfer film are not finished or damaged. Replace them or re-install them if necessary. Ë The print head may be damaged Print a test card. If the test card does not print, contact an Evolis reseller for technical support or visit the website at www.evolis.com.
  • Page 50 Use of incompatible cards. Check that the cards used match the specifications. We recommend that you obtain your cards from an Evolis reseller. Use of cards obtained elsewhere is liable to adversely affect print quality and/or damage the print head.
  • Page 51 The card is bent Secondary transfer conditions are not optimum. See section correct card curl. Print flakes off Secondary transfer conditions are not optimum. Set secondary transfer conditions in accordance with cards used. White cards Check that the ink ribbon is fitted correctly.

  • Page 52: Partial Or Incorrect Printing

    Should horizontal straight lines appear on printed cards, it is likely that the print head is dirty or damaged. See the section on maintenance and troubleshooting. If the problem persists, contact an Evolis dealer or visit the website at www.evolis.com.
  • Page 53 Correcting card curl ä Ê Switch from Normal Mode to User Mode (see section 4-1b) Ë Press the t key until [Card Setup] is diplayed. Then press the SET Key. Ì Press the t key until [Decurl Time(s)] is diplayed. Then press the SET Key. Í...

  • Page 54: 4-4B Freeing Jammed Cards

    4-4b FREEING JAMMED CARDS Do not turn your printer off, as this cancels pending print jobs in the printer’s memory. Never use any kind of tool (screwdriver, sharp object, etc.) to free the card. You risk causing serious damage to the rollers, especially the unit’s hot roller.
  • Page 55 Freeing a card in card feeder ä When a card becomes jammed in the card feeder, the message ‘Card Jam Feeder’ appears on the control panel display. Print jobs are interrupted. Do not turn the device off, as this will result in the loss of current print jobs stored in the printer’s memory. Ê...
  • Page 56 If the Retransfer unit is too hot, turn the printer off and wait for the module to cool down (this can take several minutes). Try once more to free the card manually. If, despite your best efforts, the card remains jammed, contact your Evolis reseller for on-site assistance from an engineer.

  • Page 57: 4-4C Replacing The Print Head

    Nonetheless, the print head may sometimes need to be replaced. Before doing anything else, please contact your Evolis reseller in order to check the advisability of replacing the print head. The reseller will supply a new print head if need be.

  • Page 58: 4-4D Updating The Firmware (Under Windows)

    Updating the firmware is a simple operation but one which, if not properly completed, can result in your printer breaking down. Before any update, please contact your Evolis reseller who will be able to guide you on the advisability or otherwise of carrying out an upgrade.

  • Page 59: Reduce Printer Power Consumption

    4-5 Reduce printer power consumption Select the power saving mode for when the printer is not being used. Ê Switch from Normal Mode to User mode (see section 4-1b) Ë Press the t Key until [Printer Setup] is displayed, then press the SET Key. Ì...

  • Page 60: Counting The Number Of Cards That Are Printed

    4-6 Counting the Number of cards that are printed You can also count the number of cards that have been printed in a specidifed period of time by resetting the count with the SET Key. Ê Switch from Normal Mode to User mode (see section 4-1b) Ë...
  • Page 61 4-7 Checking the types of Ink ribbon and Transfer film that are loaded Ê Switch from Normal Mode to User mode (see section 4-1b). Ë Confirm that [Printer Info] appears, and press the SET Key. Ì Press the t Key until [Ribbon Type] or [Film Type] is displayed. Printer Info.

  • Page 62: Checking The Program Version And Serial Number

    4-8 Checking the program version and serial number Ê Switch from Normal Mode to User mode (see section 4-1b) Ë Press the t Key until [Version] is displayed, then press the SET Key. Ì Press the t/s Keys to display the information to check. Normal Mode User Mode MENU...

  • Page 63: Turning The Error Alarm On Or Off

    4-9 Turning the Error alarm ON or OFF The initial setting is for the buzzer to sound when an error occurs. You can set the buzzer so that is does not sound. Ê Switch from Normal Mode to User mode (see section 4-1b) Ë...
  • Page 64 4-10 Others functionalities Some extra functionalities are by factory default disabled, here we will see how to enabled them. Parallel print ä By default the Parallel Print is OFF, the printer does not print another card until the previous card finishes printing (prints one card at a time). This functionality allows the printer to performs parallel processing (continuous printing).
  • Page 65 Short Size Print ä This functionality turns partial printing of color data on and off. By default the printer always prints (temporary transfer) on the entire surface of card. If you turn the Short Size Print ON the printer will perform partial printing (primary transfer) on the effective area (zone with data other than 0 tone) only within color data.

  • Page 66: Technical Support

    Evolis will pass on the contact details of your nearest Evolis reseller. When calling an Evolis reseller, you do need to be close to your computer and ready to provide the following information: Ê...

  • Page 67: A1 - Technical Specifications

    Appendix A A1 - Technical specifications This section presents your printer’s technical printing properties. General features ä Dual-sided printing (standart) Reverse transfer printing Over the edge printing Color dye sublimation and resin monochrome retransfer 600 dpi print head (23.6 dots/mm) Bitmap: 24 bits, R/G/B 256 level Printout: Y/M/C 256 level 64 MB of memory (RAM)

  • Page 68: Card Management And Specifications

    Delivered with any printer including encoding option(s) Evolis High Trust ribbons ® ä To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust ® ribbons. Ribbon capacity: Clear Transfer film: 500 prints/roll...

  • Page 69: Operating Environment

    Software ä Compatible with Windows XP SP2 32, Vista 32, W7 32/64 and W8 32/64 Display ä Two-line LCD display and LED status indicator Printer graphical notifications: empty input hopper, empty/low level ribbon alert... Certifications and statement of compliance ä RoHS CE, FCC, UL, IEC Power supply...

  • Page 70: Size And Weight

    Size and weight ä Dimensions (HxWxD): 436x340x297 mm (17.16’’x13.38’’x11.69’’) Weight: 20 kg (44.09 lbs) Warranty ä 3 years for printer, lifetime warranty on print head Warranty subject to observance of specific conditions and use of Evolis High Trust ribbons ®...

  • Page 71: B1 - Encoding Options

    B1a - MAGNETIC STRIP ENCODING A printer fitted with a magnetic encoder works in exactly the same way as a basic card printer. The Evolis encoder encodes the magnetic strips in a single pass then runs a data check.

  • Page 72: Card Positioning

    Card positioning ä You can set the orientation of loading magnetic cards. You can also change the settings by using the printer driver. This setting is only available when the optional encoder unit is attached. Ê Switch from Normal mode to User mode. Ë...

  • Page 73: Configuring The Windows Print Driver

    Configuring the Windows print driver ä Coercivity sets the magnetic encoding to high (HiCo) or low (LoCo) coercivity. A magnetic strip that is encoded in high coercivity is more resistant to external disturbance than a magnetic strip encoded using low coercivity. How to configure the coercivity: Ê...

  • Page 74: B1B - Contact Smartcard Encoding

    B1b - CONTACT SMARTCARD ENCODING A printer fitted with a smartcard contact station works in exactly the same way as a basic card printer. The Evolis smartcard contact station is used to program chips to ISO 7816-2 standards. Contact station location ä...
  • Page 75 [Reverse] : The IC terminal is on the rear surface of the card Ê Open the Top cover. Ë Open the card feeder. Ì Insert IC cards depending on the mode. The IC cards should be always positioned with the IC terminal near the cover top.
  • Page 76 Refer to the Evolis printer SDK for further details on programming smartcards. The Evolis product catalogue has printers equipped with a chip contact station and a built-in encoder. Depending on the model, these encoders connect to the PC via a USB interface.

  • Page 77: B1C - Contactless Smartcard Encoding

    Evolis printers may be equipped with an encoding device for contactless smartcards (RFID). This consists of an encoding module and sometimes a detachable antenna. Integration of such a module must be carried out by specialist. The Evolis product catalogue has printers equipped with a built-in encoder for contactless chips.

  • Page 78: Computer Connection

    The command sequence is as follows: A card is moved from the feeder towards the antenna and is positioned nearby. The chip is programmed via the built-in encoder and the computer. Refer to the Evolis printer SDK for further details on programming contactless smartcards.
  • Page 79 Appendix C C1 - Certifications C1a - IC REGULATIONS Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause inteference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 80 (RSS-102) ä IMPORTANT NOTE: Radiation Exposure Statement The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used.
