TECHNICAL
NOTE

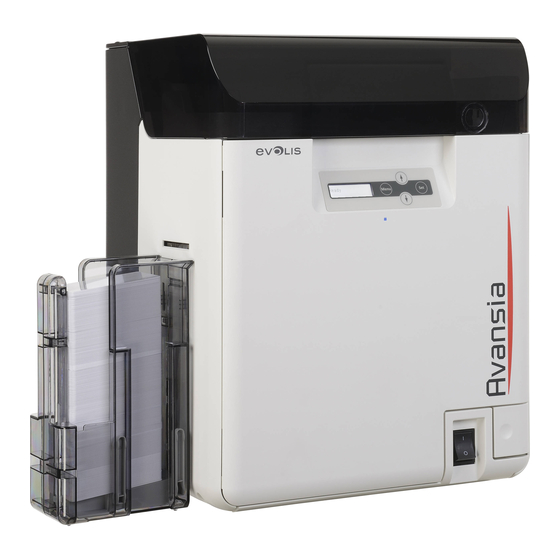

How to clean AVANSIA?
Editorial
Indice
Staff
21-03-2016
A0
CONTENT
ROUTINE PRINTER CLEANING..........................................
MANUAL PRINTER CLEANING .........................................
Modification
Author:
type :
Creation
NF
INTRODUCTION
This documentation explains how to clean Avansia:
•
Routine printer cleaning
•
Manual printer cleaning
Note: To optimize printing quality, Evolis recommends
these cleaning cycles frequencies:
Routine printer cleaning - Every 1000 printing cards
Manuel cleaning - Every 10000 cards
2
6
9
10
15
18
20
24
27
29
