- Page 1 Lan Master™ T8 8 port Ethernet Hub with SIC Slot SSEMBLY NSTRUCTIONS...
-
Page 2: Table Of Contents

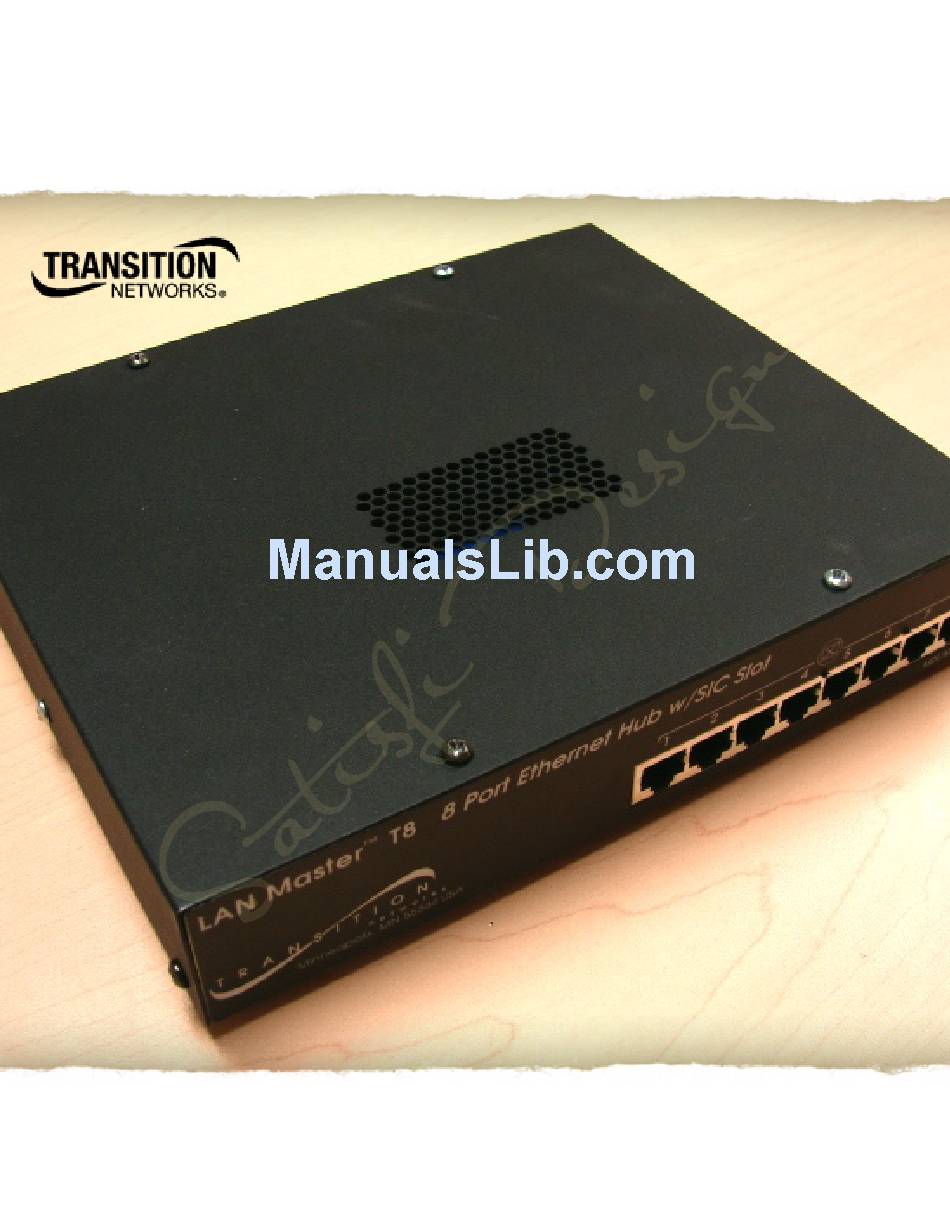

The Lan Master™ T8 is an eight-port Ethernet Hub which allows computers to communicate with each other. Up to eight (8) computers can be plugged in to the Ethernet Hub at one time. Putting together your Transition Networks ® Lan Master™ is easy. Simply follow the instructions and illustrations, and in minutes your Ethernet Hub will be ready for use! (See Instruction Manual for how to use your Lan Master™... -
Page 3: Parts List
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 0.1 Parts List Platform Circuit Network Board Power Supply Printed Circuit Board Saddle Grounding Cable Input Power Conduit Cover Nuts (3) Washers (11) Size 1 Screws (5) Size 2 Screws (14) -
Page 4: Side Labels For Platform And Cover
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 0.2 Side Labels for Platform and Cover Side B Side C Side A Side D Side B Side C Side A Side D Figure 0.2 Page 3... -
Page 5: Installing The Circuit Network Board
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 1.0 Installing the Circuit Network Board Figure 1.0 1.1 To position the Circuit Network Board 1.1.1 Locate the five (5) screw holsters near side A and side D of the platform. - Page 6 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 1.2 To secure the Circuit Network Board Screw Holes Figure 1.2.1 1.2.1 Align the screw holes of the Circuit Network Board with the screw holsters of the platform. 1.2.2. Place one (1) washer on top of each screw hole and insert Size 1 Screws.
- Page 7 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 The Installed Circuit Network Board Figure 1.3 Page 6...
-
Page 8: Installing The Power Supply Printed Circuit Board
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 2.0 Installing the Power Supply Printed Circuit Board Figure 2.0 2.1 To position the Power Supply Printed Circuit Board 2.1.1 Locate the four (4) remaining screw holsters near side A and side B of the platform. - Page 9 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 2.2.2. Place one (1) washer on top of each screw hole and insert Size 2 Screws. Figure 2.2.2 2.2.3. Tighten the screws by turning the Phillips screwdriver clockwise. Tighten until the screw does not turn easily anymore.
-
Page 10: Connecting The Circuit Boards
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 3.0 Connecting the Circuit Boards Figure 3 3.1 To link the circuit boards via the saddle 3.1.1. Plug the saddle into the Power Supply Printed Circuit Board as shown. - Page 11 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 The Connected Saddle Figure 3.2 3.2 To attach the Grounding Cable to the Power Supply Circuit Board 3.2.1. Place one (1) washer on the integrated screw next to Side B of the Platform.
- Page 12 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 3.2.3. Connect the Grounding Cable into the Power Supply Printed Circuit Board as shown. Figure 3.2.3 The Connected Grounding Cable Figure 3.3 Page 11...
-
Page 13: Installing The Input Power Conduit
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 4.0 Installing the Input Power Conduit Figure 4.0 4.1 To connect the Input Power Conduit Power Converter Stabilizer Keyhole Wire Connector Plug Figure 4.1 4.1.1. Place another (1) washer on the integrated screw of the Platform as shown. - Page 14 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 4.1.2. Insert the keyhole wire, stabilizer, and connector plug of the Input Power Conduit into the Platform hole on Side C. Figure 4.1.2 4.1.3. Snap the connector plug into the Power Supply Printed Circuit Board as shown.
- Page 15 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 4.1.4 Rotate the power converter so it is right-side up. ✓ ✗ Figure 4.1.4 4.1.5 Lay the keyhole wire over the integrated screw. Figure 4.1.5 4.1.6. Place one (1) nut over the integrated screw and turn clockwise to tighten.
- Page 16 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 4.2 To secure the Input Power Conduit 4.2.1 Insert one (1) Size 3 Screw into hole of power converter and tighten. Figure 4.2.1 4.2.2. Place one (1) nut onto back of Size 3 Screw and tighten to secure.
- Page 17 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 Completed Interior Side B Side A Side C Side D Figure 4.3 Page 16...
-
Page 18: Securing The Cover
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 5.0 Securing the Cover Figure 5.0 5.1 To secure the Cover 5.1.1. Lay Cover onto Platform, lining up Sides A, B, C and D. Side B Side A Side D Side C Figure 5.1.1... - Page 19 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 5.1.2. Screw on the top using four (4) Size 2 Screws. Figure 5.1.2 5.1.3. Make sure that each screw is flush with the Cover (see Figure 5.1.3). ✓ Figure 5.1.3 5.1.4.
- Page 20 ® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 CONGRATULATIONS! The assembly is now finished. Enjoy your Lan Master TM T8 8 port Ethernet Hub with SIC Slot Page 19...
-
Page 21: Revision History
® Transition Networks Lan Master TM T8 Assembly Instructions Version 1.1 Revision History Version Date Author Description 20-Nov-08 C. L. Johnson Release 25-Nov-08 C. L. Johnson Figures labelled and made clearer. Notes added. Figure added for 5.1.4. Page 20... - Page 22 Caitlin L. Johnson Pre-planning for Assembly Instructions UDIENCE Literate adults (late teens and older) learning English as a second language URPOSE • Test and learn English through written directions • Use illustrations and process of assembly to check English ONTEXT An educational program teaching ESL to young adults and adults purchased the machine and assembly instructions to give the students a practical way to practice what they had learned.
