LANMASTER T16 16-PORT HUB
SPECIFICATIONS
Standards
IEEE 802.3
Physical
Dimensions
431 mm x 162 mm x 45 mm
Input Power
Universal Power Supply
Input Range:
90 to 265 VAC at 47 to 63 Hz.
AC Input:
TN PN Requirement
3344
120 volts, 60 hertz
3344
100 volts, 50-60 hertz
3347
230 volts, 50 hertz
3348
240 volts, 50 hertz
3349
240 volts, 50 hertz
3522
230 volts, 50 hertz
Environment
Temperature:
0-50°C (32° to 122° F )
Humidity
10-90%, non condensing
Altitude
0-10,000 feet
Warranty
5 years
21
Location
USA/Canada/Mexico
Japan
Europe
Australia
United Kingdom
South Africa
LANMaster™ T16
16-Port Ethernet™ Hub
(E-TBT-HB-1600)
For assistance in installing, using, or
maintaining the TRANSITION Networks
LANMaster T16 16-Port Ethernet™
Repeater Hub, contact TRANSITION
Networks Technical Support
(800) 260-1312
or contact your local distributor.
33023.A
at:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks E-TBT-HB-1600
Summary of Contents for Transition Networks E-TBT-HB-1600
-
Page 1: Specifications
Location USA/Canada/Mexico Japan Europe Australia United Kingdom South Africa LANMaster™ T16 (E-TBT-HB-1600) 33023.A For assistance in installing, using, or maintaining the TRANSITION Networks LANMaster T16 16-Port Ethernet™ Repeater Hub, contact TRANSITION Networks Technical Support (800) 260-1312 or contact your local distributor. - Page 2 CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network. Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen...
-
Page 3: Table Of Contents
ETHERNET CABLE SPECIFICATIONS Maximum number of terminal devices on Ethernet network: 10BASE-5 Cable and Connector Specifications The physical characteristics of the 10BASE-5 cable must meet or exceed IEEE 802.3 10BASE-5 specifications. 10BASE-5 Cable Characteristics: Cable type: RG8 Solid Coaxial (ThickNet) Impedance: Capacitance: 26pF/ft... -
Page 4: Introduction
1. INTRODUCTION This guide is intended for the system or network administrator responsible for installing and monitoring a TRANSITION Networks LANMaster™ T16 16-Port Ethernet™ Repeater Hub. A working knowledge of local area network (LAN) operations, including familiarity with communications protocols used on interconnected LANs, is assumed. -
Page 5: Networking The Lanmaster T16
Warranty Statement A. Five Year Warranty Transition Networks, Inc. (TN) warrants, for a period of five years, that TN products (with the exception of power supplies and fans that TN warrants for two years) will be free from defects in materials and workmanship, and will be in conformity with TN’s specifications. TN’s warranty on products manufactured by or assembled for TN in accordance with a customer’s specifications, is a five-year warranty that the goods conform to such specifications. -
Page 6: Connectors, Switch, Indicators

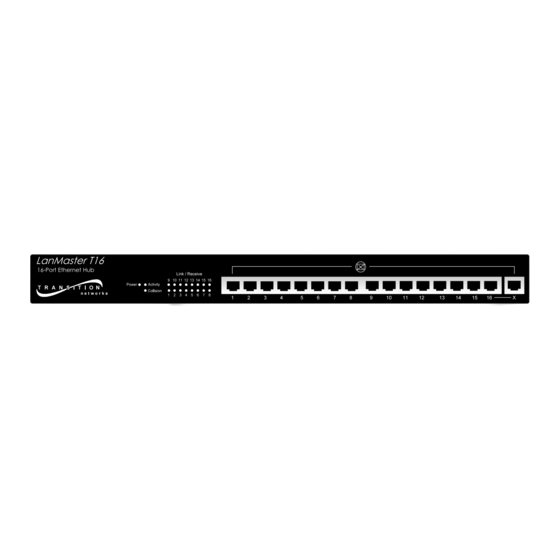

Connectors, Switch, Indicators CONNECTORS LED Indicators Straight-through RJ-45 Connectors Crossover RJ-45 (X) Connector Sixteen (16) straight-through RJ-45 connectors, labeled 1-16, and one (1) crossover RJ-45 connector, labeled X, are located on the front of the LANMaster T16. AUI Connector BNC Connector One (1) AUI connector, one (1) BNC connector, and one (1) AC power connector are located on the back of the LANMaster T16. -
Page 7: Operation
4. OPERATION The LANMaster T16 requires no intervention beyond occasionally monitoring the Power and Status LEDs. Monitoring Power LED The green Power LED indicates connection of the LANMaster T16 to external AC power. Monitoring Status LEDs The green Activity LED indicates network traffic. The yellow Collision LED indicates a network collision. -
Page 8: Installation
Direction is provided in the pages that follow. Unpacking the LANMaster T16 The LANMaster T16 packing contents should include the following: Item Part Number LANMaster T16 Hub E-TBT-HB-1600 (includes mounting brackets and screws, BNC T-connector and terminator, and adhesive-backed rubber feet) Power Cord 3344, 3347, 3348, 3349,... -
Page 9: Installing Lanmaster T16 At Site
Installing Thicknet 10BASE-5 Cable The LANMaster T16 provides a female AUI connector at the back for network connection to 10BASE-5 through an AUI drop cable or to 10BASE-2, 10BASE-T, or 10BASE-FL through a transceiver. CONNECTING TO 10BASE-5 USING AUI DROP CABLE To connect to 10BASE-5 cable using AUI drop cable: 1. -
Page 10: Installing Network Cable
Installing Network Cable 10BASE-T Requirements STRAIGHT-THROUGH/CROSSOVER CABLE/CONNECTOR NOTE: The 10BASE-T cable and RJ-45 jacks for hub to terminal device connections must be configured as straight through. The 10BASE-T cable and RJ-45 jacks for hub to hub connections must be configured as crossover. -
Page 11: 10Base-2 Requirements
Installing Twisted-Pair 10BASE-T Cable To connect 10BASE-T Cable to LANMaster T16 RJ-45 connectors: 1. Locate or build 10BASE-T cables that are: • 802.3 compliant (See page 20.) • straight through connector/cable configuration (See with page 7.) • male RJ-45 plug connectors at both ends. with 2. -
Page 12: 10-Mb/S Network Configuration Guidelines
10-Mb/s Baseband Network Configuration Guidelines Ethernet 802.3 specifications define network configuration guidelines for the 10-Mb/s baseband network: 10BASE-T, 10BASE-2, and 10BASE-5 cable segments can be installed as a single Ethernet collision domain if the cable segments are connected using repeaters. When connecting LANMaster T16 repeater hubs, the transmission path between any two Data Terminating Equipment (DTE) network devices...
