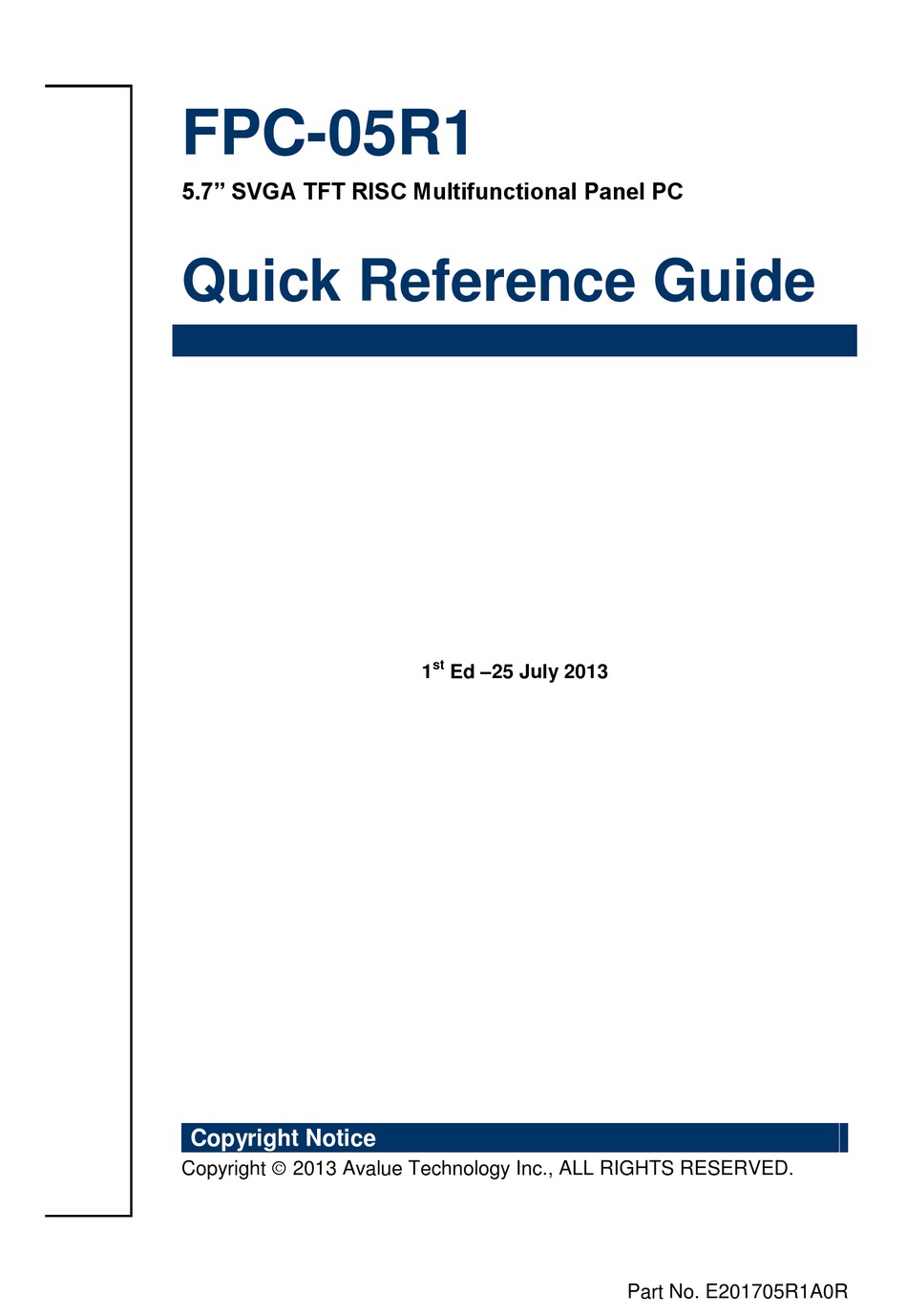

- Page 1 FPC-05R1 5.7” SVGA TFT RISC Multifunctional Panel PC Quick Reference Guide Ed –25 July 2013 Copyright Notice Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E201705R1A0R...
-
Page 2: Table Of Contents
Jumper & connector settings ................10 2.2.1 Serial port connector (COM) ...................... 10 2.2.2 Boot Mode selector (DIP) ......................11 2.2.3 DC power-in connector (DC-IN) ....................11 2.2.4 Debug port connector (Debug port) ................... 12 2 FPC-05R1 Quick Reference Guide... -
Page 3: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x FPC-05R1 5.7” SVGA TFT RISC Multifunctional Panel PC 1 x CD/DVD-ROM contains the followings: ... -
Page 4: System Specifications
External I/O Serial Port 2 x DB9 (1xRS232/422/485, 1x debug port) Host: 2 x Independent USB interfaces (Type A) USB Port Client: 1 x Mini-USB connector Audio Port 2 x Speaker LAN Port 1 x RJ-45 4 FPC-05R1 Quick Reference Guide... - Page 5 CE/FCC Class A Vibration Test As standards Drop Test As standards Operating 0°C to 40°C (32°F to 140°F) Temperature Operating Humidity 0%~90% relative humidity, non-condensing Storage Temperature -20°C to 60°C OS Support Android Linux WinCE Win CE 6.0 FPC-05R1 Quick Reference Guide...
-
Page 6: System Overview
Right Side View Connectors Label Function Note SD Card Slot SD/SDHC card socket Right side USB on The Go connector Mini USB connector MINI USB Serial port connector DB-9 male connector GPIO General purpose I/O connector 6 FPC-05R1 Quick Reference Guide... -
Page 7: Left Side View
Rear View Connectors Label Function Note DC-IN +12V DC power-in connector Debug target application DB-9 male connector Debug port RJ-45 Fast Ethernet connector Boot Mode selector System power switch RESET Reset button USB1&2 USB 2.0 connector 1&2 FPC-05R1 Quick Reference Guide... -
Page 8: Hardware Configuration
2. Hardware Configuration Jumper and Connector Setting For advanced information, please refer to: 1- RSC-IMX51 Installation Guide or User’s Manual 2- AUX-MPCIE (Optional) Installation Guide. Note: If you need more information, please visit our website: http://www.avalue.com.tw 8 FPC-05R1 Quick Reference Guide... -
Page 9: Jumper & Connector List
Boot Mode selector MINI USB USB on The Go connector Right side System power switch RESET Reset button SD/SDHC card socket Right side SD Card Slot USB1&2 USB 2.0 connector 1&2 GPIO General purpose I/O connector FPC-05R1 Quick Reference Guide... -
Page 10: Jumper & Connector Settings
FPC-05R1 2.2 Jumper & connector settings 2.2.1 Serial port connector (COM) RS232 mode Signal Signal RS422 mode Signal Signal RS485 mode Signal Signal DATA- DATA+ 10 FPC-05R1 Quick Reference Guide... -
Page 11: Boot Mode Selector (Dip)
DIP Switch setting: 0=Off, 1=On When Position4 is switched On, the system is forced to power On as soon as power is applied. Switch to Off mode for normal operation. 2.2.3 DC power-in connector (DC-IN) DC-IN 12V FPC-05R1 Quick Reference Guide 11... -
Page 12: Debug Port Connector (Debug Port)
FPC-05R1 2.2.4 Debug port connector (Debug port) Signal Signal 12 FPC-05R1 Quick Reference Guide...
