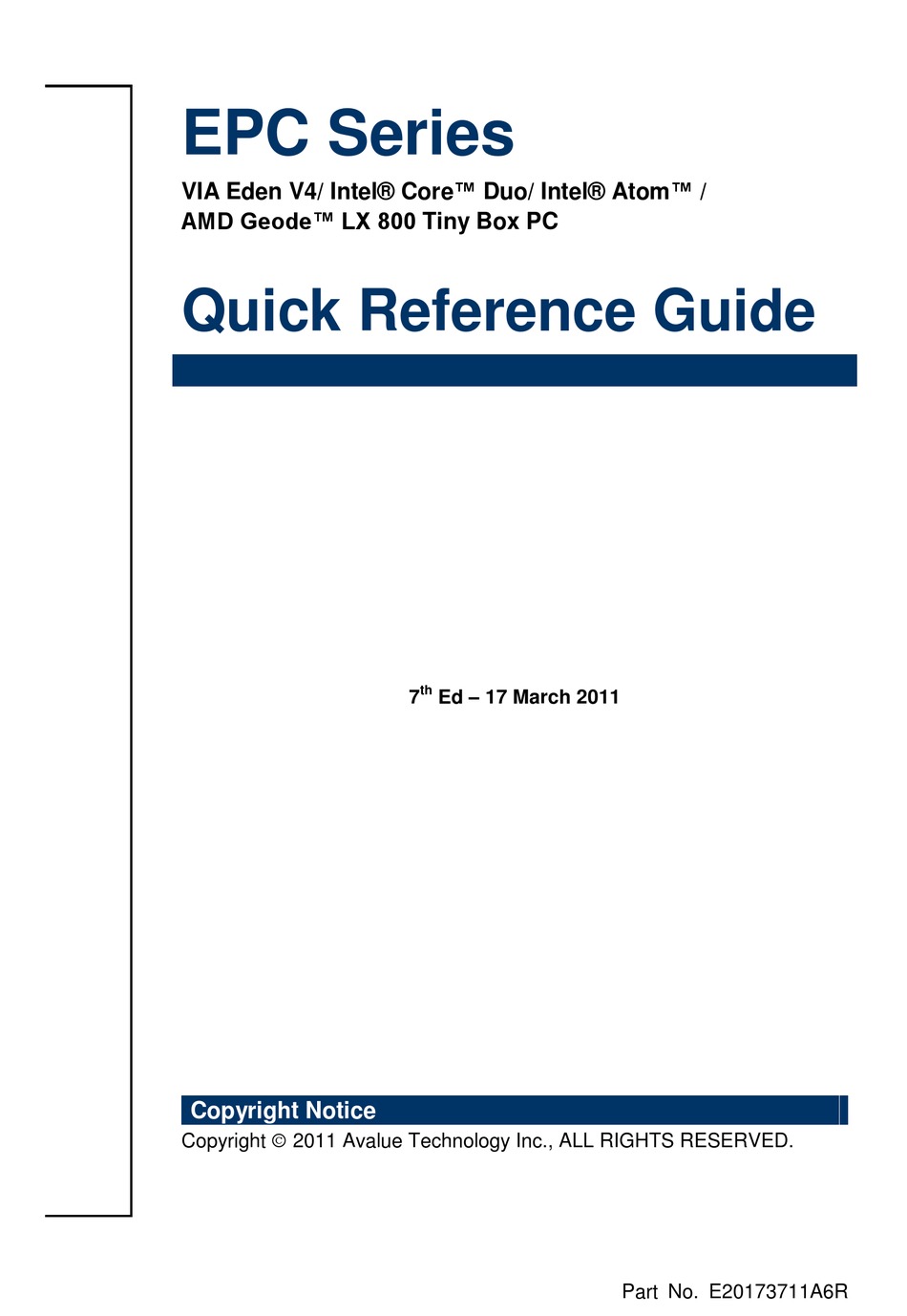

- Page 1 EPC Series VIA Eden V4/ Intel® Core™ Duo/ Intel® Atom™ / AMD Geode™ LX 800 Tiny Box PC Quick Reference Guide Ed – 17 March 2011 Copyright Notice Copyright 2011 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E20173711A6R...
- Page 2 EPC-Series FCC Statement THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS "A"...
- Page 3 Please do not hesitate to call or e-mail Headquarters and Branch Avalue USA Avalue Technology Inc. Avalue Technology Inc. 7F, 228, Lian-cheng Road, Chung Ho City, Taipei, 9 Timber Lane, Marlboro, NJ 07746-1443...
-
Page 4: Product Warranty
EPC-Series Product Warranty Avalue warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Avalue, or which have been subject to misuse, abuse, accident or improper installation. -
Page 5: Getting Started
Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 6: System Specifications
EPC-Series 1.3 System Specifications EPC-3711 EPC-CX700 Model Onboard VIA Eden V4 1 GHz Onboard VIA Eden V4 500 MHz BIOS Award 512 KB Flash BIOS System Chipset VIA CN700/VT8251 VIA CX700M I/O Chipset VIA VT1211 System Memory One 200-pin SODIMM supports up to 1 GB DDR2 400/533 SDRAM One CompactFlash Type I/II socket with ejector Watchdog Timer Reset: 1 sec.~255 min. - Page 7 Quick Reference Guide EPC-945 EPC-AT270 Model Supports 65nm Intel® µFC-PGA Onboard Intel® Atom™ N270 1.6GHz 478/µFC-BGA 479 Core™ Duo/Core™ Duo/Celeron® M CPU BIOS Award 4 MBit Flash BIOS Award 8 MBit Flash BIOS System Chipset Intel® 945GME / ICH7-M Intel® 945GSE/ICH7-M I/O Chipset Winbond W83627HF-AW ITE 8712F...
- Page 8 One 200-pin SODIMM supports up to 1 GB DDR 333/400 SDRAM One CompactFlash Type I/II socket Reset: 1 sec.~255 min. and 1 sec. or 1 min./step Watchdog Timer Display AMD Geode LX800 with Integrated Graphics Engine Audio Realtek ALC203 supports 2-CH Audio Ethernet Dual Realtek RTL8101L 10/100 Rthernet...
- Page 9 Quick Reference Guide 1.4 System Overview 1.4.1 Front View Connectors Label Function Note Power on button POWER System power indicator USB 2.0 connector 1.4.2 Rear View EPC-3711/EPC-CX700 EPC Series Quick Reference Guide...
- Page 10 EPC-Series EPC-AT270 EPC-945 EPC-LX800W 10 EPC Series Quick Reference Guide...
- Page 11 Quick Reference Guide Connectors Label Function Note Serial port DB-9 male connector CF Type I/II Socket with Ejector DC Power-in connector DC-IN DVI connector (EPC-AT270 only) HDD indicator Keyboard and PS/2 mouse connector 6-pin mini DIN 2 x 10/100Base-Tx Ethernet connector RJ-45 LAN1&2 LINE IN...
- Page 12 EPC-Series 1.5 System Dimensions 1.5.1 Top /Front& Rear EPC-3711/EPC-CX700/EPC-AT270/ EPC-LX800W EPC-945 (Unit: mm) 12 EPC Series Quick Reference Guide...
- Page 13 Quick Reference Guide 1.5.2 Bottom EPC-3711 / EPC-CX700/EPC-AT270/ EPC-LX800W (Unit: mm) EPC-945 EPC Series Quick Reference Guide 13...
-
Page 14: Jumper And Connector Setting, Driver And Bios Installing
EPC-Series 2. Hardware Configuration 2.1 Jumper and Connector Setting, Driver and BIOS Installing Please refer to ECM-3711,ECM-CX700,ECM-945GME,or ECM-945GSE or ECM-LX800W Quick Installation Guide or User’s Manual for advanced information. Note: If you need more information, please visit our website: http://www.avalue.com.tw 14 EPC Series Quick Reference Guide... -
Page 15: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory Step 1. Unfasten 8 screws from two sides, 4 screws of COM and VGA From the Step 4. Insert the DDR SODIMM into the rear side as displayed above then memory socket. remove the chassis cover. - Page 16 EPC-Series 16 EPC Series Quick Reference Guide...
