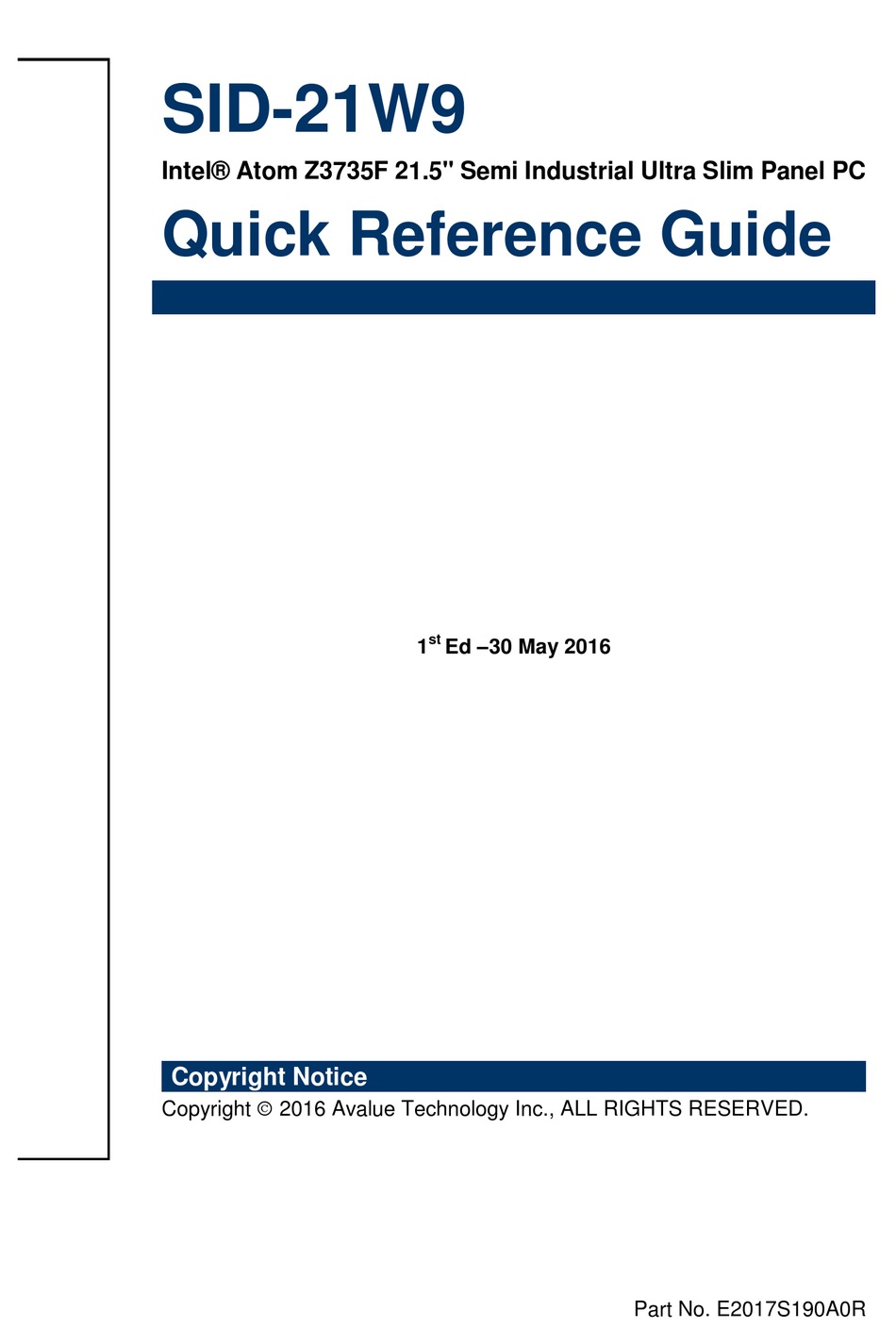

- Page 1 SID-21W9 Intel® Atom Z3735F 21.5" Semi Industrial Ultra Slim Panel PC Quick Reference Guide Ed –30 May 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017S190A0R...
-
Page 2: Federal Communication Commission Interference Statement
(2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 SID-21W9 Quick Reference Guide... -
Page 3: Fcc Rf Radiation Exposure Statement
Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the... - Page 4 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 5: Table Of Contents
Front View ............................ 9 1.4.2 Bottom View ..........................9 System Dimensions ..................... 10 1.5.1 Front and Rear side ........................10 Hardware Configuration ................... 11 2.1 SID-21W9 connector mapping ................. 12 2.1.1 Serial port connector (COM) ...................... 12 SID-21W9 Quick Reference Guide... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x SID-21W9 Panel PC 1 x AC/DC Power adapter 19V/3.42A ... -
Page 7: System Specifications
Others Membrane for power/ volume/ brightness External I/O Serial Port 1 x RS-485 (optional RS-232) USB Port 2 x USB 2.0 Video Port 1 x HDMI Audio Port Line out SID-21W9 Quick Reference Guide... - Page 8 IEC-60068-2-32 Drop test standard Operating Temperature 0 ~ 40 degree Operating Humidity 0 ~ 90% Relative Humidity, Non-condensing Storage Temperature -20 ~ 60 degree Note: Specifications are subject to change without notice. 8 SID-21W9 Quick Reference Guide...
-
Page 9: System Overview
Front View 1.4.2 Bottom View Connectors Label Function Note Line out Audio line-out connector HDMI HDMI connector 2 x USB 2.0 connector DC power-in connector DCIN RJ-45 Ethernet Serial port connector DB-9 male connector (optional RS-232) SID-21W9 Quick Reference Guide... -
Page 10: System Dimensions
SID-21W9 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 10 SID-21W9 Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw SID-21W9 Quick Reference Guide 11... -
Page 12: Sid-21W9 Connector Mapping
SID-21W9 2.1 SID-21W9 connector mapping 2.1.1 Serial port connector (COM) RS-485* Signal PIN PIN Signal 485_Tx- *Default 485_Tx+ RS-232 Signal PIN PIN Signal 12 SID-21W9 Quick Reference Guide...
