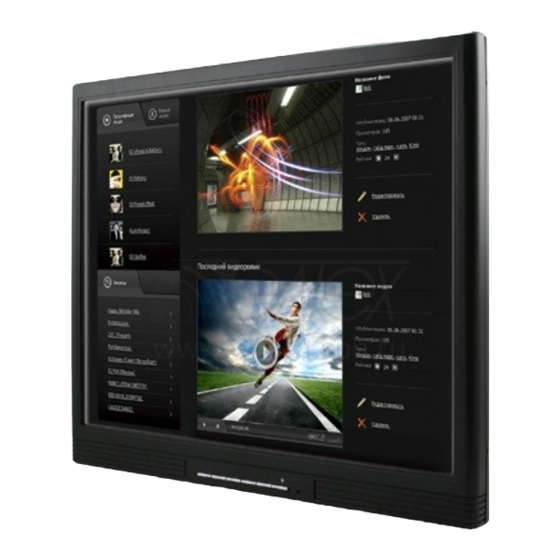

- Page 1 PPC 15”~22”W Series 15”/17”/18”W/21”W/22”W Plastic Touch Panel PC Quick Reference Guide – 03 March, 2011 Copyright Notice Copyright © 2011 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017PPC0A3R...
-
Page 2: Table Of Contents
PPC 15”~22”W Series Contents Safety Precautions ....................3 Packing List ......................3 System Specifications ...................4 System Overview....................14 1.4.1 Front View ..........................14 1.4.1.1 Front View for PPC-21W05 ..........................14 1.4.2 Rear View........................... 15 System Dimensions.....................16 1.5.1 PPC 15” Series .......................... 16 1.5.2 PPC 17” Series .......................... 17 1.5.3 PPC 18”... -
Page 3: Safety Precautions
Quick Reference Guide 1. Getting Started 1.1 Safety Precautions Warning! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. -
Page 4: System Specifications
PPC 15”~22”W Series 1.3 System Specifications Panel Specifications PPC-1501 PPC-1701 PPC-22W01 LCD size 15", 4:3 17", 4:3 22", 16:10 Display type XGA TFT SXGA TFT WSXGA TFT Resolution 1024 x 768 1280 x 1024 1680 x 1050 Color 16.7M 16.7M 16.7M... - Page 5 Quick Reference Guide Rear Panel I/O Serial Port 1 x RS-232 Ethernet 2 x RJ-45 1 x DB-15 Audio port 1 x Line out 2 x USB 2.0 Speaker 2W x 2 Mechanical & Evironmental System Fan Passive Heat Sink Color Front &...
- Page 6 PPC 15”~22”W Series Panel Specifications PPC-1503 PPC-1703 15", 4:3 17", 4:3 LCD size XGA TFT SXGA TFT Display type Resolution 1024 x 768 1280 x 1024 Color 16.7M 16.7M Pixel pitch 0.297mm(H) x 0.297mm(V) 0.264mm(H) x 0.264mm(V) Luminance 300 cd/m² 380 cd/m²...
- Page 7 Quick Reference Guide Rear Panel I/O Serial Port 1 x RS-232 Ethernet 1 x RJ-45 1 x DB-15 Audio port 1 x Line out 2 x USB 2.0 Speaker 2W x 2 Mechanical & Evironmental System Fan Passive Heat Sink Color Front &...
- Page 8 PPC 15”~22”W Series Panel Specifications PPC-18W03 PPC-22W03 18.5", 16 : 9 22", 16:10 LCD size WSGA TFT WSXGA TFT Display type Resolution 1366 x 768 1680 x 1050 Color 16.7M 16.7M Pixel pitch 0.300mm(H) x 0.300mm(V) 0.282mm(H) x 0.282mm(V) Luminance 300 cd/m²...
- Page 9 Quick Reference Guide Rear Panel I/O Serial Port 1 x RS-232 Ethernet 1 x RJ-45 1 x DB-15 Audio port 1 x Line out 2 x USB 2.0 Speaker 2W x 2 Mechanical & Evironmental Passive Heat Sink System Fan Front &...
- Page 10 PPC 15”~22”W Series Panel Specifications PPC-1505 PPC-1705 15", 4:3 17", 4:3 LCD size XGA TFT SXGA TFT Display type Resolution 1024 x 768 1280 x 1024 Color 16.7M 16.7M Pixel pitch 0.297mm(H) x 0.297mm(V) 0.264mm(H) x 0.264mm(V) Luminance 300 cd/m² 380 cd/m²...
- Page 11 Quick Reference Guide Rear Panel I/O Serial Port 1 x RS-232 Ethernet 1 x RJ-45 1 x DB-15 Audio port 1 x Line out 2 x USB 2.0 KB/MS 1 x PS/2 KB & MS Speaker 2W x 2 Mechanical & Evironmental System Fan Passive Heat Sink Color...
- Page 12 PPC 15”~22”W Series Panel Specifications PPC-18W05 PPC-21W05 PPC-22W05 18.5", 16 : 9 21", 16:9 22", 16:10 LCD size WSGA TFT Full HD TFT WSXGA TFT Display type Resolution 1366 x 768 1920 x 1080 1680 x 1050 Color 16.7M 0.300mm(H) x 0.248mm(H) x 0.282mm(H) x Pixel pitch...
- Page 13 Quick Reference Guide Rear Panel I/O Serial Port 1 x RS-232 Ethernet 1 x RJ-45 1 x DB-15 Audio port 1 x Line out 2 x USB 2.0 KB/MS 1 x PS/2 KB & MS 1 x USB Camera Camera (Optional) Speaker 2W x 2...
-
Page 14: System Overview
PPC 15”~22”W Series 1.4 System Overview 1.4.1 Front View Note: The programmable function keys are available to be programmed by the user, and they are unable to work unless programmed. 1.4.1.1 Front View for PPC-21W05 14 PPC 15”~22”W Series Quick Reference Guide... -
Page 15: Rear View
Quick Reference Guide 1.4.2 Rear View Connectors Label Function Note Serial port DB-9 male connector DC in DC-in power connector HDD LED 10/100/1000Base-Tx Ethernet connector RJ-45 LAN/KBMS 10/100/1000Base-Tx Ethernet connector RJ-45 or 6-pin Mini DIN or PS/2 keyboard & mouse LINE OUT Line-out audio jack Power LED... -
Page 16: System Dimensions
PPC 15”~22”W Series 1.5 System Dimensions 1.5.1 PPC 15” Series 16 PPC 15”~22”W Series Quick Reference Guide... -
Page 17: Ppc 17" Series
Quick Reference Guide 1.5.2 PPC 17” Series PPC 15”~22”W Series Quick Reference Guide 17... -
Page 18: Ppc 18" Widescreen Series
PPC 15”~22”W Series 1.5.3 PPC 18” Widescreen Series (Unit: mm) 18 PPC 15”~22”W Series Quick Reference Guide... -
Page 19: Ppc 21" Widescreen Series
Quick Reference Guide 1.5.4 PPC 21” Widescreen Series (Unit: mm) PPC 15”~22”W Series Quick Reference Guide 19... -
Page 20: Ppc 22" Widescreen Series
PPC 15”~22”W Series 1.5.5 PPC 22” Widescreen Series 20 PPC 15”~22”W Series Quick Reference Guide... -
Page 21: Jumper And Connector Setting, Driver And Bios Installing
Quick Reference Guide 1 Hardware Configuration 2.1 Jumper and Connector Setting, Driver and BIOS Installing Please refer to EBM-CX700, EBM-945GSE, EBM-PNV Quick Installation Guide or User’s Manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw PPC 15”~22”W Series Quick Reference Guide 21... -
Page 22: Installing Hard Disk & Memory
2.2.1 Install 2.5” HDD Step 1. Unfasten 4 screws from the rear middle side and 4 screws from the rear bottom side of PPC-1501 as above. Step 2. Remove the front panel chassis. 22 PPC 15”~22”W Series Quick Reference Guide... - Page 23 Quick Reference Guide Step 3. Unlock 4 screws from the panel through the bottom chassis as above. Step 4. Unfasten 4 screws from the metal bracket through the bottom chassis as indicated. PPC 15”~22”W Series Quick Reference Guide 23...
- Page 24 PPC 15”~22”W Series Step 5. Place the 2.5” HDD to the right position and fasten 4 screws to fix. Step 6. Assemble the whole system as step 5, 4, 3, 2, 1. 24 PPC 15”~22”W Series Quick Reference Guide...
-
Page 25: Installing Panel Pc Stand
Quick Reference Guide 2.3 Installing Panel PC Stand Step 1. Fasten 4 screws from the as indicated as above. Step 2. Place the stand into the plastic plate. Step 3. Stick the rubber-foot onto the backward of plastic plate and locked with 2 screws. PPC 15”~22”W Series Quick Reference Guide 25... -
Page 26: Installing Optional Msr Module
Step 1. Take out the MSR with bracket Step 2. Place the MSR module onto the module from the accessory box. back of PPC-1501 and make sure the holes meet the VESA mountings. Step 3. Put on the stand right above the Step 4.
