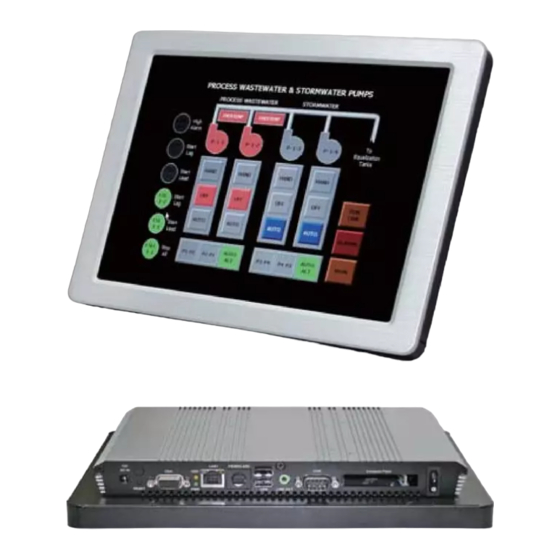

- Page 1 LPC-1207 12.1" Fanless Multifunctional Touch Panel Computer Quick Reference Guide Ed – 11 February 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E20171207A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 LPC-1207 Quick Reference Guide...
-
Page 3: Table Of Contents
Top View ..........................7 1.4.2 Bottom View ..........................7 1.5 System Dimensions ....................8 Hardware Configuration ..................9 2.1 LPC-1207 connector mapping .................. 10 2.1.1 Serial Port connector (COM) ..................... 10 2.2 Installing Hard Disk & Memory ................. 11 LPC-1207 Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-1207 12.1" Fanless Multifunctional Touch Panel Computer 1 x DVD-ROM contains the followings: ... -
Page 5: System Specifications
Serial Port 1 x RS-232 Ethernet 1 x RJ-45 HDMI 1 x HDMI Audio port 1 x Line-out 2 x USB 2.0 Mouse & K/B 1 x PS/2 KB & MS Display Chipset Intel® Cedarview Integrated Graphics LPC-1207 Quick Reference Guide... - Page 6 AT/ATX Operating Temp. 0 to 40°C Storage Temp. -20 to 60°C Operating 5%~90% relative humidity, non-condensing Humidity Dimensions 283 x 222 x 45 mm Weight 2.84 Kgs Note: Specifications are subject to change without notice. 6 LPC-1207 Quick Reference Guide...
-
Page 7: System Overview
Line-out audio jack 2 x USB 2.0 connector Dock USB LAN1 RJ-45 Ethernet connector 1 KB/MS PS/2 connector (LAN2) Optional 2nd LAN HDD indicator System power indicator HDMI HDMI connector Reset button RESET DC-IN DC Power-in connector LPC-1207 Quick Reference Guide... -
Page 8: System Dimensions
LPC-1207 1.5 System Dimensions (Unit: mm) 8 LPC-1207 Quick Reference Guide... -
Page 9: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EBM-CDV User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC-1207 Quick Reference Guide... -
Page 10: Lpc-1207 Connector Mapping
LPC-1207 2.1 LPC-1207 connector mapping 2.1.1 Serial Port connector (COM) Signal PIN PIN Signal 10 LPC-1207 Quick Reference Guide... -
Page 11: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. LPC-1207 Quick Reference Guide 11... - Page 12 Step 3. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. 12 LPC-1207 Quick Reference Guide...
