Table of Contents
Related Manuals for Avalue Technology BMX-T521-BYT
Summary of Contents for Avalue Technology BMX-T521-BYT

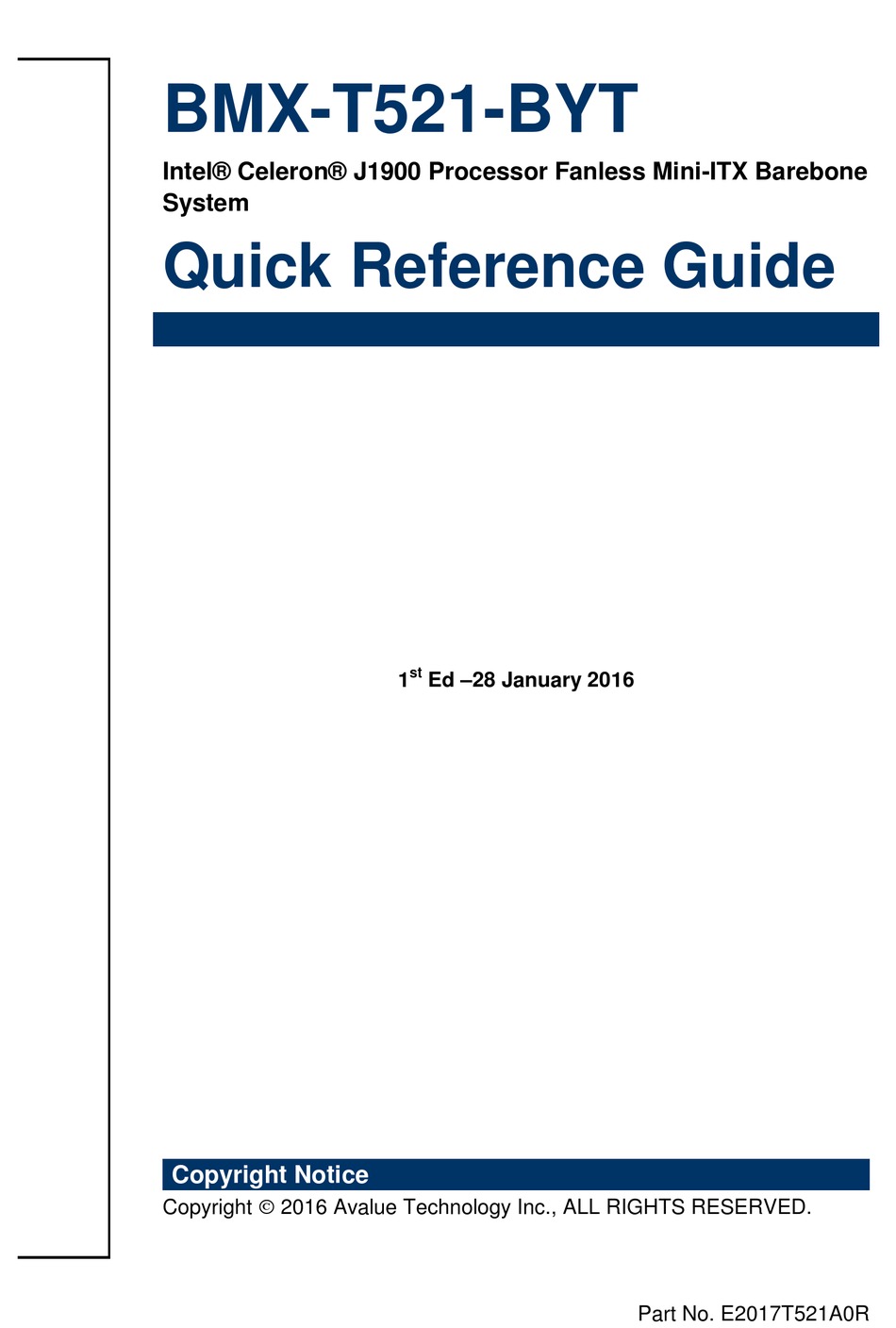

- Page 1 BMX-T521-BYT Intel® Celeron® J1900 Processor Fanless Mini-ITX Barebone System Quick Reference Guide Ed –28 January 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017T521A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
-
Page 3: Table Of Contents
System Dimensions ....................9 Hardware Configuration ................... 10 BMX-T521-BYT connector mapping ..............11 2.1.1 Serial port connector 1~6 (COM1~6) ..................11 2.1.2 VGA connector (VGA) ........................ 11 Installing SD card (BMX-T521-BYT) ..............12 Installing Hard Disk (BMX-T521-BYT) ..............13 BMX-T521-BYT Quick Reference Guide... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x BMX-T521-BYT Intel® Celeron® J1900 Processor Fanless Mini-ITX Barebone System Other major components include the followings: ... -
Page 5: System Specifications
AT / ATX mode Switchable Through Jumper Power Connector Type Lockable DC Jack Dimension 180 x 182 x 76 (L x W x H) Weight 2.3 kg Color Black Fanless BMX-T521-BYT Quick Reference Guide... - Page 6 0°C ~ 50°C (32°F ~ 122°F) (w/SSD, mSATA), ambient w/ air flow Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Note: Specifications are subject to change without notice. 6 BMX-T521-BYT Quick Reference Guide...
-

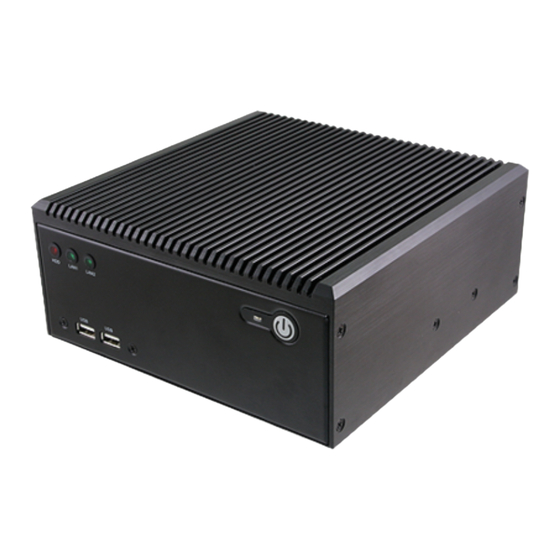

Page 7: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Front/Rear/Side View POWER Connectors Label Function Note POWER Power on button HDD Indicator BMX-T521-BYT Quick Reference Guide... - Page 8 HDD Indicator USB2.0 connector USB3.0 USB3.0 connector COM1~6 Serial port connector 1~6 DC power-in connector DC IN HDMI HDMI connector LINE OUT Line-out audio jack Mic-in audio jack MIC IN VGA connector SD card slot 8 BMX-T521-BYT Quick Reference Guide...
-
Page 9: System Dimensions
Quick Reference Guide 1.5 System Dimensions (Unit: mm) BMX-T521-BYT Quick Reference Guide... -
Page 10: Hardware Configuration
BMX-T521-BYT 2. Hardware Configuration Jumper and Connector Setting, Driver and BIOS Installing For advanced information, please refer to: 1- EMX-BYT2 User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 10 BMX-T521-BYT Quick Reference Guide... -
Page 11: Bmx-T521-Byt Connector Mapping
Quick Reference Guide 2.1 BMX-T521-BYT connector mapping 2.1.1 Serial port connector 1~6 (COM1~6) Signal PIN PIN Signal 2.1.2 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK BMX-T521-BYT Quick Reference Guide 11... -
Page 12: Installing Sd Card (Bmx-T521-Byt)
BMX-T521-BYT 2.2 Installing SD card (BMX-T521-BYT) Step 1. Insert SD card into SD slot. 12 BMX-T521-BYT Quick Reference Guide... -
Page 13: Installing Hard Disk (Bmx-T521-Byt)
Quick Reference Guide 2.3 Installing Hard Disk (BMX-T521-BYT) Step1. Remove 10 screws from rear and each side before removing back cover. Step2. Secure HDD by means of 8screws. Step3. Re-assemble your system back through previous steps to complete the installation.
