Page 1: Quick Reference Guide

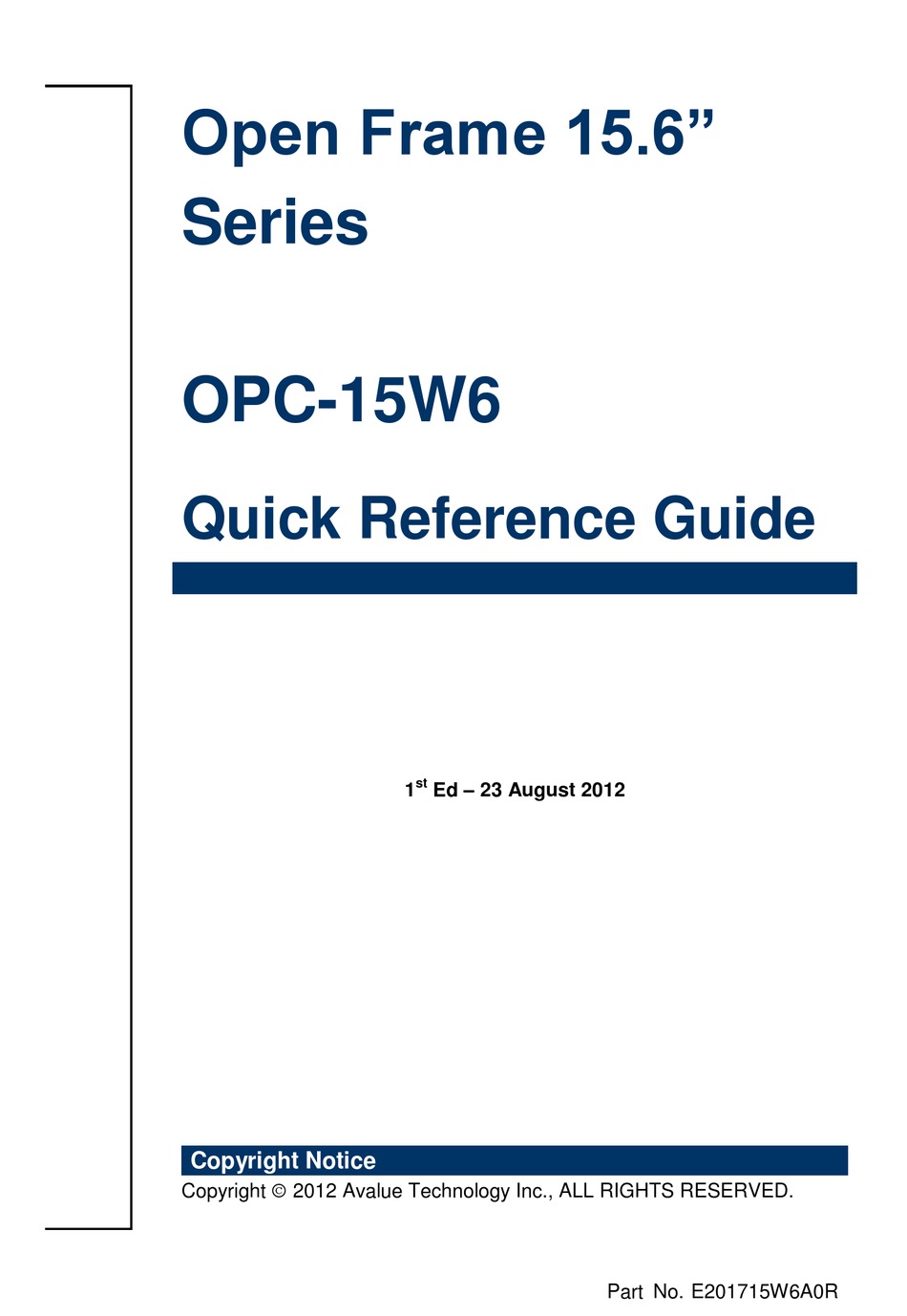

Open Frame 15.6” Series OPC-15W6 Quick Reference Guide Ed – 23 August 2012 Copyright Notice Copyright 2012 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E201715W6A0R... -
Page 2: Table Of Contents
Open Frame 15.6” Series Contents Getting Started ......................3 1.1 Safety Precautions ....................3 1.2 Packing List ....................... 3 1.3 System Specifications ....................4 1.4 System Overview ...................... 6 1.4.1 Front View ..........................6 1.4.2 Rear IO View ........................... 7 1.4.3 Bottom IO View ........................ -
Page 3: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x OPC-15W6 Series Open Frame PC 1 x Quick Reference Guide ... -
Page 4: System Specifications
Open Frame 15.6” Series 1.3 System Specifications OPC-15W6 Model Open Frame All-In-One System System Type 15.6” TFT-LCD 1920x1080 Resolutions Display LED Backlight 300 cd/m White Luminance 500:1 Contrast Ratio Projected Capacitive Touch Touch Screen 10-Point Multi-touch EETI Controller Main System Customized QM67 Main board Intel®... - Page 5 Quick Reference Guide 19V@1.42A , 26.98W Power Consumption 19V 65W Adapter Accessory Operating Temperature 0 ~40C (System Fanless) Storage -20~70C Temperature SECC with Nickel Coating Treatment Chassis Material 4.53Kgs Weight Windows XP & Windows XP Embedded (Not Multi-touch) OS Support Windows 7 &...
-
Page 6: System Overview
Open Frame 15.6” Series 1.4 System Overview 1.4.1 Front View Functions Descriptions Note 1. 15.6” LCD 16:9 1920x1080 display 2. 15.6” PCAP Touch Screen Multi-touch touch screen 3. Camera 1.3M / 2.0M Camera Optional 4 mounting brackets Customizable 4. Mounting Brackets 6 Open Frame 15.6”... -
Page 7: Rear Io View
Quick Reference Guide 1.4.2 Rear IO View Connectors Label Function Note 1. TV TV Antenna Connector Optional 2. USB USB 2.0 Type-A Female Connector 3. LAN RJ-45 Connector DC Ø5.5x Ø 2.5x9.5 mm Power Input Jack 4. DC 5. DP Display Port Output 6. -
Page 8: Bottom Io View
Open Frame 15.6” Series 1.4.3 Bottom IO View Connectors Label Function Note 1~2. LAN Extra LAN (RJ-45) through add-on card Optional 3. COM RS-232 (DB9) Optional 4. COM RS-232/422/485 (DB9) Optional 5. EP Earphone 3.5mm Jack 6. MIC Microphone 3.5mm Jack 7~9. -
Page 9: Side Io
Quick Reference Guide 1.4.4 Side IO Connectors Label Function Note 1. USB Right Side Type-A Female Connector Optional Right Channel 2W System Speaker 2. SPK 3. USB Left Side Type-A Female Connector Optional Power button with green LED indicator 4. PWR 5. -
Page 10: System Dimensions
Open Frame 15.6” Series 1.5 System Dimensions Dimensions (mm) Descriptions 434.8 x 285.1 x 66 System dimension with mounting brackets 414.8 x 265.1 x 66 System dimension without mounting brackets 345.2 x 194.5 Display / Touch screen active area 10 Open Frame 15.6” Series Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw Open Frame 15.6” Series Quick Reference Guide 11... -
Page 12: Jumper And Connector Setting
Open Frame 15.6” Series 2.1 Jumper and Connector Setting 2.1.1 Jumper Setting Item No Label Function Power Mode JAT1 1-2 : AT Mode 2-3: ATX Mode (Factory Default) CMOS Clear JCMOS1 1-2: Normal (Factory Default) 2-3: Clear CMOS JWIFIA1 Socket Power Choices JWIFI(PWR) 2-3: 3.3V (Factory Default) 1-2: 5V... -
Page 13: Connector Setting
Quick Reference Guide 2.1.2 Connector Setting Item No Label Function HD_PW1 JWEB1 USB signal & 5V power to optional camera SATA1 SATA data signal JIC1 USB signal & 5V power to PCAP touch screen JLVDS1 For LCD signal and power JSPK2 For right channel speaker JSPK1... -
Page 14: Hard Disk, Memory & Expansion Cards Installation
Open Frame 15.6” Series 2.2 Hard Disk, Memory & Expansion Cards Installation 2.2.1 Remove Top Cover Step 1. Remove 4 screws (red dots) from the heat sink.* *These 4 screws are different from all others screws in the system. Do not mix these 4 screws with others. Step 2. - Page 15 Quick Reference Guide 2.2.2 Install Hard Disk Driver Step 1. From the accessory bag, find the 2 screws and use them to assemble the hard disk drive with the bracket. Step 2. Insert the hard disk drive into the hard disk bay. Step 3.
- Page 16 Open Frame 15.6” Series 2.2.3 Install Memory Insert DDR3 SO-DIMM memory modules into the memory sockets. * You can insert two 8GB DDR3 1066/1333 SO-DIMM modules on the memory sockets to reach the maximum support of 16GB memory. ** Make sure you use 64-bit operating system so that the system can utilize the maximum memory. 16 Open Frame 15.6”...
- Page 17 Quick Reference Guide 2.2.4 Install Expansion Card You can use these four (4) expansion sockets with cards for your applications. Item No Label Function JDTVB1 Mini-PCIE (PCIE x1 & USB) JWIFIA1 Mini-Card (USB ONLY) JMPCIEA1 Mini-PCIE (PCIE x1 & USB) JMPCIEB1 Mini-PCIE (PCIE x1 &...
-
Page 18: Turn On The System
Open Frame 15.6” Series 2.3 Turn on the System Step 1. Plug the adapter into the DC jack.* Step 2. Press the power button on the left side of the system to turn on the system. A green led indicator will show the system is ON. 2.4 Enter BIOS Menu, Select Booting Devices Enter BIOS Menu Plug USB keyboard on the USB 2.0 port. -
Page 19: System Integration & Mounting
Quick Reference Guide 2.5 System Integration & Mounting (1) VESA Mount You can use VESA mounting to assemble OPC-15W6 inside the cabinet of your applications. Suggested screws Type of Screws Quantity Drawing M6x10 (2) Mounting Brackets Open Frame 15.6” Series Quick Reference Guide 19... - Page 20 Standard Products Item No Part Number Product Descriptions Note 15.6" Full HD 1920x1080 PCAP (Not include (Multi-touch) Core- i7 2610UE Memory/Hard OPC-15W6-B1-1T Open Frame Panel PC Disk/Camera) OPC/15.6"/PCT/i7-2610UE/SPK 15.6" Full HD 1920x1080 PCAP (Not include (Multi-touch) Core- i3 2340UE Memory/Hard OPC-15W6-B1-2T...
