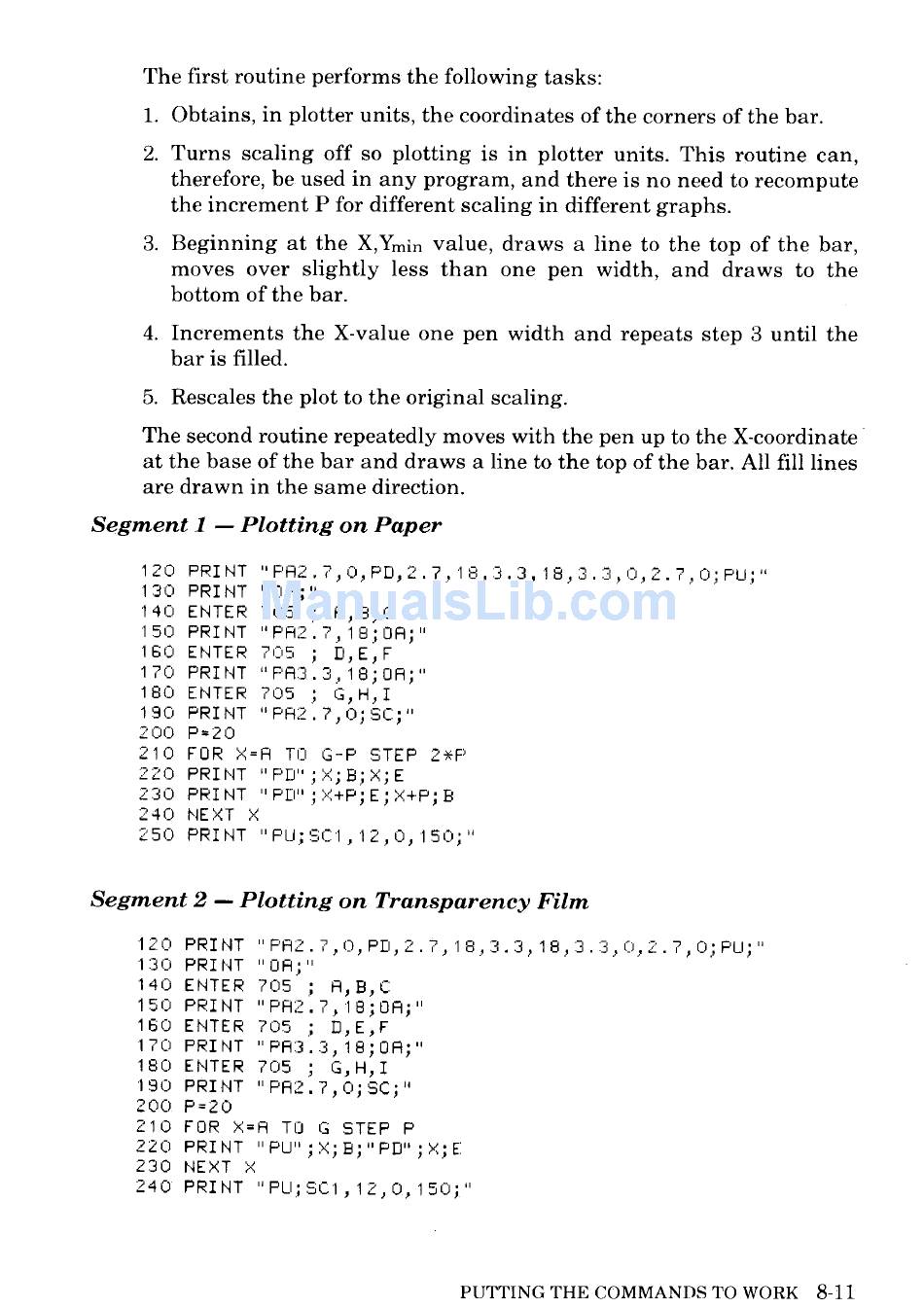

The first routine performs the following tasks:
1. Obtains, in plotter units, the coordinates of the corners of the bar.
2. Turns scaling off so plotting is in plotter units. This routine can,
therefore, be used in any program, and there is no need to recompute
the increment P for different scaling in different graphs.
3. Beginning at the X,YminValue, draws a line to the top of the bar,
moves over slightly less than one pen width, and draws to the
bottom of the bar.
4. Increments the X-Valueone pen width and repeats step 3 until the
bar is filled.
5. Rescales the plot to the original scaling.
The second routine repeatedly moves with the pen up to the X—coordinate'
at the base of the bar and draws a line to the top of the bar. All fill lines
are drawn in the same direction.
Segment 1 —Plotting on Paper
120 PRINT"PH2.?,O,PD,2.?,18,3.3,1S,3.3,0,2.?,O;PU;"
130 PRINT "UH;"
140 ENTER 705 ; H,B,C
150 PRINT "PH2.?,18;DH;"
150 ENTER T05 ; U,E,
170 PRINT "PH3.3,18;
180 ENTER 705 ; G,H,
190 PRINT"PP2.?,o;s.;"
zoo P=2O
210 FOR x=R TD G-P STEP 2*P
220 PRINT "Pn";x;B;x;E
230 PRINT "Pm~;x+P;E;r+P;B
240 NEXT X
250 PRINT "PU;SC1,12,0,1SO;"
Segment 2 —Plotting on Transparency Film
120 PRINT "PR2.T,o,Pn,2.T,1a,3.3,1a,3.3,o,2.T,o;Pu;~
130 PRINT "DH;"
140 ENTER 705 ; P,B,c
150 PRINT"PP2.7,1a;0P;"
150 ENTER 705 ; D,E,F
1?O PRINT "PR3.3,18;UH;"
130 ENTER 705 ; G,H,I
190 PRINT "PH2.?,0;SC;"
200 P=2o
210 EUR x=R TU G STEP P
220 PRINT"Pu";x;s;~Pn~;x;E
230 NEXT x
240 PRINT "PU;SC1,12,0,1SO;"
