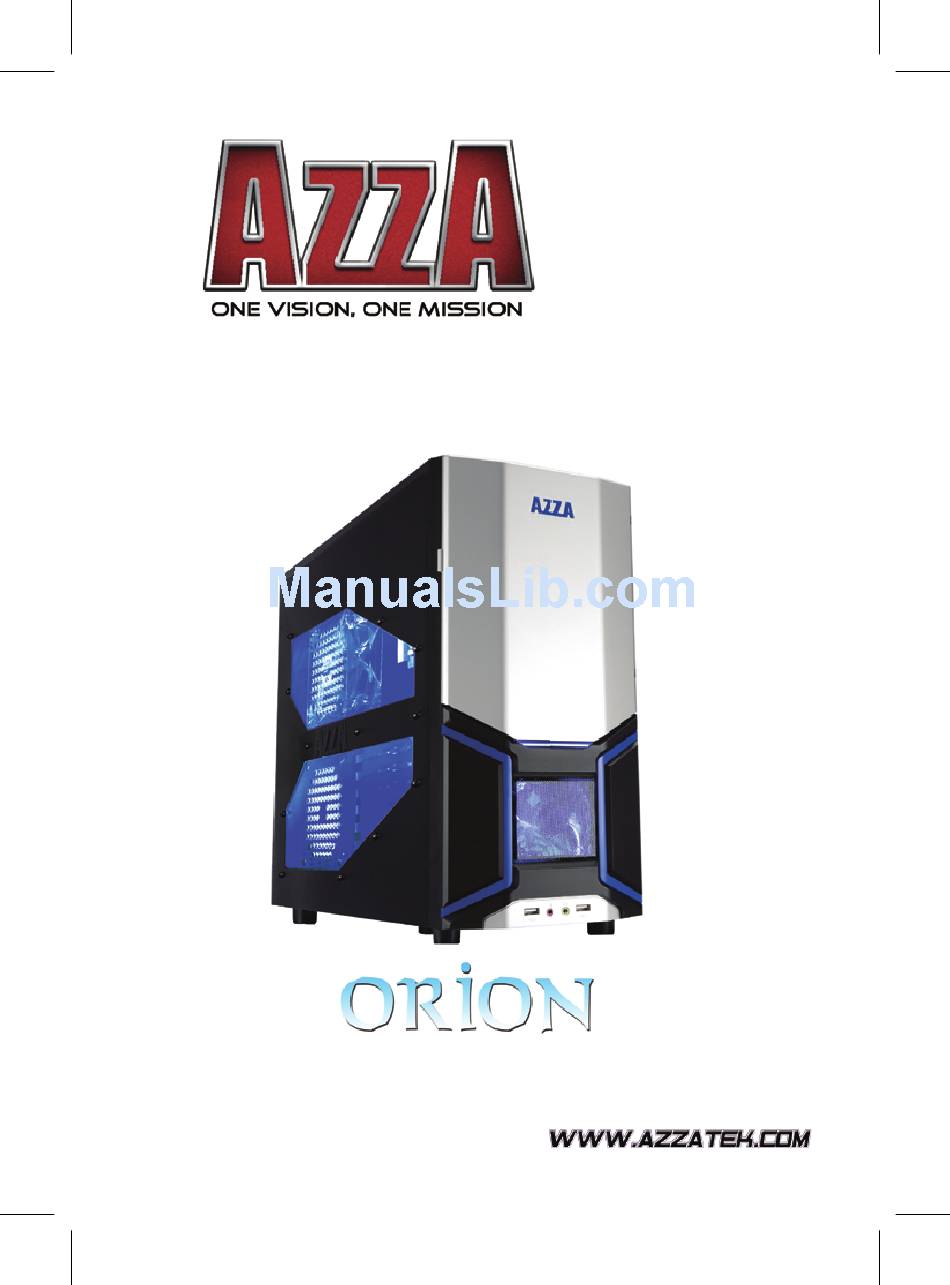

- Page 1 USER MANUAL...
- Page 2 AZZA(USA)Technology Ltd. 670 Endeavor Circle Brea, CA 92821 U S A Phone:714-990-5625 Fax:714-990-5912 www.azzatek.com...
-
Page 3: Specifications
SPECIFICATIONS... -
Page 4: Part List
Part List... -
Page 5: Aircooling System
Aircooling System --- Rear Fan(Exhaust) 120X120X25mm Fan --- Front Fan(Intake) --- Side Fan(Intake) 80X80X25mm 120X120X25mm Blue LED Fan Blue LED Fan... -
Page 6: Assembly Kit
Assembly kit Diagram Reset Power USB2.0 Audio USB2.0... -
Page 7: Installation Instruction
INSTALLATION INSTRUCTION 1_Open The Side Panel 1.Remove the locking screws towards the back of the case on the left-hand-side. 2_Remove The Front Panel and Top Panel 1.Hold the front panel by placing one hand on top of the case and one hand at the bottom. - Page 8 4_5.25” Device and 3.5” Device Installation 1.Take off the front panel with the arrows shown on the diagram. 2.Push the 5.25” or the 3.5” mesh cover front from the inside out. 3.Put back the front panel and place the 5.25” or the 3.5” device into the respective drive slot.
- Page 9 6_2.5” SSD & HD Device Installation Option 1: 1.Put the 2.5” device on the 3.5” HD holder. 2.Secured the 2.5” device with screw. 3.Push the 3.5” HD holder back to HD cage. Option 2: This holder can put two 2.5’’ SDD devices. 1.Take off the 2.5”...
- Page 10 Please refer to your motherboard user manual on the sections of "USB connector" and ˙ "Audio Connector." Please verify the pin definition before connecting the connectors to the motherboard. ˙ Remark: 1.USB and Audio connectors have foolproof design ， can only be inserted in one direction. 2.LED connectors have electrically positive and negative poles.
