Summarization of Contents

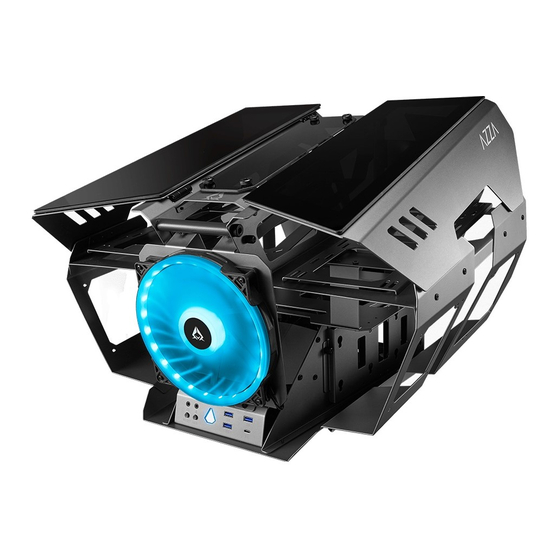

Front Panel Functionality
Front Fan
Features a 200mm Addressable RGB Fan included for illumination and cooling.
Front I/O Ports
Provides Reset, LED control, Audio, Mic, USB 3.0, and Type C connectivity.
Fan and Radiator Mounting Details
Radiator Mounting
Use long screws to affix the fan and radiator assembly onto the chassis.
Fan Mounting
Use nuts on the rear of the screw to affix the fan onto the chassis.
Graphics Card Installation Details
Graphics Card Support
Attach EVA foam from the parts kit to support the graphics card.
PCI-e Cable Installation
Plug the PCI-e cable onto the motherboard through the designated hole.
AZZA Hub Connectivity and Features
Hub Ports and Connectors
Lists ARGB, PWM fan, Reset/LED, SATA, and MB connectors for system integration.
Hub Functions
Manages 17 lighting modes via switch or MB, with flexible mounting options.
