Summary of Contents for AZZA BLAZE 231

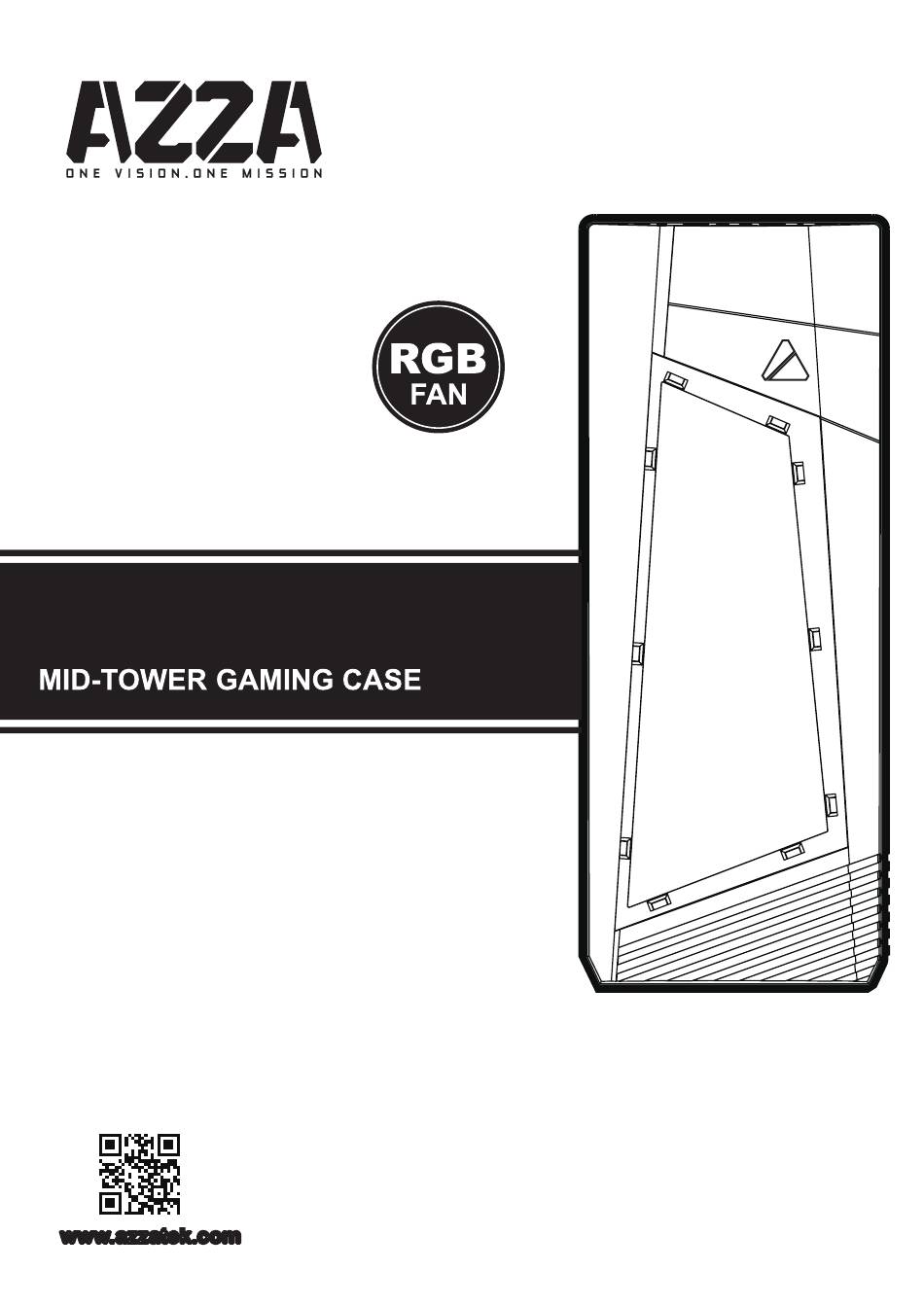

- Page 1 BLAZE USER MANUAL USER MANUAL www.azzatek.com www.azzatek.com...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD Installation 5. Cooling System Installation 6. AZZA PRISMA RGB Fan...
-
Page 3: Specifications
Specifications Model Model Name Blaze 231 Model Number CSAZ-231 / CSAZ-231G Specifications ATX Mid Tower Type: Color: Black(exterior)/Black(interior) Side Panel Window:CSAZ-231 Transparent Arcylic with rubber mounts Tempered Glass with rubber mounts Side Panel Window:CSAZ-231G Max CPU Cooler Height UP to 155mm... -
Page 4: Chassis Parts
Chassis Parts Front bezel Arcylic cover Case feet x4 Dust filter Transparent acrylic side panel for CSAZ-231 Tempered glass side panel for CSAZ-231G PCI slot cover PVC dust filter with magnet Right side panel... -
Page 5: Control Panel Functions
Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) HDD LED POWER LED Audio... - Page 6 3.5 ˝/ 2.5˝ HDD Installation ▪Supports up to 340mm long video cards. MAX 340mm video card MAX 340mm video card 3.5″ 3.5″ 2.5″ 2.5″ ▪Supports 3.5” HDD X3 ▪Supports 2.5” Devices X3...
-
Page 7: Cooling System Installation
Cooling System Installation Front Max Height of Water Cooling 240 mm 120mm x2... - Page 8 Cooling System Installation Rear 120mm x1 Max Length of Water Cooling 120 mm 120mm x2...
- Page 9 AZZA PRISMA RGB Fan ▪Parallel ("daisy-chaining") Plug the RGB fan's 4-pin connector into your motherboard's RGB header.
