Summary of Contents for AZZA CELESTA 340

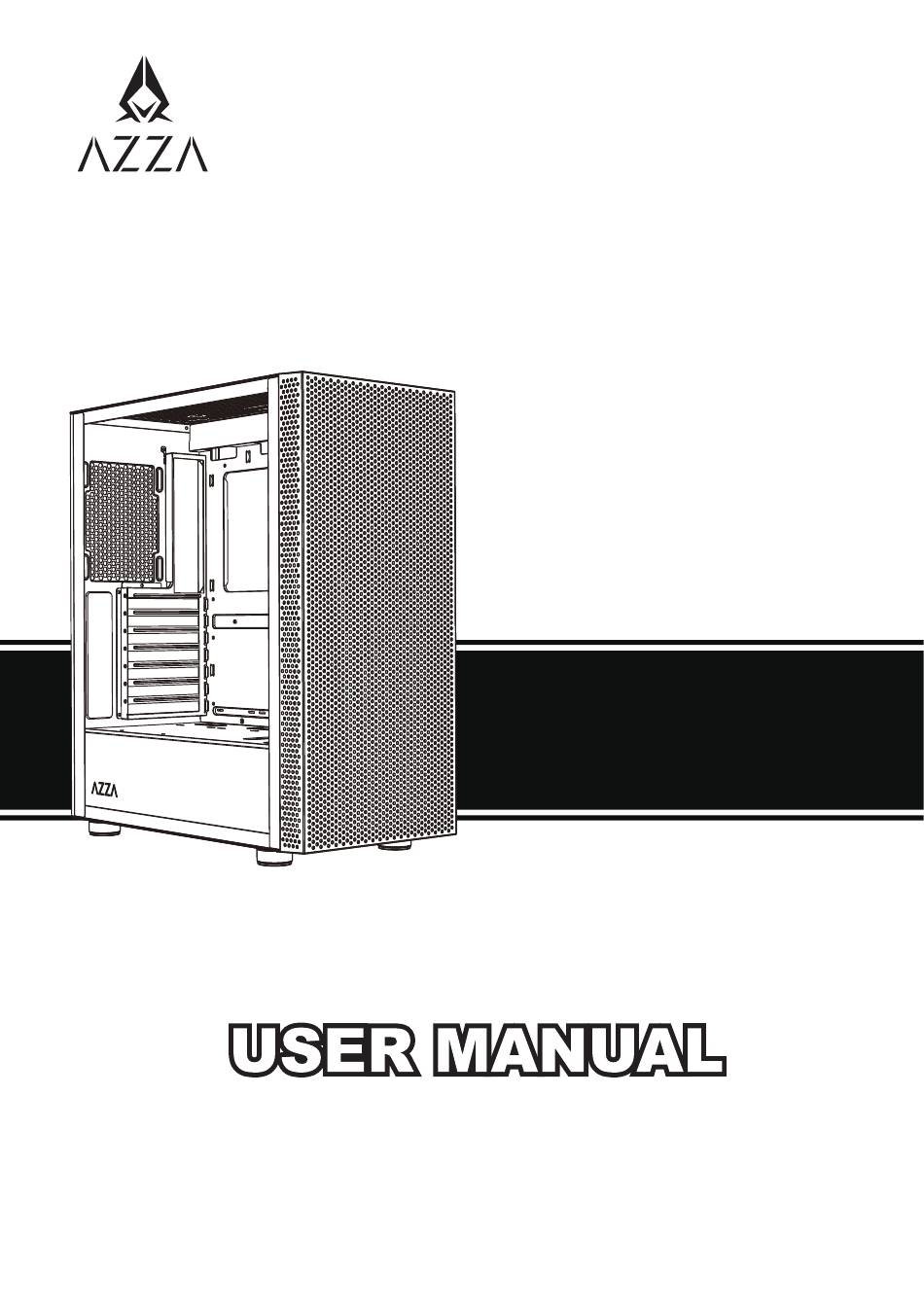

  • Page 1 Celesta 340...
  • Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation 6. ARGB Control Modes Switching 7. Fan Installation...

  • Page 3: Specifications

    Specifications Model Model Name: CELESTA 340 Model Number: CSAZ-340M Specifications Type: ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Le� side panel: tempered glass with rubber mounts Max CPU Cooler Height: UP to 165mm Max Video Card Length: Up to 320mm long video card...

  • Page 4: Chassis Parts

    Chassis Parts Removable (magnetic) dustproof mesh 2.5" SSD metal tray x 2 Right side metal panel Front panel ARGB led light strip Led light guide mesh Multifunctional hard disk bracket Multifunctional hard disk cage Steel dust filter Sliding tempered glass panel...

  • Page 5: Control Panel Functions

    Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) Audio...
  • Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation MAX 320mm video card MAX 320mm video card ▪Supports up to 320mm long video cards. 3.5″ 3.5″ 2.5″ 2.5″ ▪ Mul�func�onal hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( ▪2.5" SSD metal tray support 2.5” SSD x 2 ▪Multifunctional hard disk cage support 3.5”...
  • Page 7 Cooling System Installation Front 120mm x3 Max Height of Radiator 360 mm 140mm x3...
  • Page 8 Cooling System Installation Rear 120mm x1...

  • Page 9: Cooling System Installation

    Cooling System Installation 120mm x2 140mm x2 Max Length of Radiator 240 mm...
  • Page 10 ARGB Control Modes Switching ※To control the front panel ARGB lighting modes, press the LED button to cycle through 15 RGB lighting modes.

  • Page 11: Fan Installation

    Fan Installation DC FAN SATA RESET ARGB ※Press the button to cycle through different RGB 15 lighting modes, controlled by the button. 3 Secs Motherboard Sync. LED Button control software control 1 Secs...

This manual is also suitable for:

Csaz-340m
