- Page 1 CSAZ-460A CSAZ-460B Octane...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation 6. ARGB Control Board 7. ARGB Control Modes Switching...
-
Page 3: Specifications

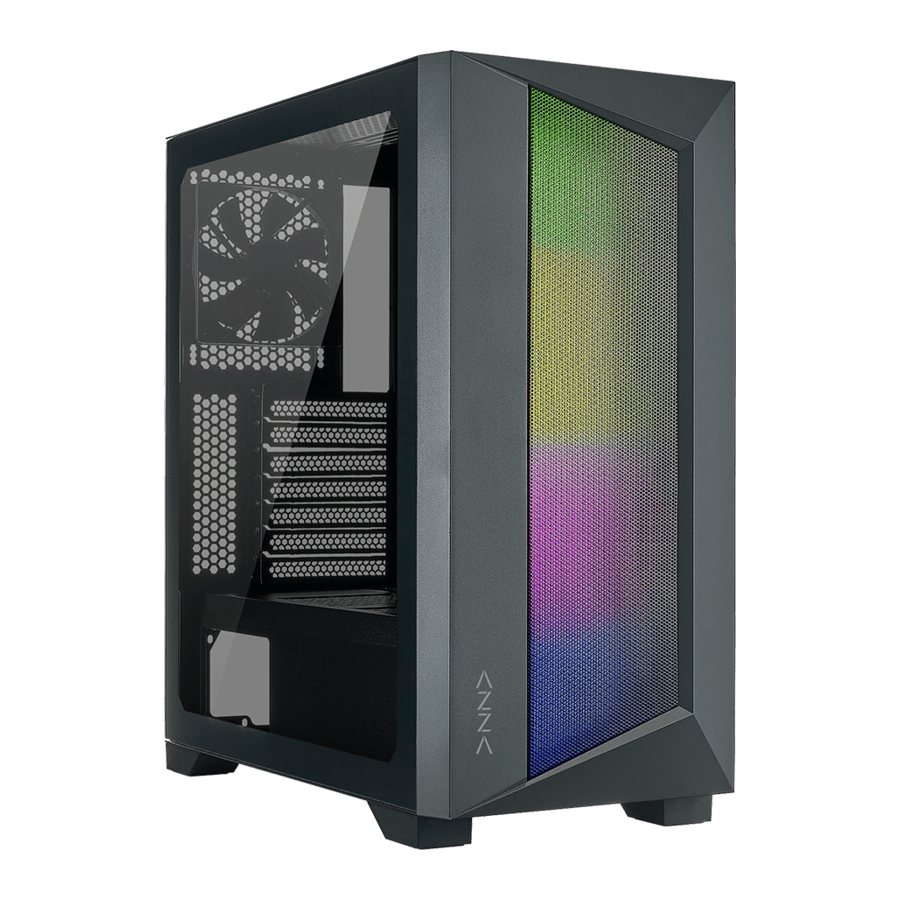

Specifications Model Model Name: Octane Model Number: CSAZ-460A/CSAZ-460B Specifications Type: ATX Mid Tower Color: Black/Black(interior), White/White(interior) Side Panel Window: Left Side panel: Slidable tempered glass panel Max CPU Cooler Height: UP to 165mm Max Video Card Length: Up to 360mm long video card... -
Page 4: Chassis Parts
Chassis Parts CSAZ-460A Chassis Removable magnetic mesh Steel dust filter Sliding tempered glass panel Metal side panel 2.5” SSD tray x 2 Hard disk cage 3.5” HDD/ 2.5” SSD brackets Front panel... - Page 5 Chassis Parts CSAZ-460B Chassis Removable magnetic mesh Steel dust filter Sliding tempered glass panel Metal side panel 2.5” SSD tray x 2 Hard disk cage 3.5” HDD/ 2.5” SSD brackets Front panel Addressable RGB strip Led light guide mesh...
-
Page 6: Control Panel Functions
Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) Audio... - Page 7 3.5 ˝/ 2.5˝ HDD/SSD Installation ▪Supports up to 360mm long video cards. ▪Supports up to 120mm fan x2 ( MAX 360mm video card MAX 360mm video card 3.5″ 3.5″ 2.5″ 2.5″ ▪Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( ▪Multifunctional hard disk bracket support 3.5”...
- Page 8 Cooling System Installation Front 120mm x3 Max Height of Radiator 360 mm 140mm x3...
- Page 9 Cooling System Installation Rear 120mm x1...
- Page 10 Cooling System Installation 120mm x3 140mm x2 Max Length of Radiator 240 mm...
- Page 11 ARGB Control Board CSAZ-460A...
- Page 12 ARGB Control Modes Switching CSAZ-460A ※Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board. ※Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
- Page 13 ARGB Control Modes Switching CSAZ-460B ▪SATA connector plug to Power Supply. ▪LED button(assembly already) ▪ARGB 3pin connector plug to the 5V ARGB port of the motherboard. ※To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
- Page 14 ARGB Control Modes Switching CSAZ-460B Hold the LED button for 3 seconds to switch : Swtch the RGB mode by LED button(Default) 3 seconds 3 seconds Switch the RGB Turn off the light control function to the motherboard software 3 seconds ※Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board.
