  • Page 1 Bastion USER MANUAL USER MANUAL...

  • Page 2: Cooling System Installation

    Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation...

  • Page 3: Specifications

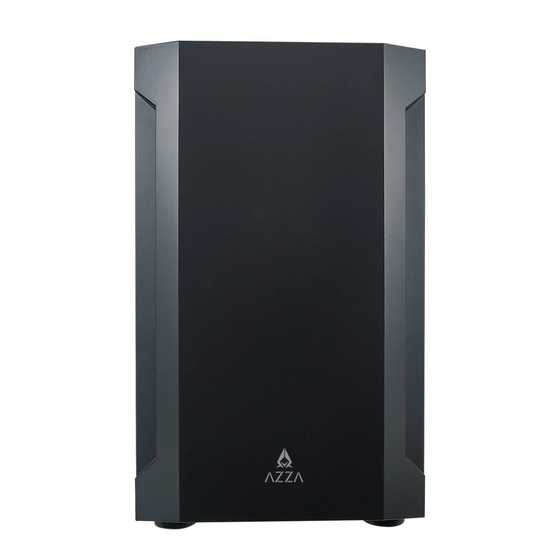

    Specifications Model Model Name Bastion Model Number CSAZ-120 Specifications Type Micro ATX Mid Tower Color Black/Black(interior) Side Panel Window Left Side panel: Magnetic Tempered Glass Door Max CPU Cooler Height UP to 175mm Max Video Card Length Up to 340mm long video card...

  • Page 4: Chassis Parts

    Chassis Parts Removable (magnetic) dustproof mesh SSD tray Right side panel Cable clip 14cm fan x1 Left magnetic tempered glass door HDD tray Front panel iron mesh...

  • Page 5: Control Panel Functions

    Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) Audio...
  • Page 6 3.5 ˝/ 2.5˝ HDD/SDD Installation MAX 340mm video card MAX 340mm video card ▪Supports up to 340mm long video cards. 3.5″ 3.5″ 2.5″ 2.5″ ▪Supports 3.5” HDD X2 ▪Supports 2.5” SSD X4...
  • Page 7 Cooling System Installation Front Max Height of Radiator 280 mm 120mm x2 140mm x2...
  • Page 8 Cooling System Installation Front 200mm x1...
  • Page 9 Cooling System Installation Rear 140mm x1 120mm x1 Max Length of Radiator 240 mm 120mm x2 140mm x2...
