Summary of Contents for AZZA Z CSAZ-103

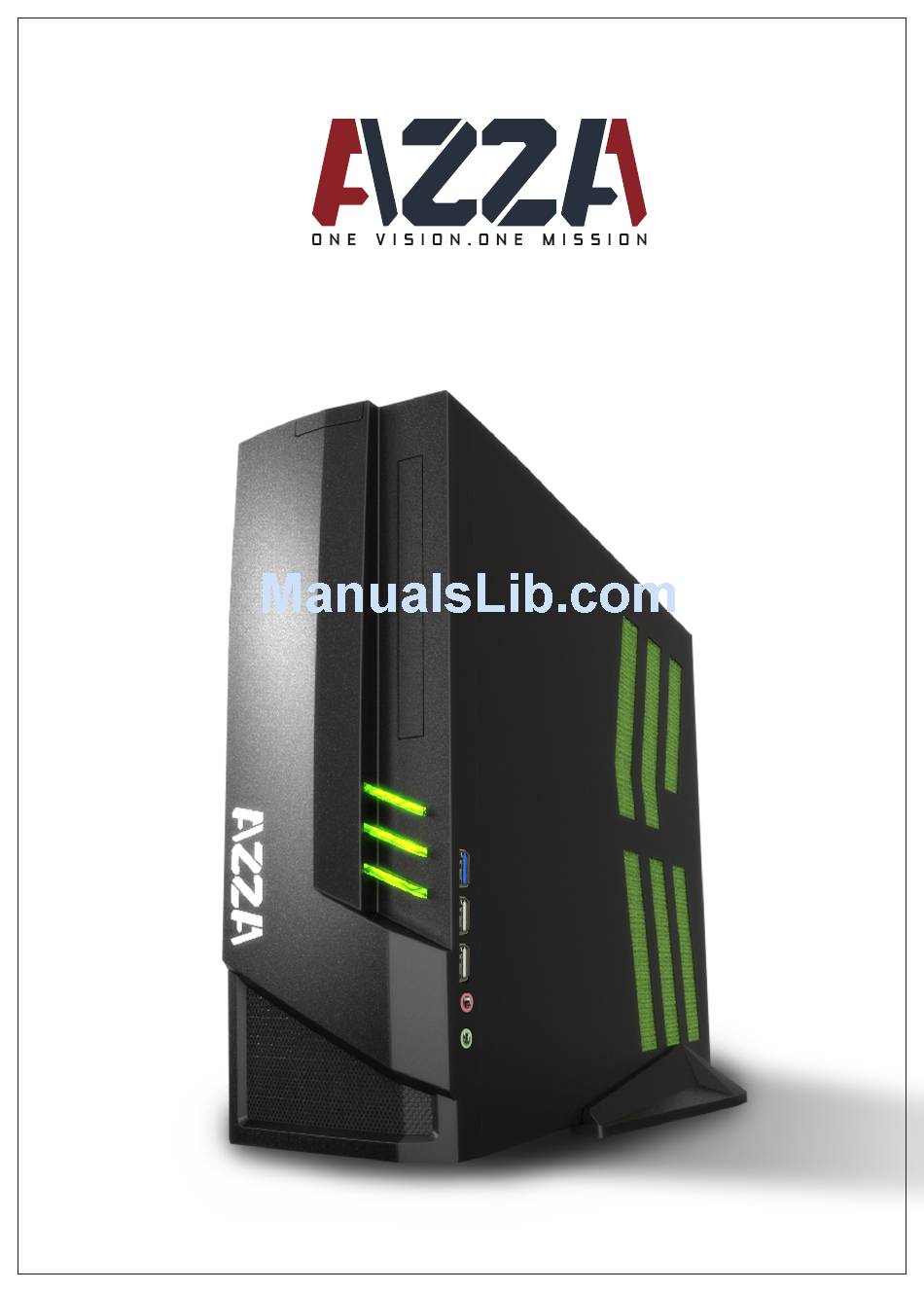

- Page 1 CSAZ-103 www.azzatek.com...
-
Page 2: Specifications
Specifications Model Model Name CSAZ-103 Model Number Specs Mini-ITX Gaming Case Type: Black/Black(inside chassis) Color: 0.6mm SECC Material: Side Panel Window: With Power Supply: up to 80mm CPU Cooler Compatibility: Mini ITX Motherboard Compatibility: Front Bottom Power Location Expansion External 5.25" Drive Bays: Internal 3.5"... -
Page 3: Parts List
Parts List Case Left Side Panel Right Side Panel Stand Front Panel USB/Audio Power Cord PCI-E cable... - Page 4 Aircooling system VGA/ PSU Cooling CPU/ WATER Cooling...
- Page 5 Diagram POWER RESET RESET 342mm USB 2.0(Black) USB 3.0(Blue) Audio 440mm 112mm Assembly kit Figure Parts Name Quantity 6*6 Hex washer screw Motherboard tray M3*5 screw M2*4 screw...
- Page 6 Installation Instruction 1.Remove the Front Cover 2.Remove the Side Cover 1.1 pull the front cover to remove as shown in the figure. 2.1 Remove the thumbscrews and pull the side covers toward the back of the case, as shown in the figure. 3.Remove the Cooling System Bracket 3.1 Loosen the screws to remove the cooling system bracket.
- Page 7 6.ODD (BD/DVD-ROM) Installation 7.Motherboard Installation 7.1 Install the I/O cover on the rear side of the chassis. 6.1 Insert the ODD device, and fasten the screws. 7.2 Place the motherboard into the slot as shown in the figure, and fasten the screws. 8.VGA Card Installation 8.1 loosen the screw, and remove the VGA holder.
- Page 8 Front Connector Installation Guide Please refer to your motherboard user manual on the sections of “USB connector”And “audio connector”. Please verify the pin definition before connecting the connectors to the motherboard Remark: 1. USB and Audio connectors have foolproof design, can only be inserted in one direction 2.
