Summary of Contents for AZZA IRIS 330

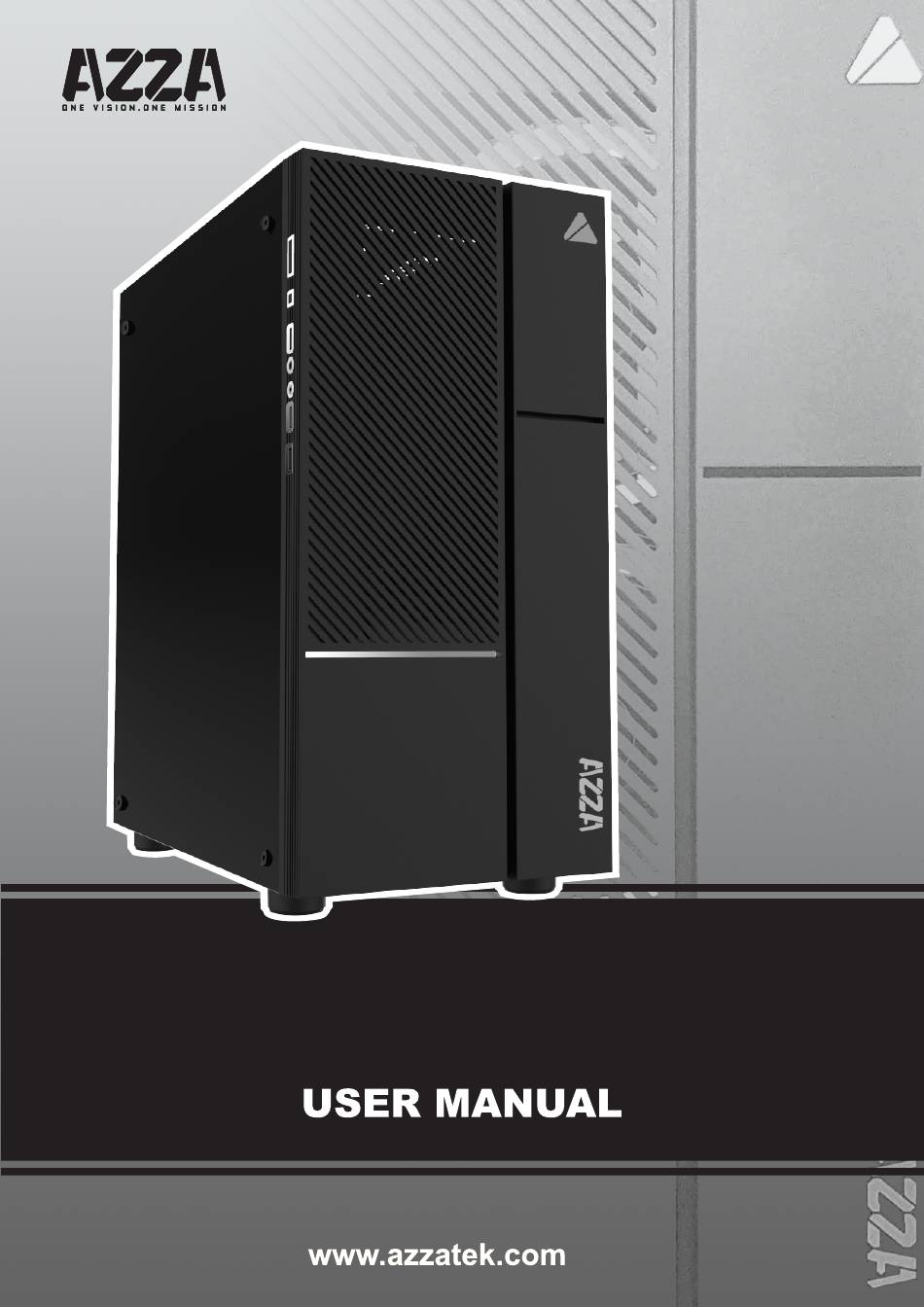

- Page 1 IRIS 330/330S...
- Page 2 Digital RGB Fan Installation For Motherboard RF Remote (2020 New Version )
-
Page 3: Physical Specifications
Model Model Name IRIS 330 Model Number CSAZ-330 Specifications Type ATX Mid Tower Color Black(exterior)/black(interior) Side Panel Window Left Side panel: Tempered Glass with rubber mounts Max CPU Cooler Height UP to 155mm Max Video Card Length Up to 380mm long video card... - Page 4 Model Model Name IRIS 330S Model Number CSAZ-330S Specifications Type ATX Mid Tower Color Black(exterior)/black(interior) Side Panel Window Left Side panel: Tempered Glass with rubber mounts Max CPU Cooler Height UP to 155mm Max Video Card Length Up to 340mm long video card Power Supply Not Included Motherboard Compatibility...
- Page 5 CSAZ-330 Hand screws for tempered glass panel x 4 Left side tempered glass panel Rubber gasket x 4 Front panel Right side metal panel I/O ports Removable (magnetic) dust proof net...
- Page 6 CSAZ-330S Hand screws for tempered glass panel x 4 Left side tempered glass panel Rubber gasket x 4 Front panel Right side metal panel I/O ports Removable (magnetic) dust proof net...
- Page 7 USB 3.0 (Blue) Reset USB 2.0...
- Page 8 CSAZ-330 MAX 380mm VIDEO card 2.5'' SSD lnstallation 3.5"HDD Slide rail screws Then mount to HDD Cage...
- Page 9 CSAZ-330S MAX 340mm VIDEO card...
- Page 10 CSAZ-330 ▪2x120mm Fan ports on the top of PSU chamber.
- Page 11 CSAZ-330 / CSAZ-330S...
- Page 12 CSAZ-330 Move HDD cage to install the fan Move HDD cage to install the Radiator on the front panel and fan on the front panel...
- Page 13 CSAZ-330S Move HDD cage to install the fan Move HDD cage to install the Radiator on the front panel and fan on the front panel...
- Page 14 Digital RGB fan installation for motherboard The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI™, ASUS™, Gigabyte™ and AsRock™. Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.
- Page 15 RF Remote ( 2020 New Version ) (Model Number: RF-DRGB-I366) Auto play 366 Modes Power / Play pause Shutdown Auto-saves last color mode Change modes. Up to 366 when shutting down. different modes available. Brightness + M+ : Mode + / M- : Mode - (Brightness adjustment 10 levels speed adjust 32 levels)
