Summary of Contents for AZZA Regis

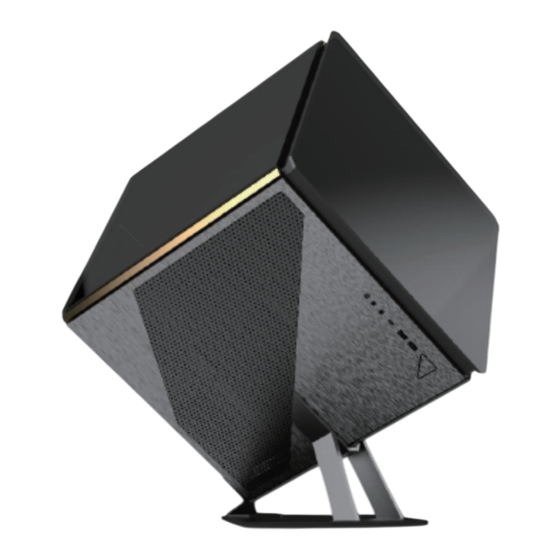

- Page 2 An infinity mirror ligh�ng design and backlit logo populates the front of the case. All digital RGB ligh�ng devices can be controlled with the Digital RGB Ligh�ng Effects included AZZA hub or with motherboard so�ware through onboard 3- pin ARGB headers. Physical Specifica�ons...
- Page 3 . Side panels can be easily disassembled. 1x 140 mm Black fan in the rear...
- Page 4 . Motherboard Installa�on. . Graphics card have two op�ons for loca�on : 1. On the motherboard 2. On the side by connect PCIE cable. PS: If length >300, the SSD tray needs to be removed. < 330 mm...
- Page 5 . Another graphics card installa�on : • You can install it here to increase the heat dissipa�on of the graphics card.
- Page 6 . Supports radiators up 240 mm / 280 mm on the right Supports radiators up 240 mm / 280 mm on the le�...
- Page 7 . Power supply Installa�on. . HDD & SSD Installa�on. 1 x HDD 2 x SSD Can be disassembled and exchanged. 1 x SSD...
- Page 8 Take out the hard drive tray...
- Page 9 . Cables from The Front Panel. 5V ARGB 5V ARGB SATA Connect to SATA cable of Power supply Plug into the RGB socket of AZZA Hub...
- Page 10 . AZZA Hub Func�on Descrip�on : 4 Pin PWM 3 Pin Addressable RGB SATA power connector 2 pin connector to Reset(or LED) Switch Ports and connectors 1.) 7x3 pin ARGB ports （supports ARGB devices : ARGB fan, ARGB strips…etc） 2.) 6x4 pin PWM fan ports 3.) 1x2 pin connector to Reset (or LED) switch...
