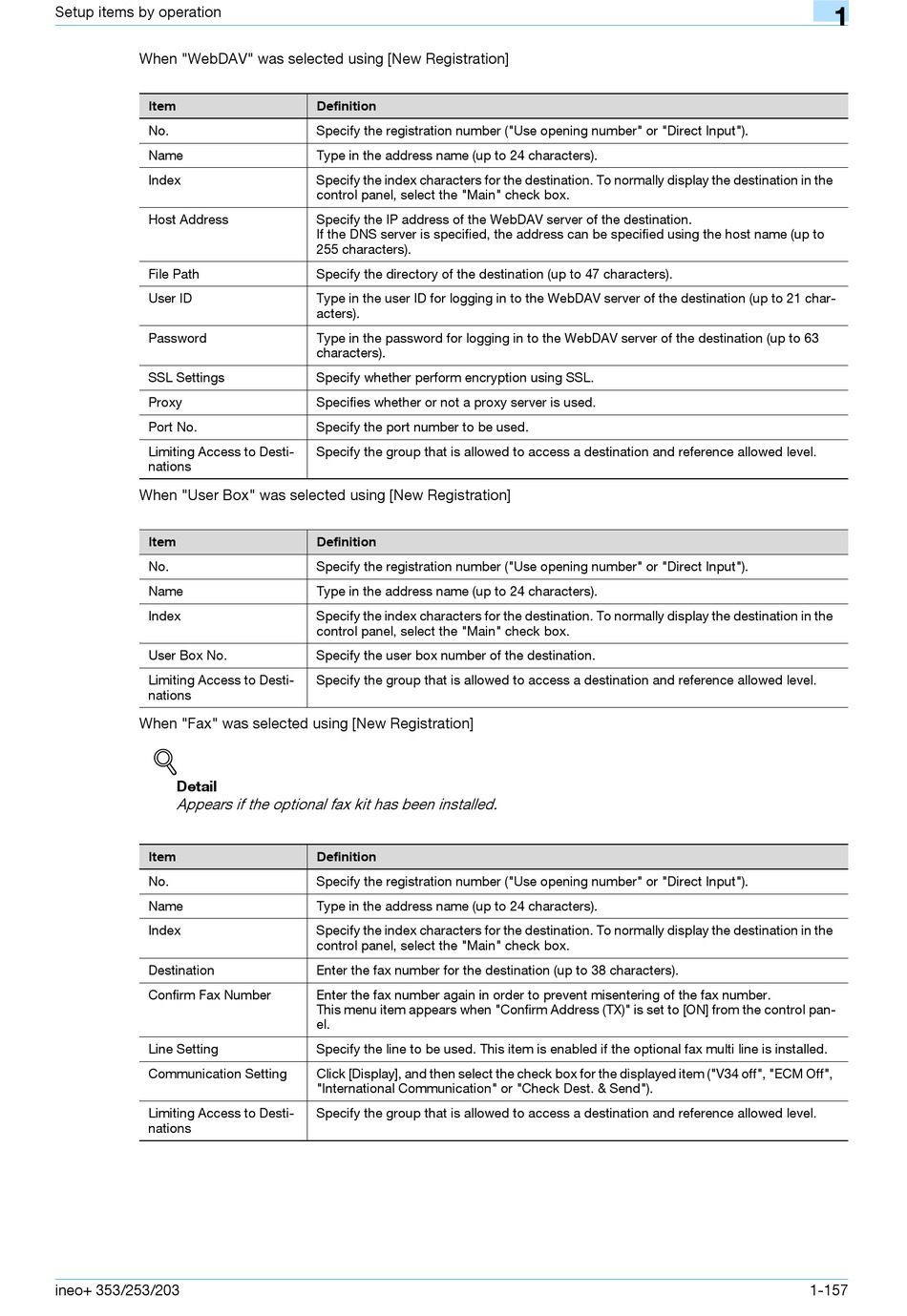

Develop ineo+ 353 User Manual page 170

Setup items by operation
When "WebDAV" was selected using [New Registration]
Item
No.
Name
Index
Host Address
File Path
User ID
Password
SSL Settings
Proxy
Port No.
Limiting Access to Desti-
nations
When "User Box" was selected using [New Registration]
Item
No.
Name
Index
User Box No.
Limiting Access to Desti-
nations
When "Fax" was selected using [New Registration]
!
Detail
Appears if the optional fax kit has been installed.
Item
No.
Name
Index
Destination
Confirm Fax Number
Line Setting
Communication Setting
Limiting Access to Desti-
nations
ineo+ 353/253/203
Definition
Specify the registration number ("Use opening number" or "Direct Input").
Type in the address name (up to 24 characters).
Specify the index characters for the destination. To normally display the destination in the
control panel, select the "Main" check box.
Specify the IP address of the WebDAV server of the destination.
If the DNS server is specified, the address can be specified using the host name (up to
255 characters).
Specify the directory of the destination (up to 47 characters).
Type in the user ID for logging in to the WebDAV server of the destination (up to 21 char-
acters).
Type in the password for logging in to the WebDAV server of the destination (up to 63
characters).
Specify whether perform encryption using SSL.
Specifies whether or not a proxy server is used.
Specify the port number to be used.
Specify the group that is allowed to access a destination and reference allowed level.
Definition
Specify the registration number ("Use opening number" or "Direct Input").
Type in the address name (up to 24 characters).
Specify the index characters for the destination. To normally display the destination in the
control panel, select the "Main" check box.
Specify the user box number of the destination.
Specify the group that is allowed to access a destination and reference allowed level.
Definition
Specify the registration number ("Use opening number" or "Direct Input").
Type in the address name (up to 24 characters).
Specify the index characters for the destination. To normally display the destination in the
control panel, select the "Main" check box.
Enter the fax number for the destination (up to 38 characters).
Enter the fax number again in order to prevent misentering of the fax number.
This menu item appears when "Confirm Address (TX)" is set to [ON] from the control pan-
el.
Specify the line to be used. This item is enabled if the optional fax multi line is installed.
Click [Display], and then select the check box for the displayed item ("V34 off", "ECM Off",
"International Communication" or "Check Dest. & Send").
Specify the group that is allowed to access a destination and reference allowed level.
1
1-157
