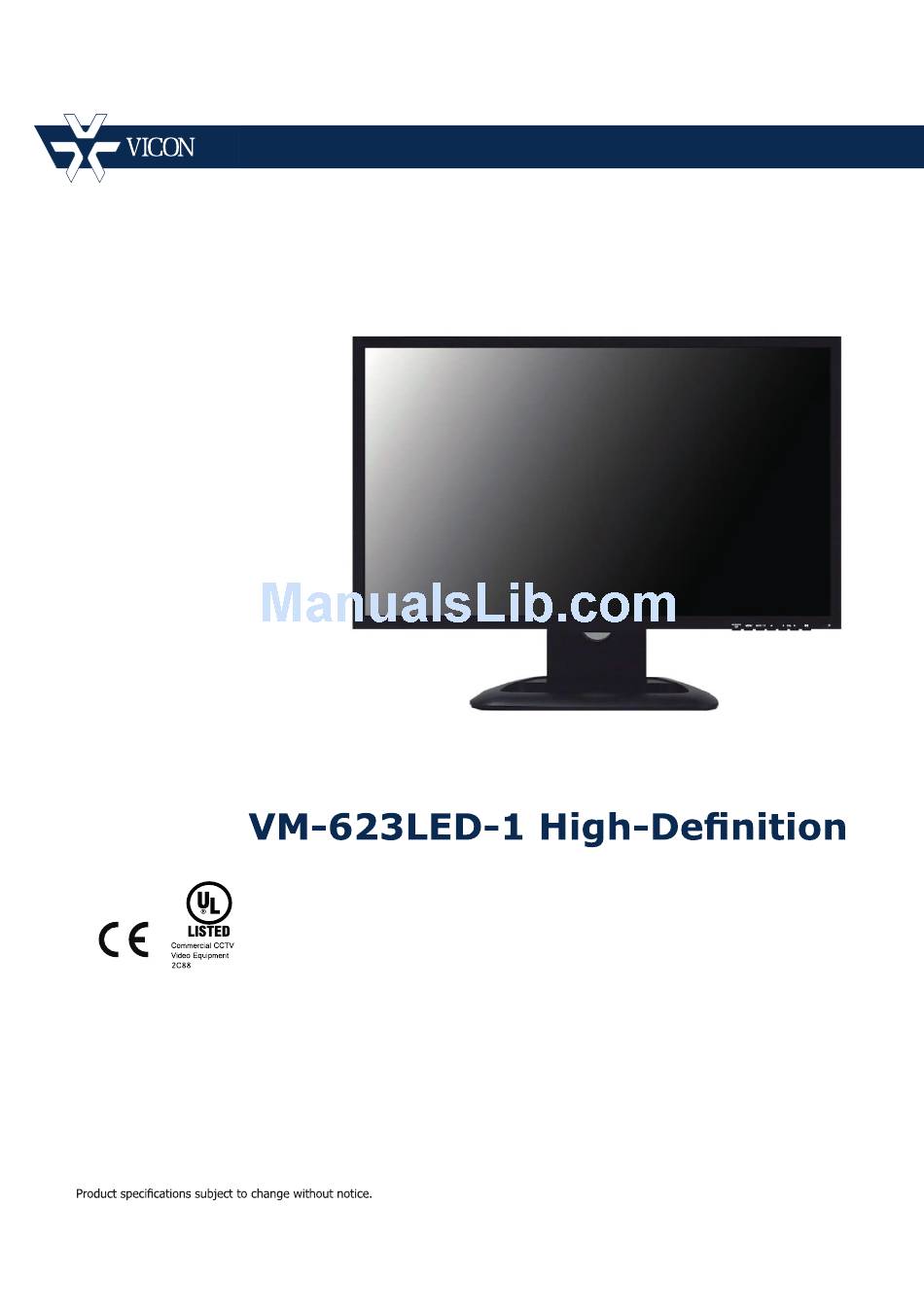

Installation and Operation Manual
XX-204-60-00
LED Monitor
Vicon Industries Inc. 131 Heartland Boulevard, Edgewood, NY 11717
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 1-800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: +44 (0)1489/566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8204-60-00
Issued: 0614
Copyright © 2014 Vicon Industries Inc. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Vicon VM-623LED-1
Summary of Contents for Vicon VM-623LED-1
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: +44 (0)1489/566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 3: Table Of Contents
Contents Important Safeguards ......................2 ~ 3 Cautions ..........................FCC Notice ........................Installation ......................... Connecting with external equipment ................. Controls and functions ....................... 8 ~ 12 Mounting guide ........................D-SUB connector pin assignment ..................Power management ......................Specifications ........................Troubleshooting guide ....................... - Page 4 The product shows a significant change in performance. 44. Replacement Parts - Use only Vicon specified replacement parts or 26. Read Instructions - Read all safety and operating instructions an approved equivalent to prevent unit damage and injury.
-
Page 5: Important Safeguards
Important Safeguards – Indoor Use(Cont) b) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. c) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading. -
Page 6: Cautions
Cautions CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à... -
Page 7: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. -
Page 8: Installation
Installation Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. Notice: Stand & screws are optional A. Connecting the stand A-1. Place the monitor with its front facing downward on a soft cloth. A-2. -
Page 9: Connecting With External Equipment
Connecting with external equipment Rear Connection 1. DC12V IN 2. AUDIO IN 3. VGA 4. DVI 5. HDMI - 7 -... -
Page 10: Controls And Functions
Controls and functions FRONT KEY CONTROL 1. SOURCE Selects VGA, DVI and HDMI inputs. Selects an option in the OSD. 2. MENU/EXIT Activates or exits the OSD. Moves previous menu or status in the OSD. 3. AUTO /▼ and ▲ Moves another option in the OSD. - Page 11 Controls and functions OSD MENUS : ► All monitor pages, sound and settings can be adjusted and changed from OSD menus. How to Adjust SD Menu: ► 1. Press the PAIRING/MENU button to enter the OSD menu. 2. Find the item you desire using AUTO/▼, ▲ buttons. 3.
- Page 12 Controls and functions 2. COLOR - 10 -...
- Page 13 Controls and functions 3. TRACKING Options Functions Value 4. VOLUME Options Functions Value - 11 -...
- Page 14 Controls and functions 5. SET UP Options Functions Value Korean, Japanese, Chinese, The language of OSD menu can be Language English, German, French, selected Spanish, Italian 0 ~ 100 - 12 -...
-
Page 15: Mounting Guide
Mounting Guide WALL MOUNTING (OPTIONAL) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws Attention You must use four M4x10 screws to assemble this monitor and the wall mount bracket. Warning If user use longer than M4x10 it may cause the damage on the unit. -
Page 16: D-Sub Connector Pin Assignment
D-SUB connector pin assignment ► PIN ASSIGNMENTS D-SUB ► ACCESSORIES 1. Power cord 2. Power adaptor 3. User manual 4. HDMI Cable 5. Stand & FS4x12 screws 2EA. 6. Stereo cable 7. Wall mount (Optional) - 14 -... -
Page 17: Power Management
Power management This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. -
Page 18: Specifications
Specifications ►► NOTE : Technical specifications are subject to change without notice. - 16 -... -
Page 19: Troubleshooting Guide
Troubleshooting guide WEEE Symbols - 17 -... -
Page 20: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. - Page 21 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 8. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
- Page 22 MEMO...
- Page 24 Vicon Industries Inc. VICON INDUSTRIES, INC. 131 HEARTLAND BLVD. EDGEWOOD, NY 11717-8315 www.vicon-security.com 631-952-2288 1-800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0)1489/566300 Fax: +44 (0)1489/566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster Phone: +49 (0) 4321 8790...
