XX171-01-00

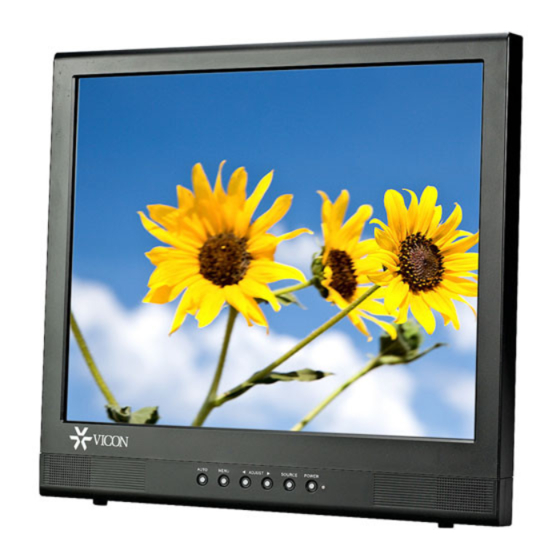

VM-617LCD AND VM-619LCD
FLAT PANEL LCD MONITORS
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489-566300
WEB: www.vicon-cctv.com
Vicon part number 8009-8171-01-00
Section 6 Rev 1106
Advertisement
Table of Contents
Related Manuals for Vicon VM-619LCD
Summary of Contents for Vicon VM-619LCD
- Page 1 Copyright © 2006 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116...
- Page 5 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. • 1 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
- Page 6 Doing so may cause poisoning. If you have got it into your mouth, wash it out and consult your doctor. If your hands or clothes have touched it, wipe them with alcohol and a cleaning cloth and then wash them well. 2 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
- Page 7 This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. • 3 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 8: Table Of Contents
Mounting the monitor on the rack……….……………………………………………………... Arm Mount (VESA standard)……….………………………………………………………...… Troubleshooting……………………………………………………………………………………………. 18 LCD Color Monitor Specifications………………………………………………………………….….…. 19 LCD Color Monitor Dimensions ………………………………………………………………………….. 20 Components (1) LCD Color Monitor (2) Accessories (a) Power Cord (b) User Manual 4 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... - Page 9 ■ Video looping output supports 75 ohm auto termination ■ Support audio and live-out function with stereo phone jack output ■ VESA standards (100mm X 100mm) bracket ■ Optional rack mount bracket for 19” rack console (tiltable style) • 5 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 10: Exploring The Monitor
Exploring the Monitor The monitor is operated by using the buttons on the front panel. The side panels provide the inputs to connect other equipment to the monitor. Front Panel Back Side 6 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... - Page 11 DC OUTPUT DC 12V / 500mA power output (For external devices) PC AUDIO IN VGA IN AC POWER SOCKET 100VAC ~240VAC Input Note: Audio Connections Audio 1 Audio 2 PC Audio S-Video • 7 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
- Page 12 BNC cables provide better connection and picture performance. NOTE: RCA Audio Cable To prevent equipment damage, do not plug in any power cords S-Video until you have finished connecting BNC Connector all equipment. PC Audio Connector VGA Connector 8 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 13: Connecting Devices
Although these monitors support above RGB signals, any resolutions not matched by this monitor (SXGA) will be expanded or shrunk, which will affect image quality. To view high-quality images, it is recommended that the PC's resolution should be set to SXGA (1280x1024) resolution. • 9 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... - Page 14 2. VGA: When there is no input signal, LCD monitor will go into power saving mode after 5 seconds. 3. PIP: When there is no signal on both input sources, LCD monitor will go into Power Saving mode after 120 seconds. 10 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 15: General Setup
This function allows the channel title to be displayed on the monitor. Channel Display: If video signal source comes directly from CCD camera, use CCD Mode to CCD Mode: obtain better picture performance. Returns to factory default value. Default: • 11 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... - Page 16 Allows adjustment for horizontal position. H-Position: Allows adjustment for vertical position. V-Position: This function provides a small scale of backlight enhancement to AGC Control: compensate for insufficient luminance. Returns to factory default value. Default: 12 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 17: Vga Setup
When the phase is not adjusted properly, the picture will be unclear. Therefore this value should be carefully adjusted. Note: Improper adjustment will cause image failure. Sets monitor to the original factory setting. Default: • 13 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... - Page 18 Audio Setup Controls built-in speakers’ output volumes. Volume: Disables the audio function. To enable, press MUTE again. Mute: Returns audio settings to the original factory setting. Default: 14 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors...
-
Page 19: Pip Setup
Controls the PIP window vertical position. Sub Window V-Position: Enables switching PIP sources. Switching: Controls PIP source switching time. Switching Time: Selects PIP mode audio source. Audio Source: Note: PIP hot key: Auto + Menu • 15 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... -
Page 20: Lcd Monitor Mounting Guide
For further information, refer to the Arm Manual. Mounting the monitor on the rack Rack Mount Note: When adjusting to a rack, an optional rack mount is needed for the back side of the LCD monitor. 16 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... -
Page 21: Troubleshooting
● Try pressing Volume Up button in the Menu. Poor color, sound OK ● Check cable connections. ● Adjust Video set up menu. Poor color or no color ● Adjust Color and/or Tint (NTSC only). • 17 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... -
Page 22: Lcd Color Monitor Specifications
Accessories Power Cord, User Manual (∗1) The brightness spec. is from panel spec. (∗2) It is not guaranteed for all the specified range. Design and Specifications are subject to change without notice. 18 • XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... -
Page 23: Lcd Color Monitor Dimensions
LCD Color Monitor Dimensions • 19 XX171-01-00 Rev 1106 VM-617LCD/VM-619LCD Flat Monitors... -
Page 24: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. - Page 25 Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion.
