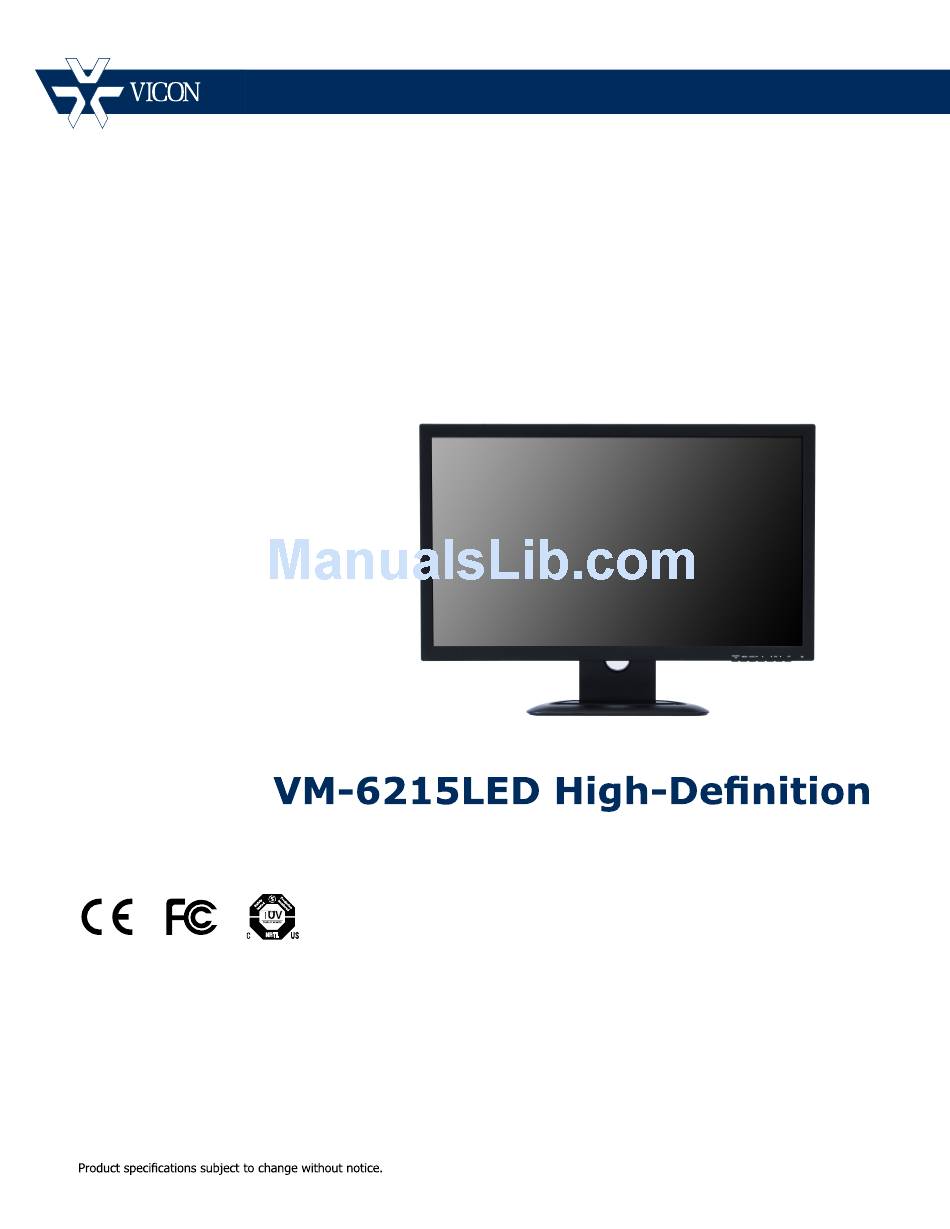

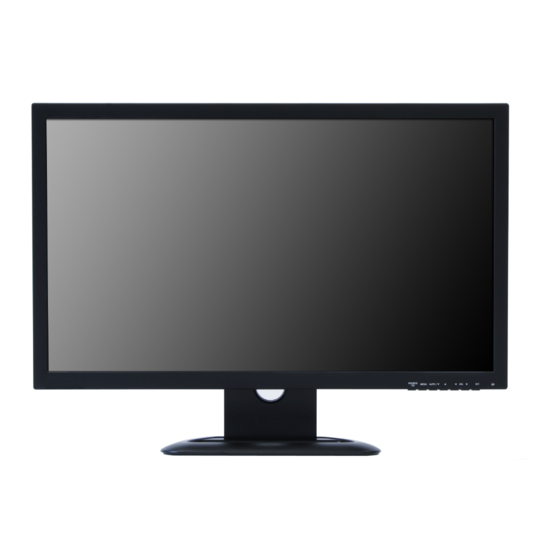

Vicon VM-6215LED User Manual

High-definition led monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
XX204-50-00
LED Monitor
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8204-50-00
Issued: 313
Copyright © 2013 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for Vicon VM-6215LED

Summary of Contents for Vicon VM-6215LED

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 3: Important Safeguards - Indoor Use

    Important Safeguards – Indoor Use GRAPHIC SYMBOL EXPLANATION 13. Lightning - Disconnect the product from its power source and The lightening bolt symbol alerts the user to the presence of cable system when possible to prevent damage due to lightning dangerous voltage that may present the risk of electric shock.
  • Page 4 Important Safeguards – Indoor Use (Cont) 25. For Rack-Mounted Units Only – The following precautions apply to all rack-mounted units. Elevated Operating Ambient - If installed in a closed or multi- unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.

  • Page 5: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
  • Page 6 Installation …….. ………………………………………………………………………….. Connecting with external equipment ……………….…………………………………… Remote functions ………..………………………………………………………………… Controls and functions …………………………………………………………………….. 10 ~ 17 Mounting guide …………………………………………………………………………….. D-SUB connector pin assignment ……………..………………………………………… Power management ………..……………………………………………………………… Specifications ………….…………………………………………………………………… Troubleshooting guide …………….…………………………………………………..This Monitor was Manufactured by ISO 9001 Certified Factory - 6 -...

  • Page 7: Positioning Your Display

    Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & Screws are optional A. Connecting the stand 1. Place the monitor with its front facing downward on a soft cloth. 2.

  • Page 8: Rear Connection

    Rear Connection 1. AV2 OUT. 2. AV2 IN. 3. AV1 OUT. 4. AV1 IN. 5. TRIGGER IN. 6 & 7. AUDIO R & L (AV1 & AV2). 8. PC STEREO IN (VGA & DVI). 9. VGA. 10. DVI. 11. HDMI. 12.

  • Page 9: Remote Controller(Optional)

    Remote Controller(Optional) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects an input source. 3. AUTO Auto geometry adjustment in the RGB-PC source. 4. HOLD Stops the Trigger & Auto switching functions. 5.
  • Page 10 Bottom Key Control 1. SOURCE/ Selects an input source. Enters a submenu or accepts your selection in the OSD menu. 2. MENU Activates or exits the OSD. Moves previous menu or status in the OSD. 3 & 4. AUTO/▼ & ▲ Moves another option in the OSD.

  • Page 11: Osd Menu Description

    OSD Menu Description All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below Color Tone Sets color tone. See table below Mute Mutes speaker sound. Off or On Volume Adjust the level of audio volume. 0 ~ 100 Size Display picture size. See table below Reduces noise of the picture.
  • Page 13 Color Tone Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. User To manually adjust the color tones(Red, Green, and Blue). Size Sets the image size to 4:3 Panorama Sets the image to panorama Zoom1...
  • Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On Input Source Selects the input source for the PIP area. See table below Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, PIP Mode PIP, PBP1 or PBP2 and full screen side by side.
  • Page 15 D. Setup Option Function Value Resets the monitor settings to the factory Reset default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland Changes background of monitor menus. OSD Tone Transparency or On (e.g.
  • Page 16 Trigger Option Function Value Trigger Enable Activates the trigger feature. Off or On AV1, AV2, RGB-PC, DVI Trigger Input Selects the input source for the Trigger. or HDMI Buzzer Not Operation. Selects the amount of time, in seconds, Trigger Time 3 ~ 100 that the monitor displays the trigger Input image.
  • Page 17 N/C(Normally Closed): The Trigger function is activated when the trigger cable is opened. N/O(Normally Opened): The Trigger function is activated when the trigger cable is closed. High: The Trigger function is activated when the trigger signal is DC 2~5[V]. Low: The Trigger function is activated when the trigger signal is DC 0~0.6[V].
  • Page 18 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. ※...

  • Page 19: Pin Assignments

    ▶ Pin Assignments Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB Accessories ▶ 1. Power cord. 2. Power adaptor 3.
  • Page 20 Power Consumption Power Consumption Mode 18.5” 21.5” Turned On < 17.16W < 21.6W < 1W Turned Off LED Indicator The power management feature of the monitor is comprised of two stages: Turned on(blue) and turned off(red). Mode Monitor Operation Turned On Blue Normal Operation Not Operation...
  • Page 21 21.5” Type 21.5˝ Diagonal AM-TFT (Active-Matrix) Pixel pitch(mm) 0.24825(H) x 0.24825(V) Brightness 250cd/ m² (Typical) Type Contrast ratio 1000:1 (Typical) Viewing angle 170°/160°(H/V) Response time 5ms (Typ., on/off) Resolution (H x V) 1920X1080@60Hz Horizontal: 31~80kHz, Frequency Vertical: 56~75Hz VIDEO (2ch input 1.0Vp-p, 75Ω terminated, 2ch loop-through out) HDMI (High Definition Multimedia Interface) DVI (Digital Video Interface) Input Signal...

  • Page 22: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

  • Page 23: Shipping Instructions

    Vicon Industries Inc. 131 Heartland Boulevard Edgewood, NY 11717 Phone: 631-952-2288; Toll-Free: 1-800-645-9116; Fax: 631-951-2288 For service or returns from countries in Europe, contact: Vicon Industries (U.K.) Ltd Brunel Way Fareham, PO15 5TX United Kingdom Phone: +44 (0)1489/566300; Fax: +44 (0)1489/566322...

  • Page 24: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: Monitors, all models: One year from date of original retail purchase.
  • Page 25 MEMO...
  • Page 26 MEMO...
  • Page 28 Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com...
