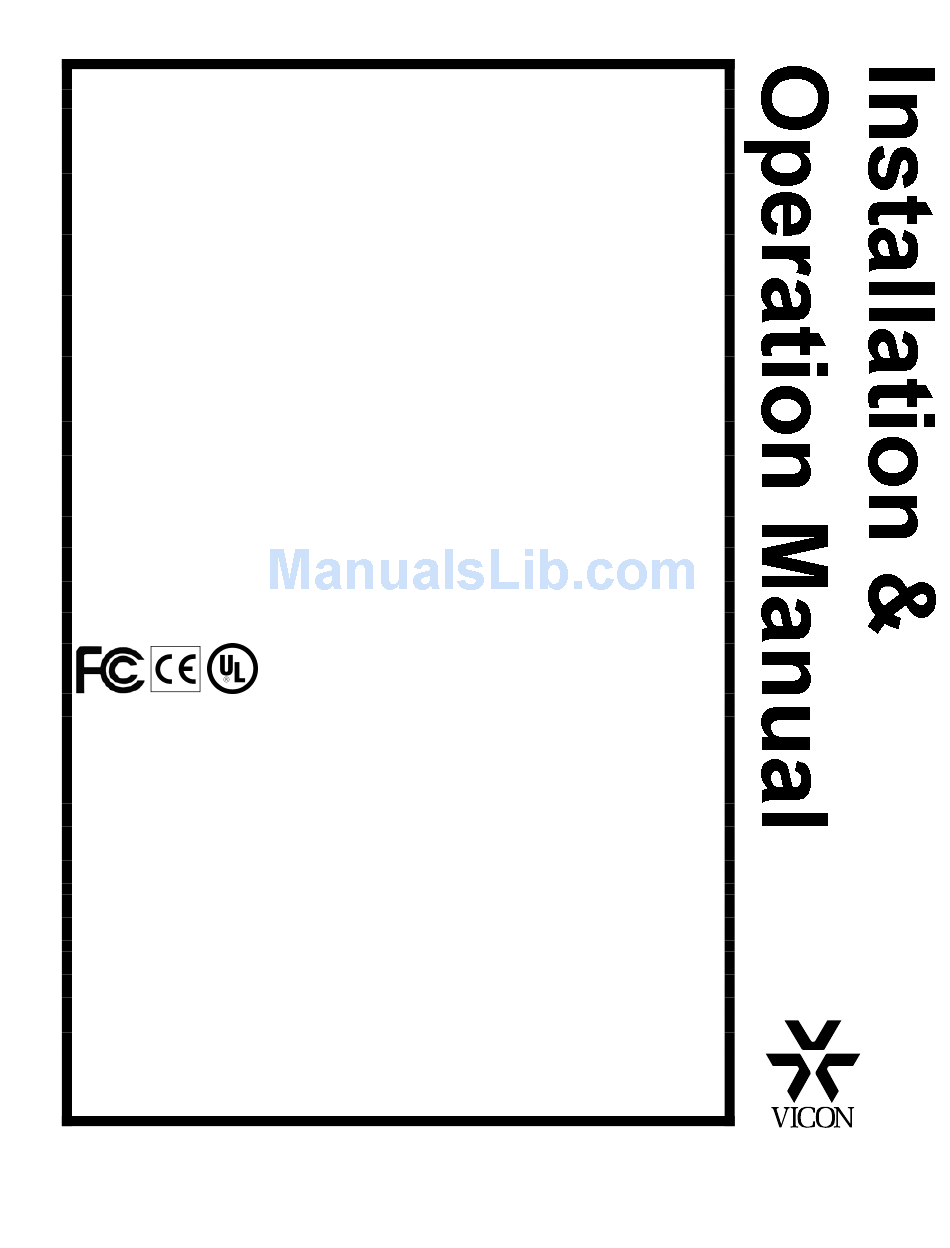

XX204-40-01
VM-632LCD-1
Flat Panel LCD Monitor
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not
be used for this purpose.
Copyright © 2010 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8204-40-01
Rev 0310

Advertisement

Table of Contents
loading

Related Manuals for Vicon VM-632LCD-1

Summary of Contents for Vicon VM-632LCD-1

  • Page 1 VM-632LCD-1 Flat Panel LCD Monitor Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 15 MOUNTING GUIDE …………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..

  • Page 4: Important Safeguards - Indoor Use

    Important Safeguards – Indoor Use GRAPHIC SYMBOL EXPLANATION 12. Lightning - Disconnect the product from its power source and The lightening bolt symbol alerts the user to the presence of cable system when possible to prevent damage due to lightning dangerous voltage that may present the risk of electric shock.
  • Page 5 Important Safeguards – Indoor Use (Cont) 22. For Rack-Mounted Units Only – The following precautions apply to all rack-mounted units. Elevated Operating Ambient - If installed in a closed or multi- unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...

  • Page 7: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 8: Back Panel Control

    A. BACK PANEL CONTROL 1. AC POWER IN 2. HDMI IN 3. DVI IN 4. PC-RGB(D-SUB) IN 5. PC STEREO IN 6. AUDIO OUT(Speaker) 7. COMPONENT Y/Pb/Pr & SOUND L/R IN 8. TRIGGER INPUT B. SIDE PANEL CONTROL 1. VIDEO1(AV1) IN 2.

  • Page 9: Remote Controller(Optional)

    C. REMOTE CONTROLLER(Optional) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects an input source. 3. AUTO Auto geometry adjustment in the RGB PC source. 4. HOLD Stops the Trigger &...

  • Page 10: Power Led

    D. FRONT KEY CONTROL 1. SELECT Selects an input source. Enters a submenu or accepts your selection in the OSD menu. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. 3 &...

  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below. Color Tone Sets color tone. See table below. Mute Mutes speaker sound. Off or On. Volume Adjust the level of audio volume. 0 ~ 100. Size Display picture size. See table below.
  • Page 13 Color Tone Custom To manually adjust the color tones(Red, Green and Blue). Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. 1) Unavailable in AV1 and AV2. Size Wide Sets the image size to wide.
  • Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On. Input Source Selects the input source for the PIP area. See table below. Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, Size , or and full screen side by side.

  • Page 15: Image Persistence

    D. Setup Option Function Value Resets the monitor settings to their factory Reset default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland. Changes background of monitor menus OSD Tone Transparency or Blue. (e.g.
  • Page 16 3) 120Hz The 120Hz feature eliminates motion blur and improves image quality in the fast- moving images. ※ NOTICE: When watching moving images on a computer or a DVR through this monitor using a PC- RGB, DVI or HDMI input, you can see blurred images on the edge of icons and pop-up windows but, this is not a defect.
  • Page 17 N/C( Normally C losed): The Trigger function is activated when the trigger cable is opened. N/O( Normally Opened): The Trigger function is activated when the trigger cable is closed. High: The Trigger function is activated when the trigger signal is DC 2~5[V]. Low: The Trigger function is activated when the trigger signal is DC 0~0.6[V].
  • Page 18 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the “VESA 200” standard wall mount (not included in the delivery). 16 ………………………………………………………………………. INSTRUCTION MANUAL...
  • Page 19 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ACCESSORIES ▶ 1. Power cord 2. User’s manual 3.

  • Page 20: Led Indicator

    This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.

  • Page 21: Input Signal

    32” 32˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.36375(H) x 0.36375(V) BRIGHTNESS: 500cd/㎡(Typical) LCD-Type CONTRAST RATIO: 1300:1(Typical) VIEWING ANGLE: 178°/178°(H/V) RESPONSE TIME: 6msec(G-to-G, typical) RESOLUTION (H x V) 1920X1080 @120Hz FREQUENCY HORIZONTAL: 31~80KHz, VERTICAL: 56~75Hz VIDEO(2ch input 1.0Vp-p, 75Ω terminated, loop-through out) S-VIDEO(1ch input (Y/C), loop-through out) COMPONENT(Y,Pb,Pr, Sound L/R) DVI D(Digital Video Interface)

  • Page 22: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 23 Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase.
  • Page 24 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
