Sunricher SR-2808 User Manual

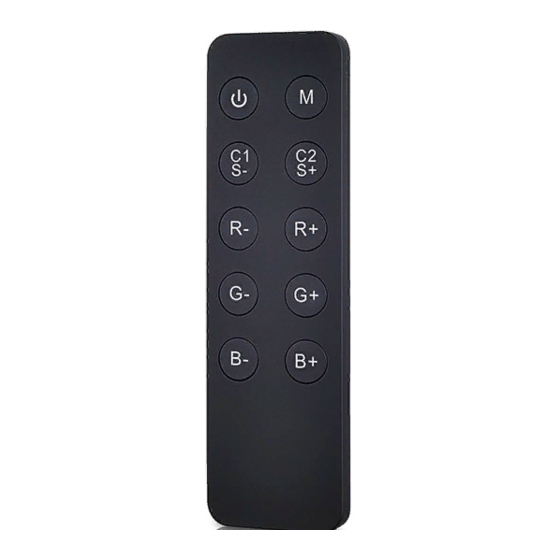

SR-2808 One Zone RF Wireless LED RGB Controller
SR-2808 and its receiver is a one zone RF wireless RGB controller. 1
remote SR-2808 can control an endless number of receivers
synchronously. All receivers will share the same ID address, can also
work with data repeater to expand output unlimitedly.

2.Performance Parameter

2.1 Remote: (SR -2808) Operation voltage: 3VDC Cr2025 Battery
Operation frequency: 434MHZ / 868MHZ
Receiver: (SR-1004TA,SR-1004FA,SR-1004EA,SR-1004TA3,
SR-1004TA7)
SR-1004TA: 12-36VDC input, 3 channels x 3A, constant voltage,
3 channels x (36-108)W
SR-1004FA: 12-36VDC input, 3 channels x 5A, constant voltage,
3 channels x (60-180)W
SR-1004EA: 12-24VDC input, 3 channels x 8A, constant voltage,
3 channels x (96-192)W
SR-1004TA3:12-36VDC input, 3 channels x 350mA, constant current,
3 channels x (4.2-12.6)W
SR-1004TA7:12-36VDC input, 3 channels x 700mA, constant current,
3 channels x (8.4-25.2)W
2.2 Receiver:(SR-1004FA)
12-36VDC
input

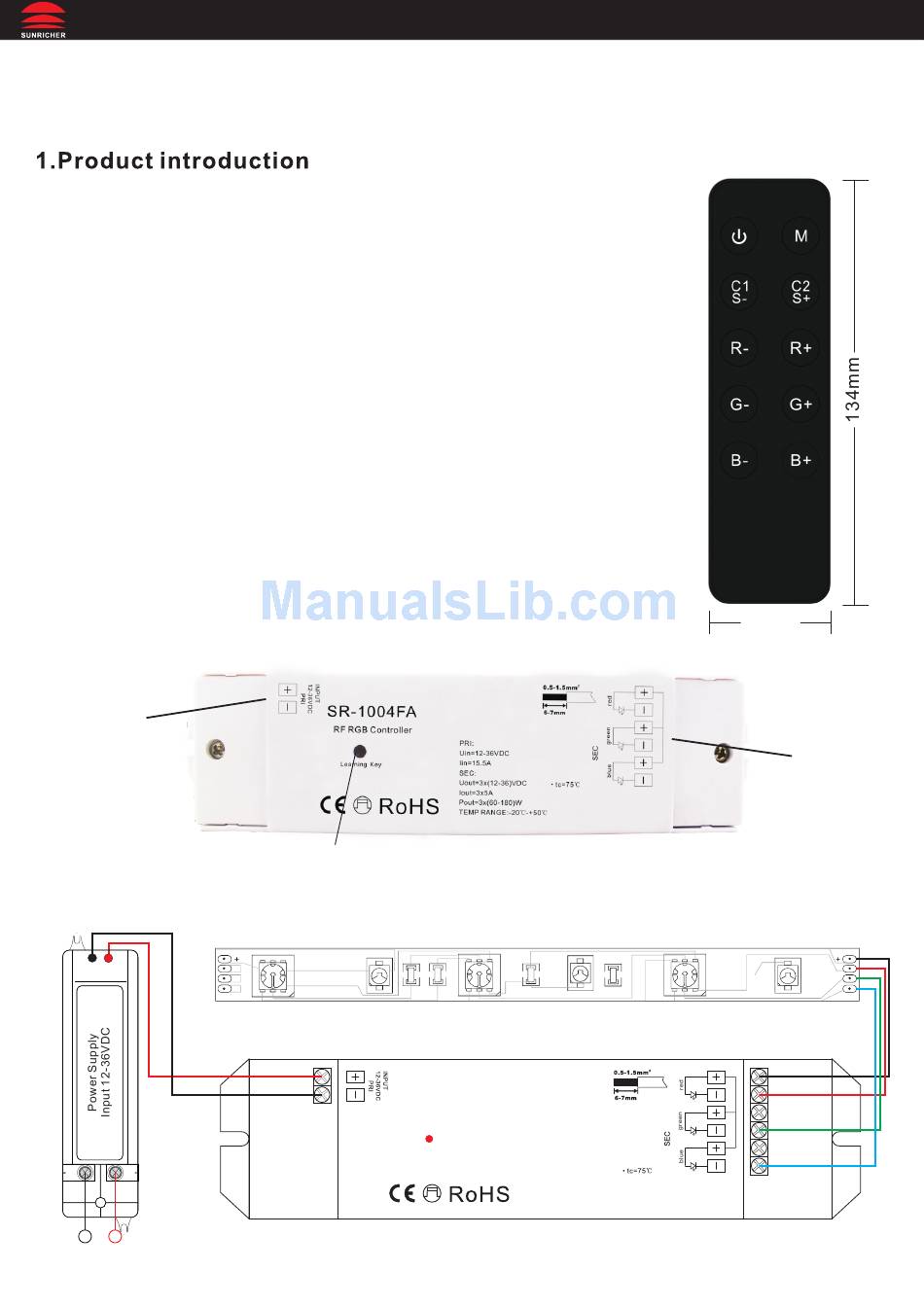

3.Wiring diagram

N L
110-240V
Add:3/F HuoLiBao Bld,No.11 XinXi Rd,Hi-Tech Park,Nanshan Dis.,Shenzhen,China
Tel:(+86)-0755-86017771
www.sunricher.com

User Manual

Learning Key
R
G
B
SR-1004FA
RF RGB Controller
E-mail:sales@sunricher.com
www.sunricher.com.hk
Fax:(+86)0755-26765389
skype:sunricher_info
RGB color changing LED light
PRI:
Uin=12-36VDC
Iin=15.5A
Learning Key
SEC:
Uout=3x(12-36)VDC
Iout=3x5A
Pout=3x(60-180)W
TEMP RANGE:-20℃-+50℃
