Appendix

7.1

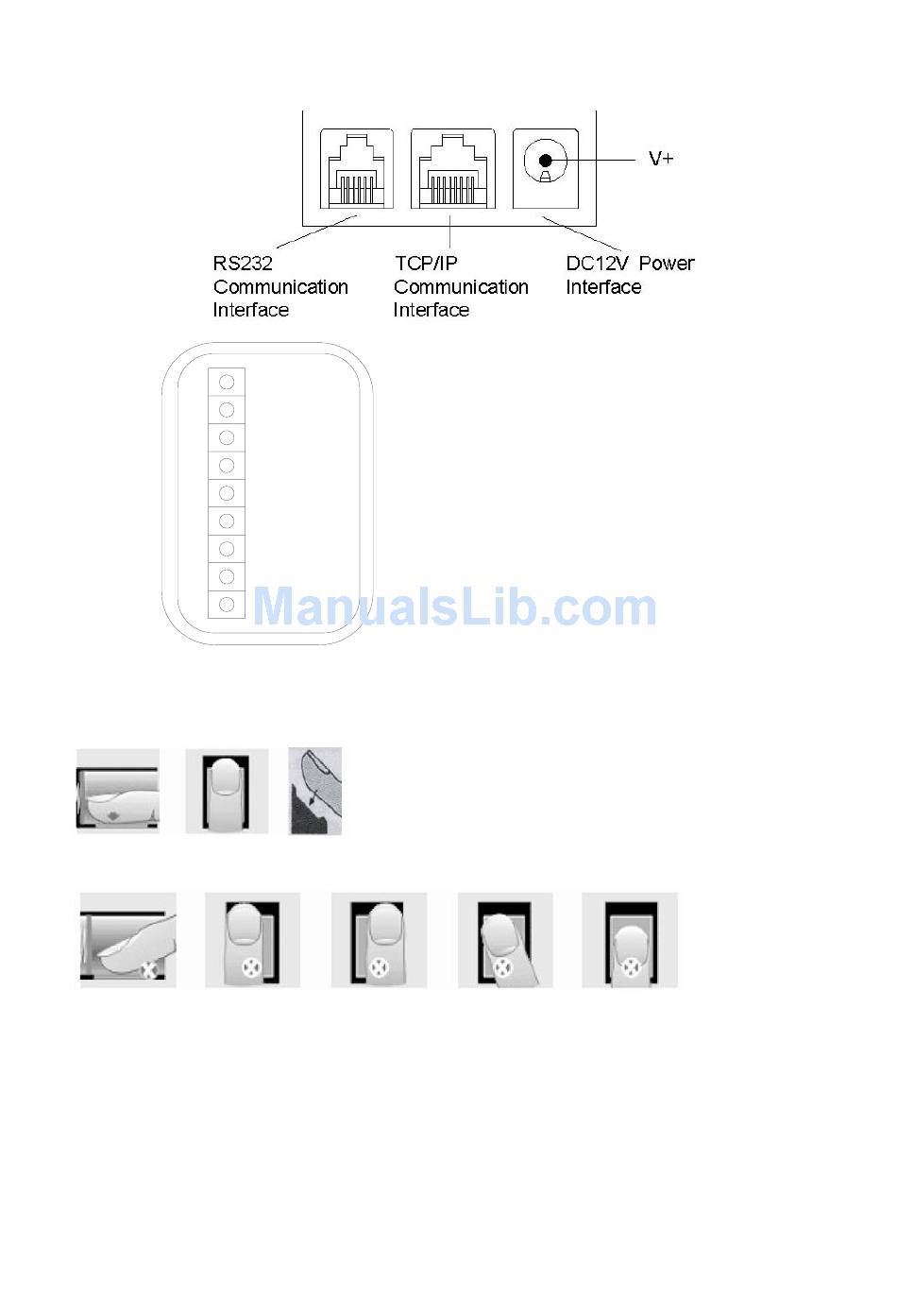

Interface illustration

7.2

Illustration of pressing finger

Correct pressing finger method:
Wrong pressing finger method:
Gentle
1. Please register and punch by thumb or index finger if possible
2. Press any key to activate the sleeping unit
3. Please stand in a line and don't punch with finger not registered.
4. Please avoid direct sunlight, water, collision and use in extreme environment.
Vin+ —— 12V Power in
GND —— Ground
W0 —— Wiegand Signal D0
W1 —— Wiegand Signal D1
485A —— RS485 Positive
485B —— RS485 Negative
NC —— Dry contact signal
COM —— Dry contact signal public connector
NO —— Dry contact signal connector (normal open)
Left Right Incline Down
