Anviz CX7 Quick Manual

Anviz CX7 Quick Manual

Touchless face recognition time clock
Hide thumbs Also See for CX7:

Advertisement

Quick Links

Download this manual
CX7
Touchless Face Recognition Time Clock

Advertisement

loading
Need help?

Need help?

Do you have a question about the CX7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anviz CX7

Summary of Contents for Anviz CX7

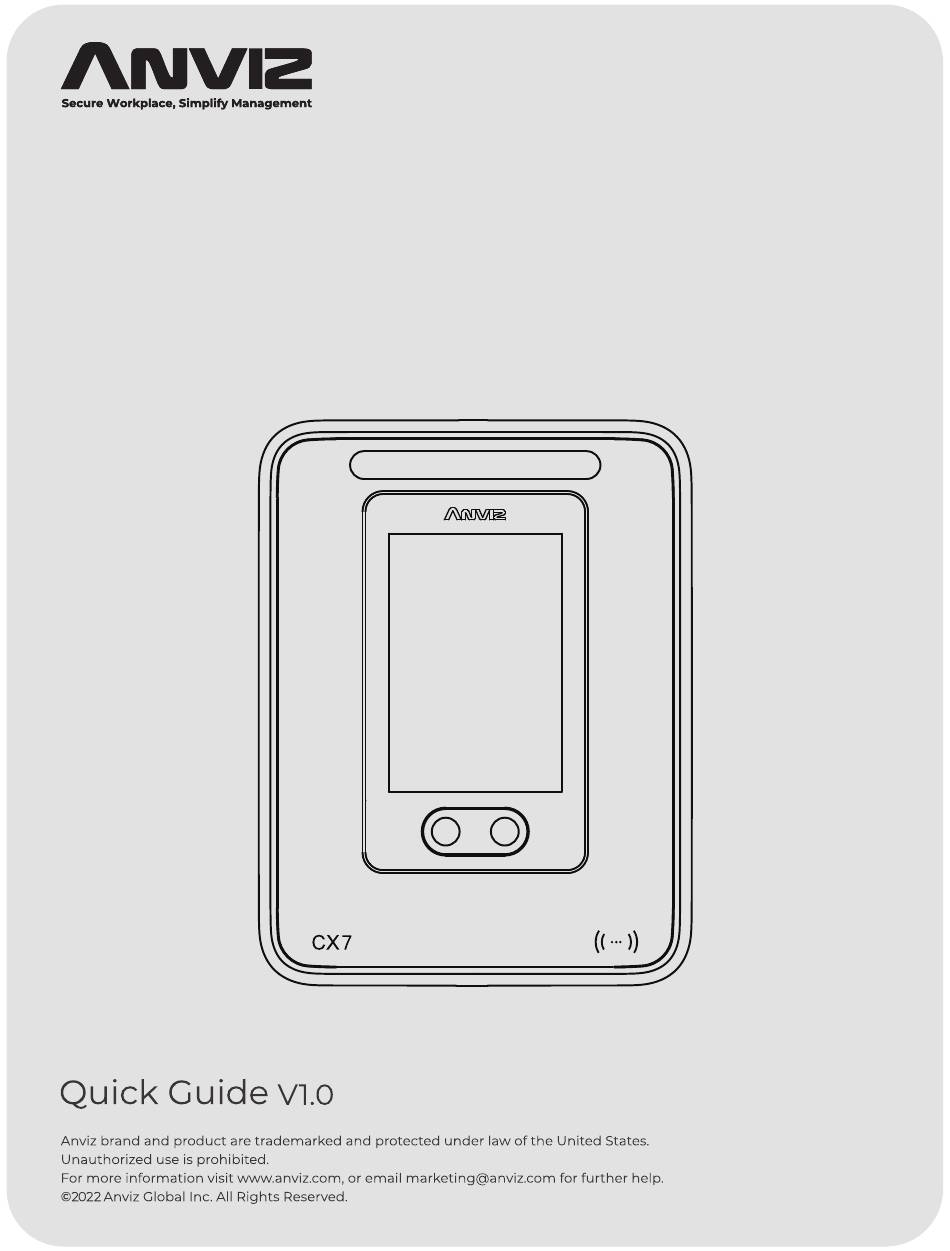

  • Page 1 Touchless Face Recognition Time Clock...
  • Page 2 Components 1. Create CrossChex Cloud Account Before you can setup your nex CX7, you will need to setup your Cross Chex Cloud Account. Open your web browser and visit https://us.crosschexcloud.com Then click the “Sign up for a new account” follow the prompts.
  • Page 3 Follow the tips to make the setup as easily as possible box to continue. Notice: The “Register to receive periodic newsletter and updates on products, software and services” is optional, feel free to choose it or not.
  • Page 4 Follow the tips to make the setup as easily as possible. ： date and time. Follow the tips to make the setup as easily as possible. tab. Please record the Company ID Cloud Password use to make Time attendance terminal connect with Cloud system.
  • Page 5 2. Active your CX7 Time Clock 1. Plug your Time Clock into a power outlet to power on the terminal. 2. Select the time clock display language which you need. And Click “Set” to save the setting and skip to next steps.
  • Page 6 WIFI SSID to next step WiFi Network Settings WiFi Connect Anviz Global Password Anviz M-Bio-28411C Anviz O ce CA F1 Anviz O ce CA F2 Ethernet WIFI Anviz O ce CA F5 ._@/# Connect and click Next to Cloud. WiFi Connect...
  • Page 7 If you do not have an account, please set one up, as outlined in step 1. 10. Click “Set” the terminal will automatically detect cloud server connection. And you can Skip it to start enjoy your CrossChex Cloud! Cloud Cloud anviz 100% Users Geteway Test 100% Passwd DNS Test...
  • Page 8 , you´ll be automatically forwarded to area of the software. 2. Click to create a new department, and enter the new department’s information. Click to save it. 3. You can always Edit the already created departments or Delete them by using the checking boxes at their respective left side, and the buttons on the right side, as shown in the next picture: Notice:...

  • Page 9: Device Management

    4. Device management The device management is checking the hardware information and assign the device to department. , and Device. Then able to see the new department I want to assign it. Notice: Delete Terminal will erases your data from the terminal and delete it from the Cloud system.

  • Page 10: Add Employee

    5. Add employee The device management is checking the hardware information and assign the device to department. . Then able to see the default employee in the system. 2. At the right side of the to start creating a new employee: Notice: cannot be deleted from your account.
  • Page 11 3. An “ ” window will popup, all the items marked with employee information and click "Next" to save and next step. for employee use to clock in and clock out at time clock. Notice: The Default mode means that any technology can be accepted, so considering this user has password, RFID card and facial template, the or a clock Out.
  • Page 12 Multi Dept employee. Select the additional departments the employee will be also the employee has an overtime beyond the scheduled limit at shift and at the bottom of this window, we will see the facial template. Click Face button.
  • Page 13 Face Enroll: please choose and select the device for real time enrollment. the steps on the device’s display or voice prompt to enroll face. Upload Photo: If the employee is not nearby, the upload photo option next window and select the chosen photo. 10.
  • Page 14 : active the different system administrator privileges for the employee. The default is Inactive, the employee without any privileges. vacation, etc. : Choosing this option the employee will have system administration privileges. advance, The employee will be able to log into the account.
  • Page 15 employee a working shift. 13. In the next windows input the start date and end date for the shift. Select Exclude Weekend to consider such days as rest day, the shift schedule will jump holidays and weekend. The detail setup for shift ple...
  • Page 16 6. Device wall mount The CX7 terminal support desktop and wall mount install. Step 1：Installation Position Please specify the position of the installation according to the actual uses.
  • Page 17 Step 2：Terminal Installation wall according to the mounting holes. Fix backplate and connect cables. (Include 7. CX7 Access Control Connection...
  • Page 18 8. CX7 Access Control Connection After CX7 setup the cloud connection. There are four status icon display on the top of the screen. Main The status of the LAN connection. Network T&A The status of the Cloud connection. Access Test The status of the Access Control.
  • Page 19 Network Setting -Ethernet Device IP: Set the device IP Network Ethernet manually in case Static IP mode Active Options Static Retrieve IP mode Ethernet WiFi Get DNS Manual Subnet Mask: Set the device Subnet Device IP 192.168.0.31 mask manually in case Static IP mode Subnet mask 255.255.255.0 192.168.0.1...
  • Page 20 Network Setting -Ethernet Device IP: Set the device IP Network Ethernet manually in case Static IP mode Active Options Static Retrieve IP mode Ethernet WiFi Get DNS Manual Subnet Mask: Set the device Subnet Device IP 192.168.0.31 mask manually in case Static IP mode Subnet mask 255.255.255.0 192.168.0.1...
  • Page 21 Network Setting - Cloud Cloud Cloud anviz Users 100% Geteway Test Passwd 100% DNS Test Server IP US-Server Internet Test 100% 100% Cloud Server Test Please visit https://us.crosschexcloud.com/ if you do not have an account yet, you can re it anytime by accessing Menu >...
  • Page 22 T&A (Time and Attendance Settings) Duplicate Punch Range punching of the same employee to prevent the system from generating duplicate punching records. memory is almost full. : Fingerprint template comparison accuracy. Access (Access Control Settings) Access door Relay output mode Tamper alarm Door sense switch Tamper alarm: Active the tamper alarm function...

  • Page 23: Warranty And Disclaimer

    Test In this mode, the user can test device´s keyboard, LCD display and speaker Update 9. Warranty and Disclaimer materials and workmanship and will substantially conform to the applicable Documentation in effect as of the date of manufacture for a This warranty does not apply to accessories.
  • Page 24 engineer for an RMA number. with RMA number in 72 hours, after receiving an RMA number, Channel Customer. . An RMA number is valid for two months from the date of its issuance. An RMA number that is more than two months old is null and void, technical support engineer.
  • Page 25 Please gently wipe the screen and panel with soft materials. Avoid scrubbing with water or detergent. The recommended power of CX7 terminal is DC 12V ~ 2A. The device will function less effective in case the power supply cable extends too long.

  • Page 26: Technical Support

    Technical Support Contact us seven days a week. Submit a Ticket Community Join Anviz Community (community.anviz.com) If you have any question about Anviz products or suggestions to share.
