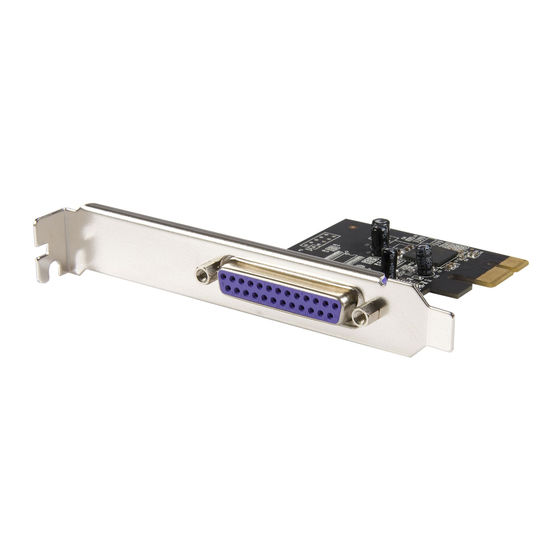

1 Port PCI Express Parallel Adapter Card - EPP/ECP
2 Port PCI Express Parallel Adapter Card - EPP/ECP
PEX1PECP
PEX2PECP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/01/2012

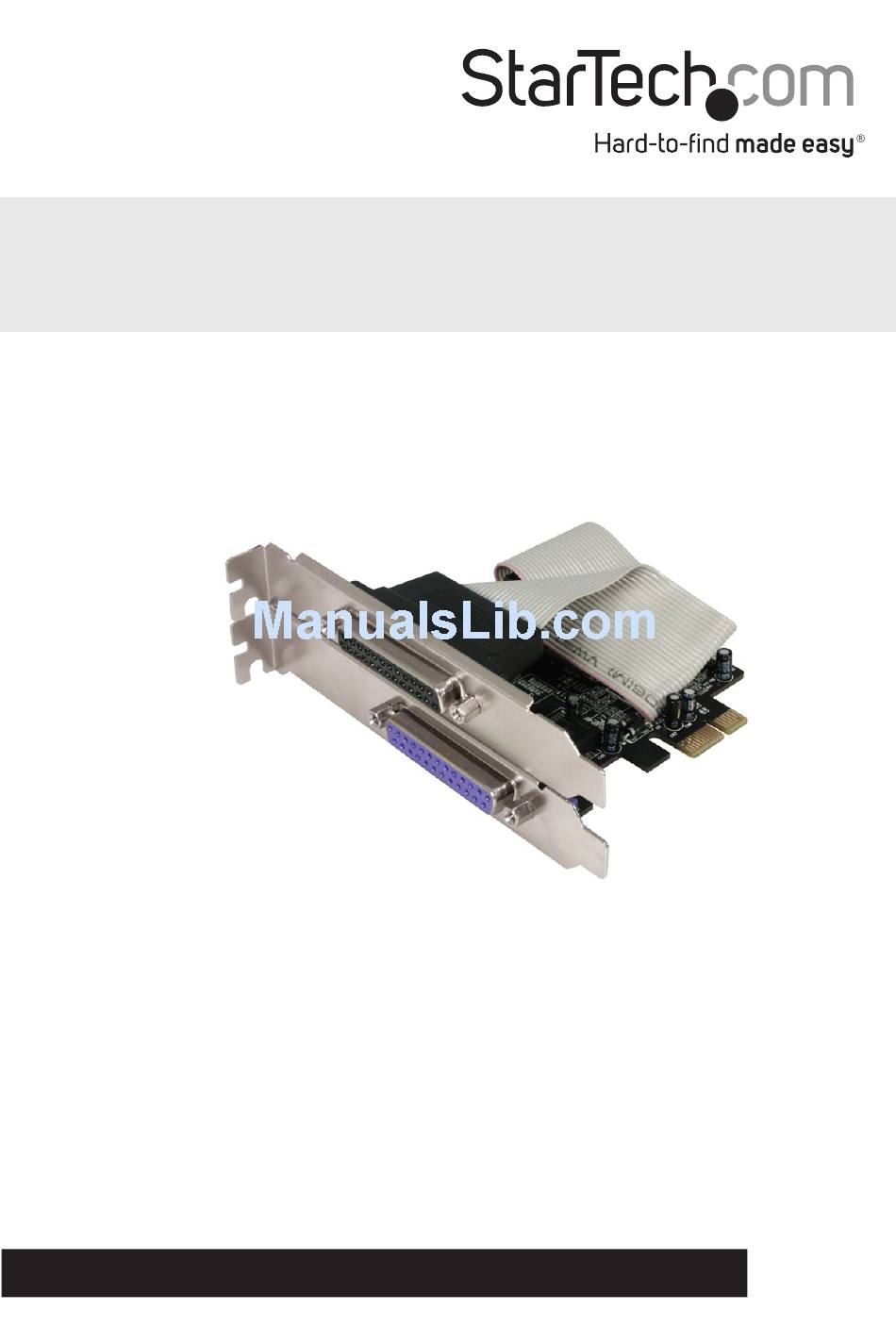

*PEX2PECP shown
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX1PECP
Summary of Contents for StarTech.com PEX1PECP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/01/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features .................................1 Before You Begin ..............................1 Contents .................................1 System Requirements ..........................1 Installation................................2 Installing the drivers (Windows XP) ....................2 Verifying Installation ..........................4 Parallel port address configuration ....................4 Windows 2000 ............................5 Windows 2003 Server ..........................5 Specifications ..............................6 Technical Support ............................7 Warranty Information ............................7 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com PCI Express Parallel Card. This card will allow you to add a DB25 connectivity for optimized performance from your parallel devices, while taking advantage of the speed and power of PCI Express with plug and play connections to devices such as printers, scanners and more. -
Page 5: Installation
Installation 1. Make sure that your system is unplugged and that you are grounded. 2. Remove the cover of your system (see your computer's user manual for details, if necessary) and gently turn your computer onto its side, so that the PCI Express expansion slot openings on the motherboard are facing upwards. - Page 6 Windows Logo Testing, please click on Continue Anyway, followed by Finish. Please note that the software included with PEX1PECP/PEC2PECP has been thoroughly tested for stability and compatibility. 4. Windows will notify you once the driver installation has completed.
-
Page 7: Verifying Installation
Verifying installation To verify that the installation has completed successfully and that the newly installed ports are now available: 1. Right click on My Computer, left-click on Manage. Select Device Manager. 2. Click on the [+] sign next to Ports (COM & LPT). Here, you should see the newly installed parallel port(s) as well as a Multifunction adapter, as shown below: Parallel Port Address configuration Some parallel devices require a specific port designation, in order for the devices to function... -
Page 8: Windows 2000
5. If you receive a notification that the drivers you are installing have not yet passed Windows Logo Testing, please click on Continue Anyway, followed by Finish. Please note that the software included with PEX1PECP/PEC2PECP has been thoroughly tested for stability and compatibility. -
Page 9: Specifications
Specifications Host Interface PCI Express PEX1PECP: 1 x 25 pins parallel connector Connectors PEX2PECP: 2 x 25 pins parallel connector Data Transfer Rate (Max.) 1.5MB/sec MOSCHIP MCS9805CV Chipset MOSCHIP MCS9815CV Windows 95/ 98SE/ ME/ 2000/ XP(32/64bit)/ OS Support Vistal(32/64bit)/ 7(32/64bit)/ Server 2008... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
