Summary of Contents for StarTech.com PEX2S952

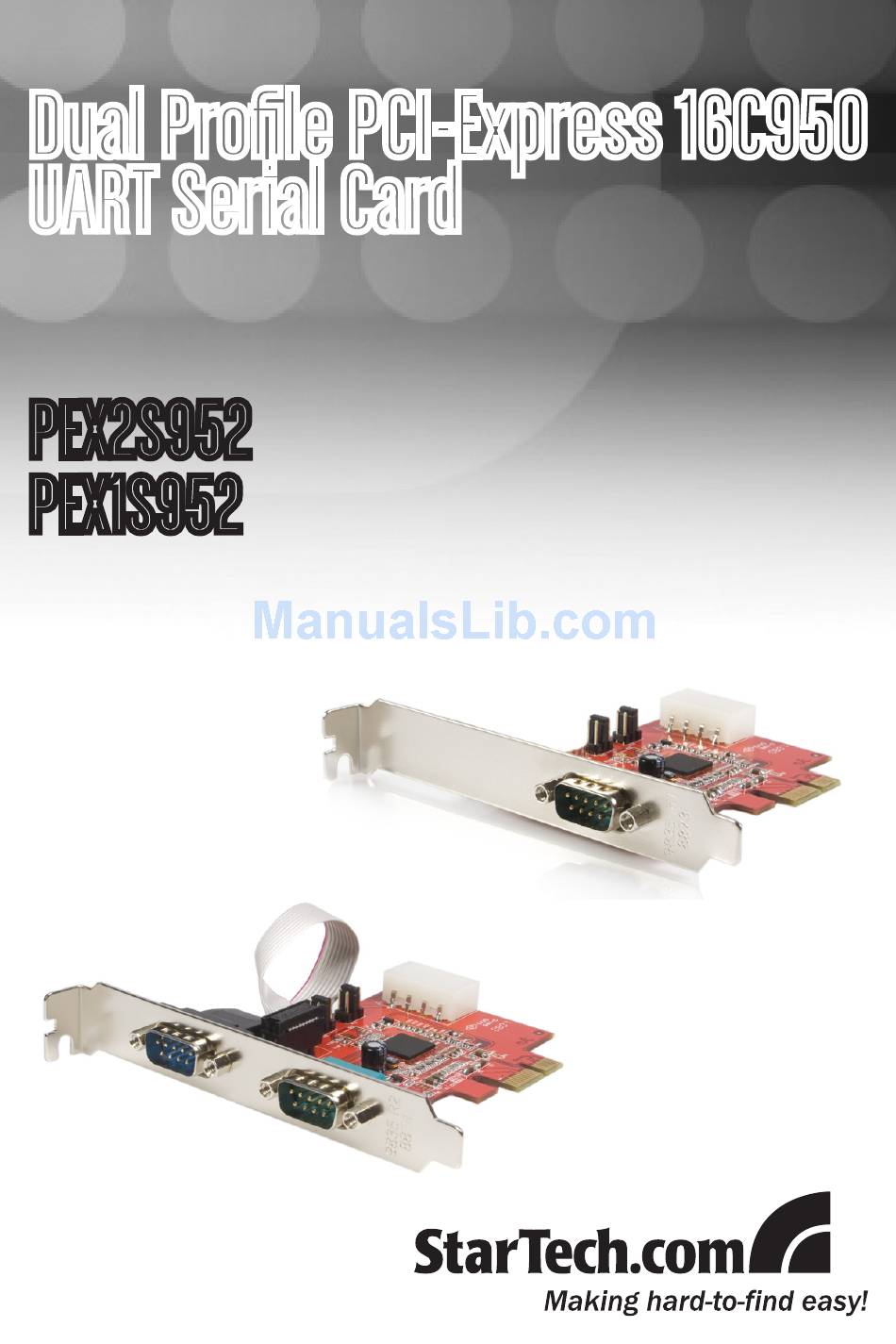

- Page 1 Dual Profile PCI-Express 16C950 UART Serial Card PEX2S952 PEX1S952...
- Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..................1 Features ..................1 Package Contents ...............1 Configuration ................. 2 Hardware Installation ..............2 Installing the Software Drivers ............. 3 Windows 2000 Driver installation ..........3 Windows XP Driver Installation ...........4 Windows Vista Driver Installation ..........5 Specifications ................ -
Page 4: Introduction

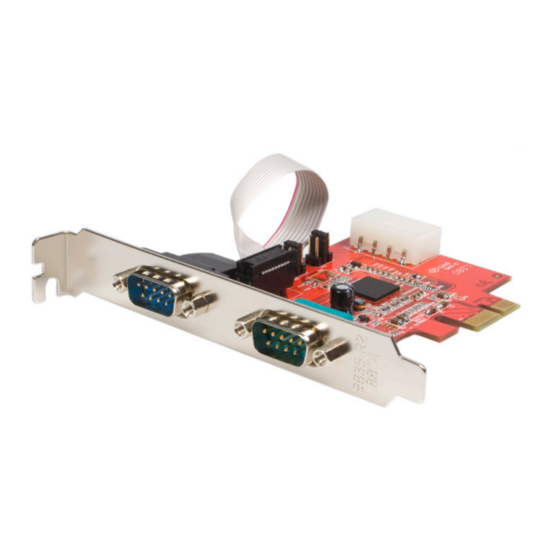

Instruction Manual Introduction Thank you for purchasing a StarTech.com PEX1S952/PEX2S952 Dual Profile PCI Express 16C950 UART Serial Card. This dual profile Serial card converts a PCI Express slot into two available RS-232 (DB9) serial connections, while relying on a native, single-chip design for optimal performance and reliability. -
Page 5: Configuration
Instruction Manual Configuration The card is specially designed to allow power output from the ninth pin of the connector to enable power up of the connected devices without power adapter. The card allows user to set each individual port with 5V, 12V, or RI (no power). -
Page 6: Installing The Software Drivers
Instruction Manual Installing the Software Drivers This section provides information regarding the installation of the Super PCI-E I/O drivers for the following operating systems: Windows 2000 Driver installation At the Add New Hardware Wizard window, click “Next” Select the option “Search for the best driver for your devices (Recom- mended)”... -
Page 7: Windows Xp Driver Installation
Instruction Manual To verify successful installation on Windows 2000: From the main desktop, double-click on My Computer, then double- click on Control Panel, System, and Device Manager. Double-click on either Ports (COM & LPT) or Serial port device options. PCI I/O Board should be displayed when successfully installed. The port is ready to connect new device. -
Page 8: Windows Vista Driver Installation
Instruction Manual To verify successful installation on Windows XP: From the main desktop, double-click on My Computer, then double- click on Control Panel, System, and Device Manager. Double-click on either Ports (COM & LPT) or Serial port device options. PCI I/O Board should be displayed when successfully installed. The port is ready to connect new device. - Page 9 Instruction Manual A notification will appear informing you that Windows has encountered a problem installing the driver software for your device. Click “close” to continue. Click the “Device Manager” click on “Device Manager” to either Ports (COM & LPT) device options. 16C95x Serial Port should be displayed when successfully installed.
-
Page 10: Specifications
Instruction Manual Specifications Specifications PEX2S952 Bus Type PCI Express 3.3V Maximum Data Transfer Rate 460 Kbps Chipset Oxford OXPCIe952 OS Support Windows 2000, XP, Vista™ Stop Bits 1, 1.5, 2 Data Bits 4, 5, 6, 7, 8... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
