StarTech.com PEX1S1P952 User Manual

StarTech.com PEX1S1P952 User Manual

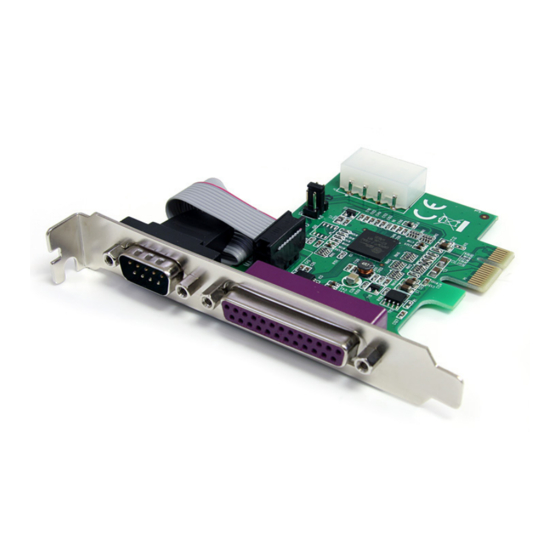

1-port serial, 1-port parallel pci express combo card

Advertisement

Quick Links

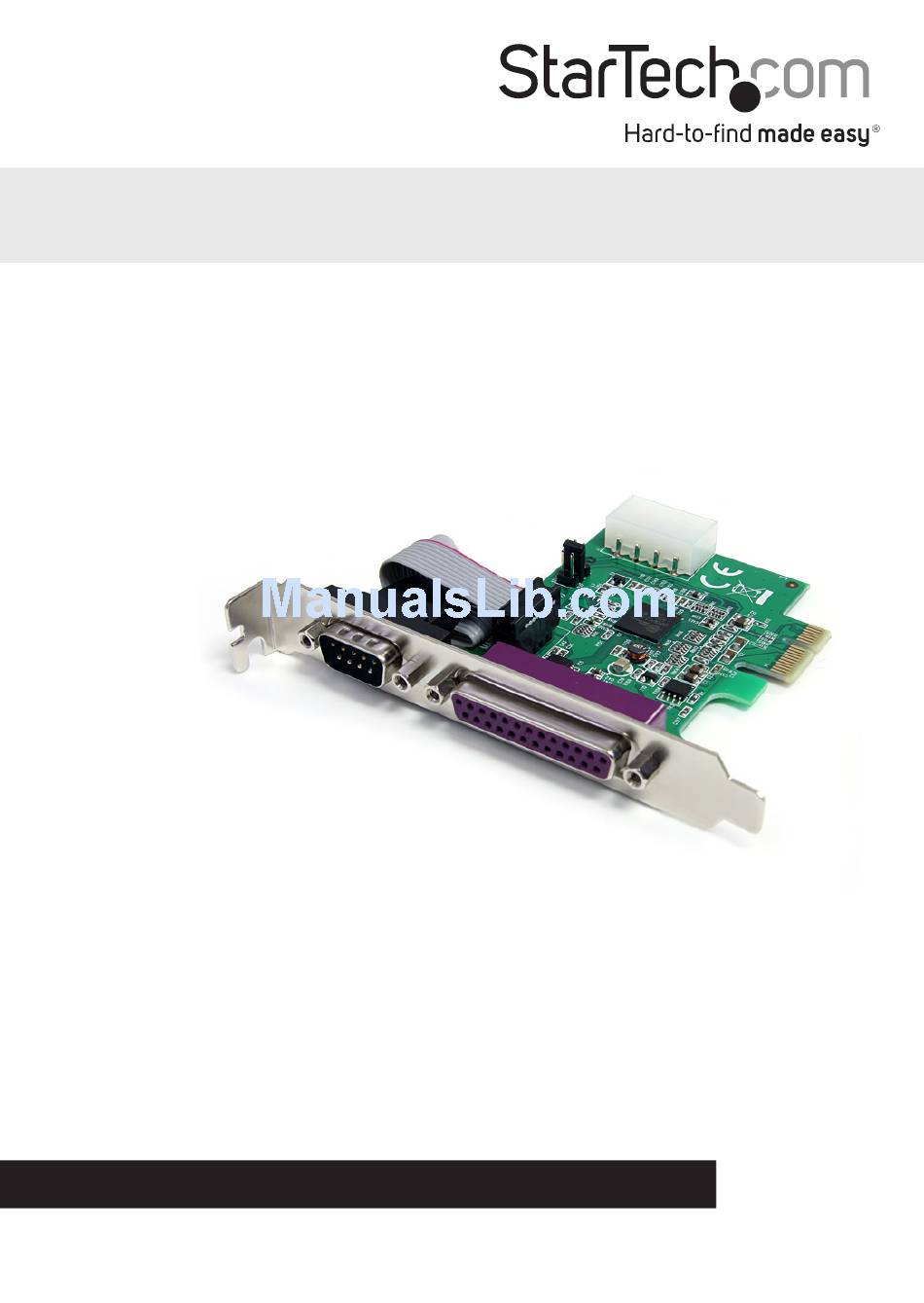

1-Port Serial, 1-Port Parallel PCI Express
Combo Card
PEX1S1P952
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/30/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEX1S1P952 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com PEX1S1P952

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/30/2011...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Setting Power Mode (Serial Port only) ....................2 Hardware Installation ..........................3 Driver Installation ............................3 Verifying Installation ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual...
  • Page 4: Introduction

    Introduction The PEX1S1P952 ‘1S1P’ Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express (PCIe) slot into one RS232 (DB9) serial, and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to...
  • Page 5: Installation

    WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component.
  • Page 6: Hardware Installation

    Hardware Installation 1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices. 2.
  • Page 7: Verifying Installation

    Windows Vista/7/Server 2008 R2 1. When the Found New Hardware window appears on the screen, click on the “Locate and install drivers software (recommended)” option. If prompted to search online, select the “Don’t search online” option. 2. When prompted to insert the disc, insert the Driver CD that came with the card, into your CD/DVD drive and Windows will automatically proceed to search the CD.
  • Page 8: Specifications

    Specifications Host Interface PCI Express revision 1.1 Form Factor Full / Low Profile Chipset ID PLX OXPCIe952 1 x DB9 male External Connectors 1 x DB25 female Internal Connectors 1 x LP4 Molex male Supported Protocols / Modes SPP / EPP / ECP, RS232 Serial: 115.2 Kbps Maximum Data Transfer Rate Parallel: 1.5 Mbps...
  • Page 9: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
