- Page 1 PEX1394B3LP Instruction Manual PCI Express FireWire Adapter Card 3-Port 2b/1a Low Profile IEEE1394 PCI Express FireWire Adapter Card...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Internal View ................2 External View ................2 Installation ............... 3 Hardware Installation ..............3 Driver Installation .................4 Verifying Installation ..............4 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction The StarTech.com PEX1394B3LP 3-Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, but also includes an optional full-size bracket for installation in a standard-sized PC cases. The card adds two IEEE1394b... -
Page 5: Internal View

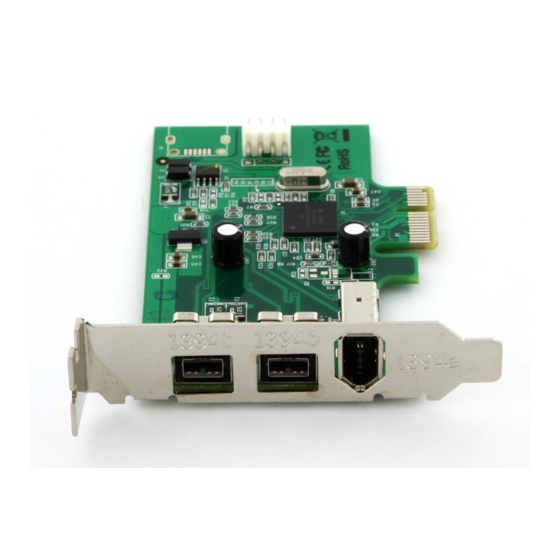

Internal View SP4 Floppy Power connector External View 6-pin FireWire400 connector 9-pin FireWire800 connector... -
Page 6: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap... -
Page 7: Driver Installation
Driver Installation Windows 2000/XP/Vista/7, Mac OS X, Linux No driver installation is required for these operating systems, as this adapter card is natively supported, so the drivers are already installed. Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. -
Page 8: Specifications
Specifications PCI Express rev. 1.1 Bus Interface OHCI 1.1 2 x 9-pin FireWire External Connectors 1 x 6-pin FireWire Internal Connectors 1 x SP4 floppy power Chipset ID LSI LW643 Maximum Data Transfer Rate FireWire800: 800Mbps Operating Temperature 0°C to 70°C (32°F to 158°C) Storage Temperature -20°C to 90°C (-4°F to 194°C) Humidity... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
