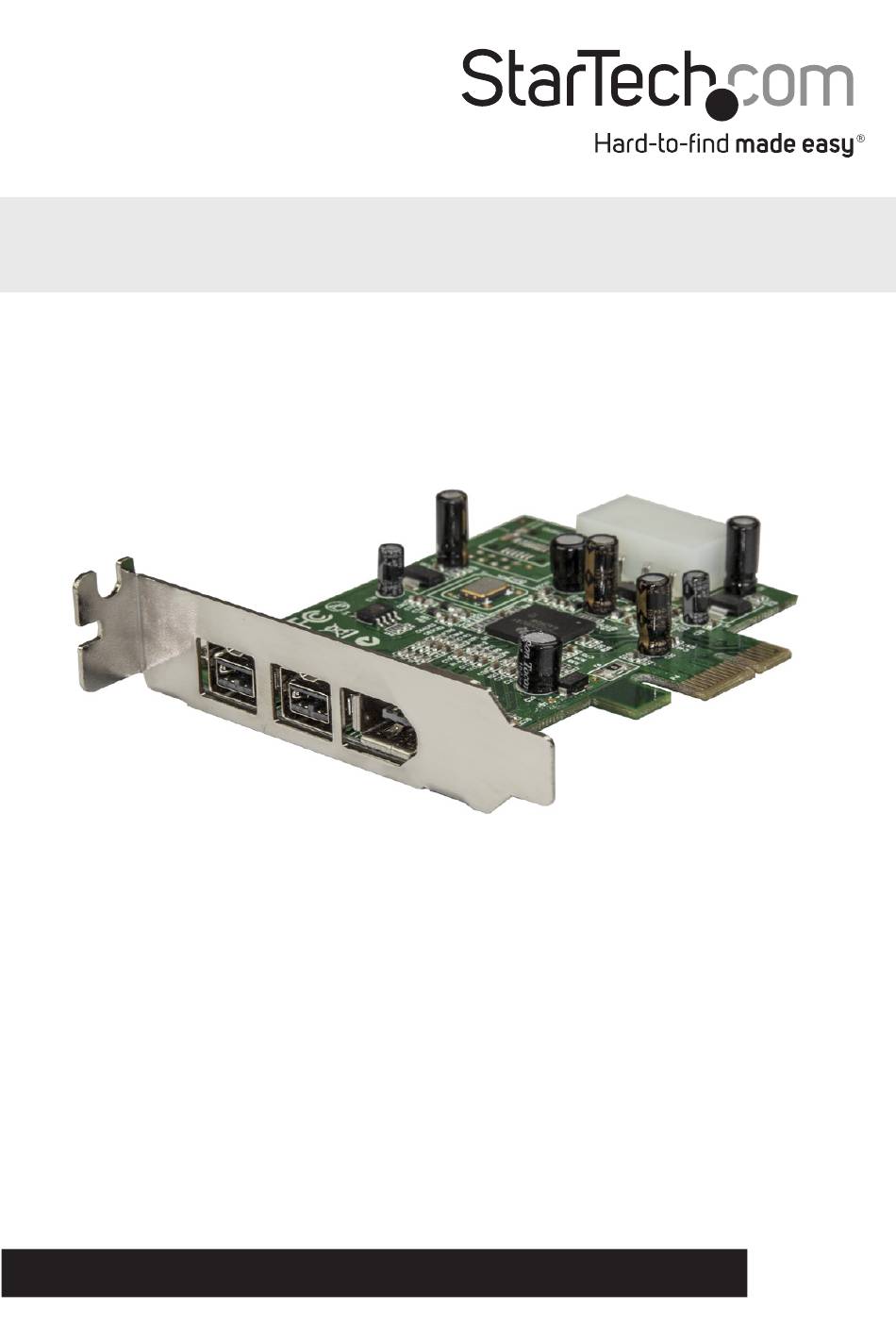

3 Port Low Profile 1394 PCI Express FireWire Card
PEX1394B3LP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/03/2017
Advertisement
Table of Contents
Related Manuals for StarTech.com 8STPEX1394B3LP
Summary of Contents for StarTech.com 8STPEX1394B3LP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/03/2017...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ..........................1 Packaging Contents ......................1 System Requirements ......................1 Internal View ........................2 External View ........................2 Installation ..........................3 Hardware Installation .......................3 Driver Installation.......................4 Verifying Installation ......................4 Specifications ..........................5 Technical Support ........................6 Warranty Information ......................6 Instruction Manual... -
Page 4: Introduction

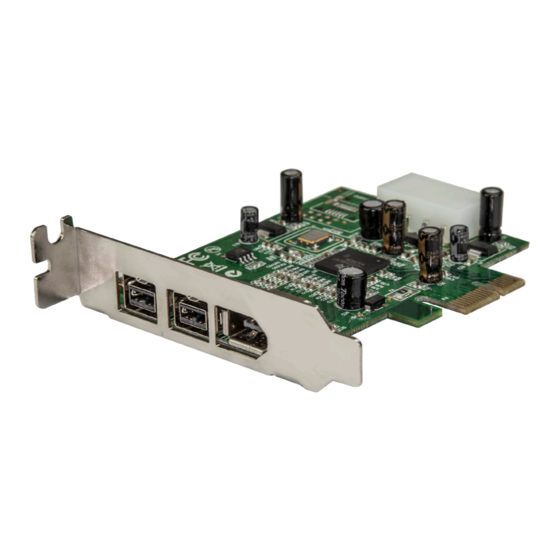

Introduction The StarTech.com PEX1394B3LP 3-Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, but also includes an optional full-size bracket for installation in a standard-sized PC cases. The card adds two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port with a native (single chip) PCI Express chipset to provide faster, more reliable and cost-effective performance. -
Page 5: Internal View
Internal View LP4 power connector External View 9-pin 6-pin FireWire800 FireWire400 connector connector Instruction Manual... -
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
Driver Installation Windows 2000/XP/Vista/7, Mac OS X, Linux No driver installation is required for these operating systems, as this adapter card is natively supported, so the drivers are already installed. Verifying Installation Windows 2000/XP/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. -
Page 8: Specifications
Specifications PCI Express rev. 1.1 Bus Interface OHCI 1.1 2 x 9-pin FireWire External Connectors 1 x 6-pin FireWire Internal Connectors 1 x SP4 floppy power Chipset ID Texas Instruments - XIO2213B Maximum Data Transfer Rate FireWire800: 800Mbps Operating Temperature 0°C to 70°C (32°F to 158°C) Storage Temperature -20°C to 90°C (-4°F to 194°C) -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
